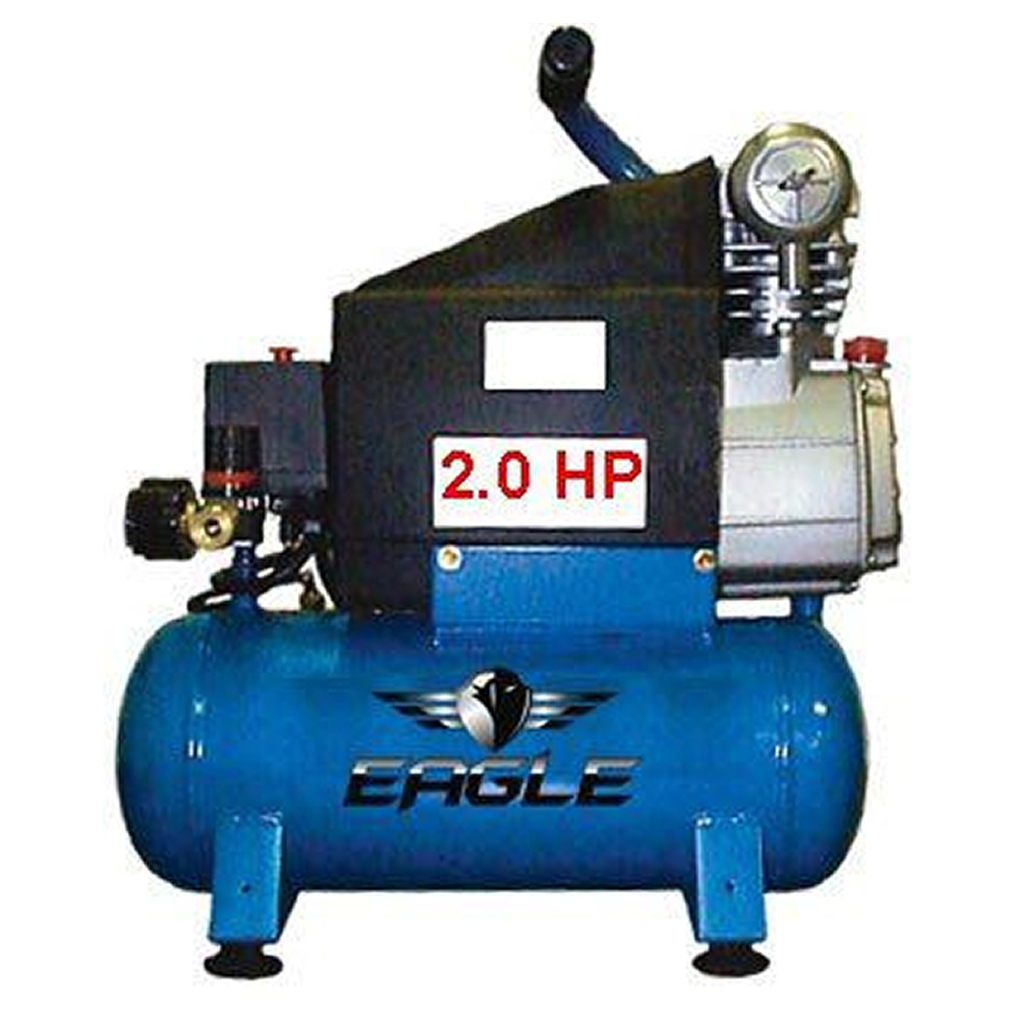

2 Horse Power Hot Dog Eagle Air Compressor Peak Oil Lube
2 Horse Power Hot Dog Eagle Air Compressor Peak Oil Lube
HD1518L
Regular price
$345.00 USD
Regular price
$425.00 USD
Sale price
$345.00 USD
Unit price
per
LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED ALTHOUGH THIS ITEM QUALIFIES FOR FREE SHIPPING
THIS ITEM SHIPS TRUCKLINE
Features:
- Rugged compressor with cast iron cylinder
- Individual and removable cylinders for smoother and cooler operation
- 1720 RPM running speed - quiet operation and longer life
- Thermally protected 110 volt electric motor CSA/US approved
- 3 gallon tank - 125 PSI rating
- Metal air filters with "Auto Drop" feature
- High efficiency reed valves for maximum performance
- Outlet control regulator with quick connectors
- TMI27500
-
CFM / PSI 3.6 CFM @ 100 PSI
HORSEPOWER 2.0
MAX RATED PSI 125
AIR TANK CAPACITY 2.6
ELECTRIC MOTOR 115V
PHASE 1
MOTOR RPM 1720
BARE COMP. RPM 1720
AMP DRAW 12.1/11.9
PRESSURE SWITCH 95-120
LENGTH (IN.) 20
WIDTH (IN.) 12
HEIGHT (IN.) 24
WEIGHT (LBS.) 51
Item | Description | Part Number |
Quantity |
1 | Cylinder Head | 101001 | 1 |
2 | Cylinder Head Gasket | 211001 | 1 |
3 | In Valve Seat | 104001 | 1 |
4 | In & Outlet Valve Seat Gasket | 212001 | 1 |
5 | In & Outlet Valve Plate | 125001 | 2 |
6 | In & Outlet Spring Plate | 127001 | 2 |
8 | Bolt - Cylinder Head | 352087 | 4 |
9 | Discharge Elbow | 151403 | 1 |
10 | Discharge Tube Assembly | 230092S | 1 |
11 | Valve Seat To Cylinder Gasket | 213001 | 1 |
12 | Cylinder | 201013 | 1 |
13 | Piston | 203002 | 1 |
14 | Compression/Oil Ring Set | 206002S | 2 |
15 | Piston Pin w/Snap Rings | 204002S | 1 |
16 | Cylinder To Crankcase Gasket | 214001 | 1 |
17 | Double Head Screw | 358001S | 2 |
18 | Valve Plate Screw | 126001 | 4 |
19 | Crankcase Cover Gasket | 215001 | 1 |
20 | Crankshaft | 302001 | 1 |
21 | Crankcase Cover | 304003 | 1 |
22 | Connecting Rod | 316001 | 1 |
23 | Oil Gauge W/ Gasket | 321001S | 1 |
24 | Oil Drain Plug | 360001 | 1 |
25 | Motor Cover | 433001 | 1 |
26 | Motor Cover Bolt | 352091 | 9 |
27 | Air Filter Ass'Y | 170006 | 1 |
28 | Oil Fill Plug | 323103 | 1 |
29 | Motor / Crankcase | 251215 | 1 |
30 | Cooling Fan | 431001 | 1 |
31 | Air Tank | 401014 | 1 |
32 | Pressure Gauge-Regulator | 411005 | 1 |
33 | Pressure Regulator | 410001 | 1 |
34 | Rubber Handle | 435002 | 1 |
35 | Tank Foot Ass'Y | 434002S | 4 |
36 | Drain Cock | 406003 | 1 |
37 | Check Valve | 409008 | 1 |
38 | Pressure Gauge-Tank | 411006 | 1 |
39 | Pressure Switch | 412021 | 1 |
40 | Nipple | 441001 | 1 |
41 | Unloading Tube Ass'Y | 240080S | 1 |
42 | Wiring Harnass Pr. Switch-Mot. | 453077 | 1 |
43 | Power Cord W/ Plug | 452005 | 1 |
44 | Safety Valve | 407001 | 1 |
45 | Quick Coupler | 447013 | 1 |
46 | Unloading Tube Elbow | 151001 | 1 |
47 | Snap Ring | 205001 | 2 |
48 | Spring Washer | 382011 | 8 |
49 | Set Nut | 371005 | 2 |
50 | Spring Washer | 382005 | 2 |
51 | Motor Rear Cover | 305001 | 1 |
52 | Oil Control Ring | 207002 | 1 |
53 | Oil Gauge Gasket | 217001 | 1 |
54 | Air Filter (Element Only) | 171002 | 1 |
55 | Outlet Valve Seat | 114001 | 1 |
Outlet Valve Seat Ass'Y | 124001 | 1 | |
Eagle Oil | EAOIL10 | 1 |
