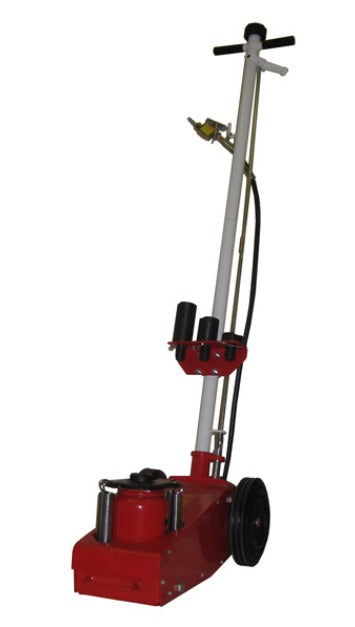

22 Ton Air Hyrdaulic Service Jack

• Service jack can be operated manually or with the assistance of an air source to save labor and increase lifting speeds
• Extreme duty, wide stance steel frame with reinforced steel side plates increase stability
• Mounted on 8" / 200mm hard rubber wheels for easy mobility
• Minimum air source requirements are 90 - 145 PSI / 6.2 - bar or a 3HP air compressor
• Comes with 4 saddle adaptors
• Meets or exceeds ANSI / ASME specifications
• Minimum saddle height: 8-7/8" / 225mm
• Maximum saddle height: 20-1/2" / 520mm
• Ram travel length: 17" / 432mm
• Screw extension: 3-1/2" / 90mm
• Dimensions: 21-1/4"L X 12-3/4"W X 56-1/4" / 540L X 320W X 1430H mm
• Net weight: 84 Lb / 38 kg

TMI43895
