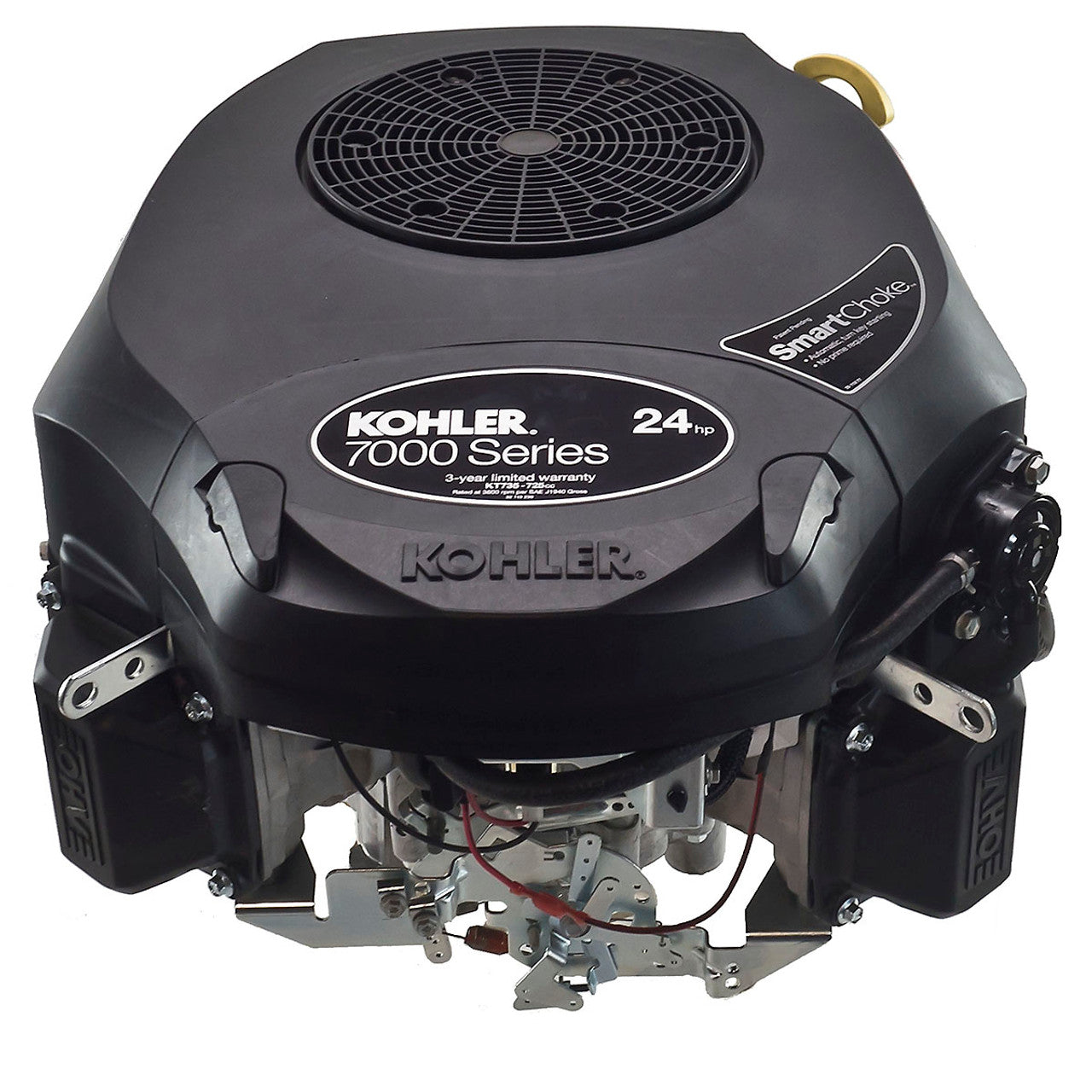

300391 24 HP Vertical Engine Kohler

24 HP Vertical Engine Kohler

• Brand Kohler
• Model KT735-3094
• Engine Family 7000 series
• Power 24 HP
• Torque 40.5 lb-ft @2400 RPM
• Bore/Stoke 3.3" (83mm)/2.6" (67mm)
• Disp. 44.2 cu in (725 cc)
• Oil Capacity 2.0 US qt. (1.9 L0
• Speed Governor set to 3300 RPM max
• Start Electric

• Fuel Tank None
• Shaft 1" (25.4 mm) dia. x 3.16" (80.26 mm) w/0.25" Keyway tapped 7/16"-20TPI

TMI47500
