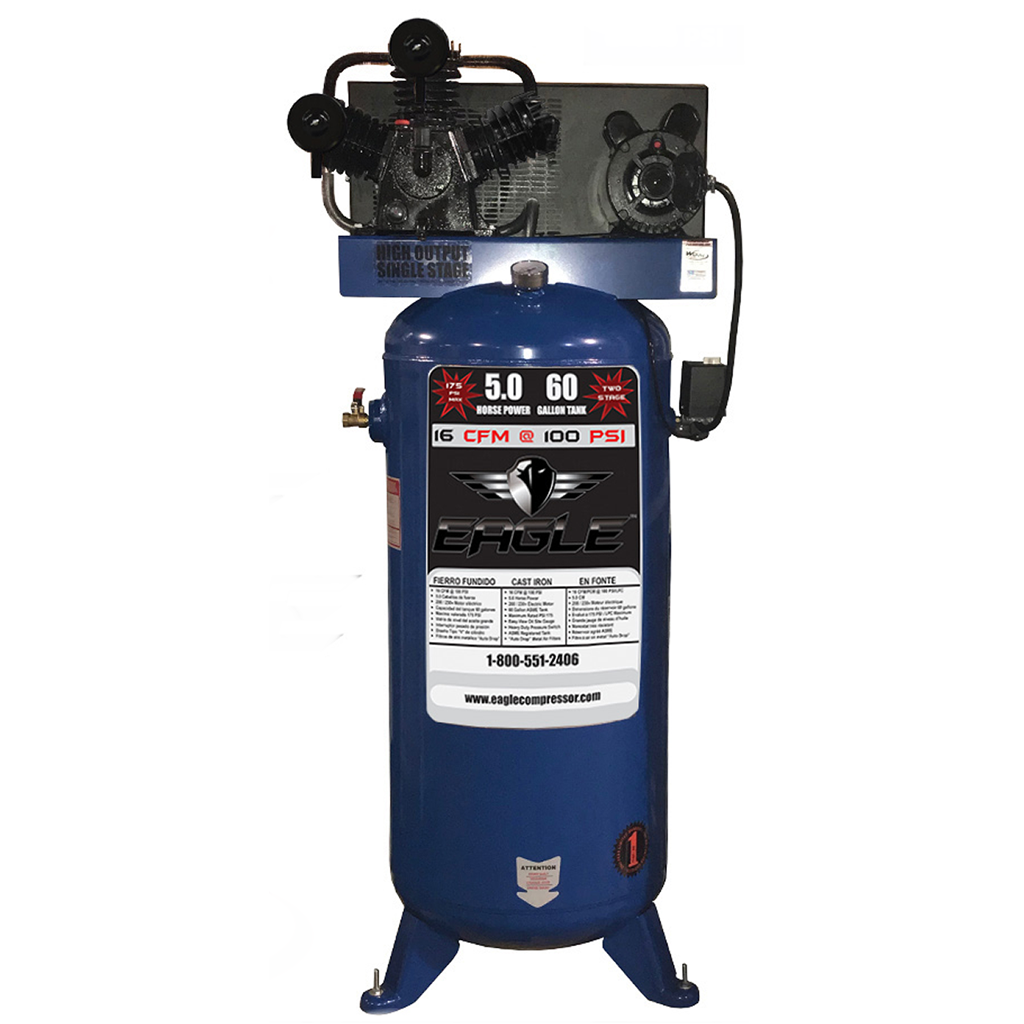

5 Horse Power 60 Gallon Eagle Air Compressor
5160V2
Regular price
$2,400.00
$1,150.00
Sale
THIS ITEM SHIPS TRUCKLINE
A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!
Features:
-
Rugged compressor with cast iron cylinders
- "V" design minimizes vibration, improves cooling and extends compressor life
- Individual and removable cylinders for smoother and cooler operation
- No magnetic starter required
- Heavy duty pressure switch has on/off control
- Thermally protected 5 HP 208/230 volt electric motor
- Metal air filters with "auto drop" feature
- Convenient oil drain on front of unit
- 60 gallon ASME registered tank, 200 PSIG rating
- Easy view oil sight gauge
- High efficiency reed valves for maximum performance
- Efficient heat removal from fly wheel for cooler running and longer life
- Sturdy metal belt guard
- Outlet valve included
- 5.0 HP
- 16 CFM @ 100 PSI
- 150 Maximum Rated PSI
- 60 Gallon Receiver Capacity
- 208/230V Motor
- 31" x 23" x 66"
- 246.5 LBS
- TMI99900
| Item | Description | Product Code | Price |
| 1 | Compressor w/ Flywheel | HPT03A-TS | $ |
| 2 | Discharge Tube | TU-23-AL | $57.00 |
| Flare Fitting/Elbow | |||
| 3 | Pressure Gauge (Tank) | PG200-2.5R | $12.00 |
| 4 | Outlet Valve | BV1/2MF | $ |
| 5 | Air Receiver | 60V20X48BR-B | $450.00 |
| 6 | Drain Cock | 240-B | $12.00 |
| 7 | V-Belt | 4L530 | $12.00 |
| 8 | Belt Guard | BGC | $ |
| 9 | Motor - 1 Phase, 208/230Volt | EM05.0-36-10 | $416.56 |
| 10 | Check Valve | CTF1/2X1/2 | $28.00 |
| 11 | Pressure Switch | 21UCBDB-CH175 | $ |
| 12 | Pulley - Motor | MA27X7/8 | $ |
| 13 | Hub or Bushing | ||
| 14 | Unloader Tube w/ Fittings | TU1/4BLK | $12.00 |
| 15 | Safety Valve | PSV1/4-200 | $12.00 |
| Eagle Compressor Oil | EAOIL10 | $7.70 |
