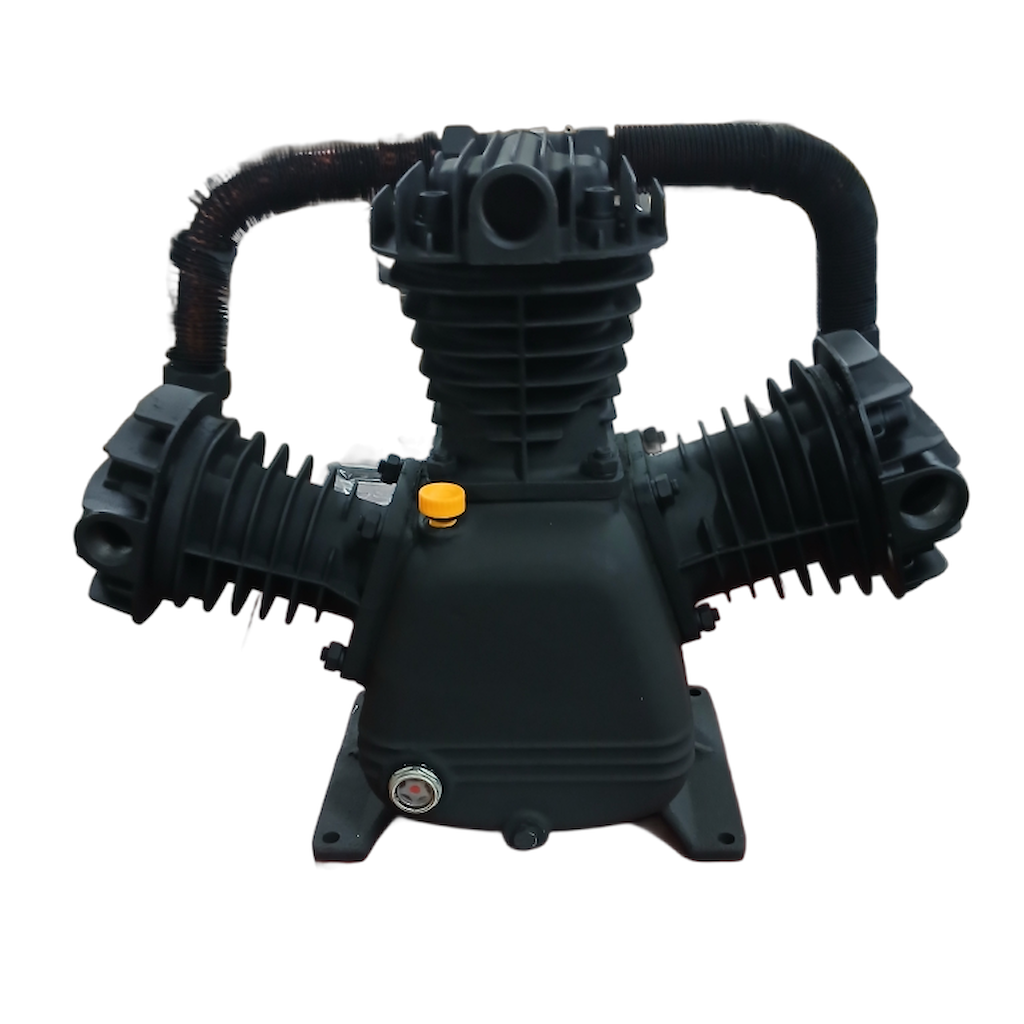

    Compressor Pump CC3090TS AC

    Compressor Pump CC3090TS AC

    CC3090TS-AC

    $600.00 USD
    $1,199.95 USD $600.00 USD
    Sale Sold out
    Item Name Part Number Quantity
    1H Head Bolt (High Pressure Cyl.) CC-90-01H 4
    1L Head Bolt (Low Pressure Cyl.) CC-90-01L 8
    2H Head Bolt Lock Washer CC-90-02H 4
    2L Head Bolt Lock Washer CC-90-02L 8
    3H Cylinder Head (High Pressure Cyl. - Iron) CC-90-03H 2
    3L Cylinder Head (Low Pressure Cyl. - Aluminum) CC-90-03L 1
    4 Air Filter Assembly CC-90-04 2
    4A Air Filter Element Auto Type CC-90-04A
    4B Air Filter Element Foam Ring CC-90-04B
    5 3-Way Connector (Center Head) CC-90-05 1
    6 Discharge Elbow (Right and Left Heads) CC-90-06 2
    7 Crossover Tube CC-90-07 2
    8H Head Gasket (High Pressure Cyl.) CC-90-08H 1
    8L Head Gasket (Low Pressure Cyl.) CC-90-08L 2
    9H Valve Plate Screw (High Pressure Cyl.) CC-90-09H 2
    9L Valve Plate Screw (Low Pressure Cyl.) CC-90-09L 4
    10 Valve Plate Screw CC-90-10 2
    11H Discharge Valve Reed (High Pressure Cyl.) CC-90-11H 1
    11L Discharge Valve Reed (Low Pressure Cyl.) CC-90-11L 2
    12H Discharge Lift Limiter (High Pressure Cyl.) CC-90-12H 1
    12L Discharge Lift Limiter (Low Pressure Cyl.) CC-90-12L 2
    13H Valve Plate (High Pressure Cyl.) CC-90-13H 1
    13L Valve Plate (Low Pressure Cyl.) CC-90-13L 2
    14H Intake Valve Reed (High Pressure Cyl.) CC-90-14H 1
    14L Intake Valve Reed (Low Pressure Cyl.) CC-90-14L 2
    15H Intake Lift Limiter (High Pressure Cyl.) CC-90-15H 1
    15L Intake Lift Limiter (Low Pressure Cyl) CC-90-15L 2
    16H Intake Reed Guide Pin (High Pressure Cyl.) CC-90-16H 2
    16L Intake Reed Guide Pin (Low Pressure Cyl.) CC-90-16L 4
    17H Valve Plate Gasket (High Pressure Cyl.) CC-90-17H 1
    17L Valve Plate Gasket (Low Pressure Cyl.) CC-90-17L 2
    18 Cylinder Stud Bolt CC-90-18 12
    19 Cylinder/Flywheel Washer CC-90-19 12
    20H Cylinder 65 CM (High Pressure Cyl.) CC-90-20H 1
    20L Cylinder 90 CM (Low Pressure Cyl.) CC-90-20L 2
    21H Cylinder-Crankcase Gasket (High Pressure Cyl.) CC-90-21H 1
    21L Cylinder-Crankcase Gasket (Low Pressure Cyl.) CC-90-21L 2
    22H Compressor Ring 65 CM (High Pressure Cyl.) CC-90-22H 2
    22L Compressor Ring 90 CM (Low Pressure Cyl.) CC-90-22L 4
    23H Oil Ring 65 CM (High Pressure Cyl.) CC-90-23H 1
    23L Oil Ring 90 CM (Low Pressure Cyl.) CC-90-23L 2
    24H Snap Ring 65 CM (High Pressure Cyl.) CC-90-24H 2
    24L Snap Ring 90 CM (Low Pressure Cyl.) CC-90-24L 4
    25H Piston 65 CM (High Pressure Cyl.) CC-90-25H 1
    25L Piston 90 CM (Low Pressure Cyl.) CC-90-25L 2
    26H Piston Pin 65 CM (High Pressure Cyl.)  CC-90-26H 1
    26L Piston Pin 90 CM (Low Pressure Cyl.) CC-90-26L 2
    27H Connecting Rod (High Pressure Cyl.) CC-90-27H 1
    27L Connecting Rod (Low Pressure Cyl.) CC-90-27L 2
    28L Connecting Rod Splasher CC-90-28L 1
    29L Splasher Washer CC-90-29L 1
    30L Splasher Screw CC-90-30L 1
    31 Flywheel Bolt CC-90-31 1
    32 Flywheel Washer CC-90-32 1
    33 Flywheel CC-90-33 1
    34 Oil Breather CC-90-34 1
    35 Crankcase Cover CC-90-35 1
    36 Crankcase Cover Gasket CC-90-36 1
    37 Oil Seal CC-90-37 1
    38 Front Bearing CC-90-38 1
    39 Crankshaft CC-90-39 1
    40 Oil Fill Cap CC-90-40 1
    41 Oil Fill Cap O-Ring CC-90-41 1
    42 Crankcase CC-90-42 1
    43 Rear Bearing CC-90-43 1
    44 Crankcase Cover Bolt CC-90-44 4
    45 Crankcase Cover Washer CC-90-45 4
    46 Oil Sight Glass O-Ring CC-90-46 1
    47 Oil Sight Glass CC-90-47 1
    48 Oil Sight Glass Screw CC-90-48 4
    49 Flywheel Key CC-90-49 1
    50 After Cooler CC-90-50 1
    51 Safety Valve 20 PSI CC-90-51 1
    52 Elbow Connector w/ Gasket CC-90-52 1
    53 Cylinder Bolt Nut CC-90-53 12
    54H Valve Repair Kit (High Pressure Cyl.) CC-90-54H
    54L Valve Repair Kit (Low Pressure Cyl.) CC-90-54L
    55H Ring Repair Kit 65 CM (High Pressure Cyl.) CC-90-55H
    55L Ring Repair Kit 90 CM (Low Pressure Cyl.) CC-90-55L
