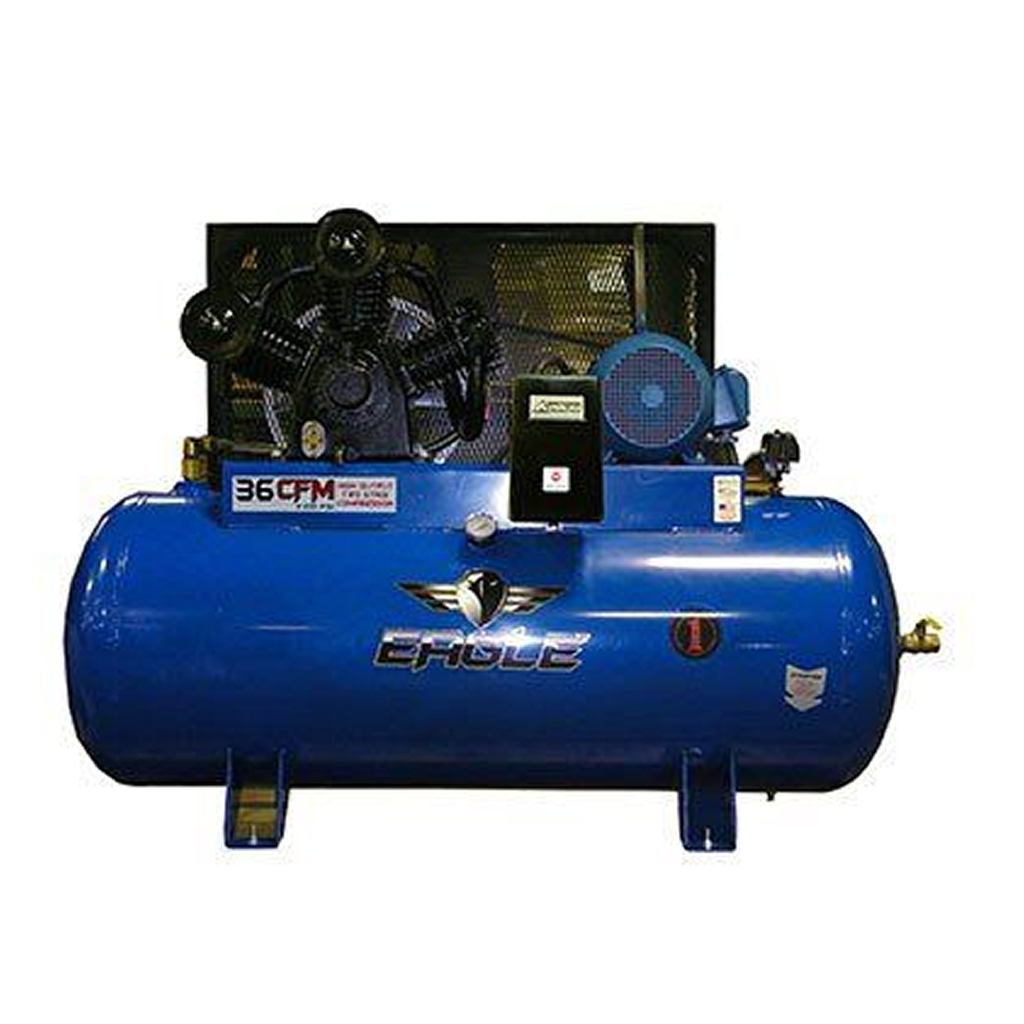

Eagle 10 Horsepower 120 Gallon Air Compressor Two Stage

Eagle 10 Horsepower 120 Gallon Air Compressor Two Stage

103120H2-CS460

$4,257.00 USD
$5,993.45 USD $4,257.00 USD
Sale Sold out


LIFT GATE FEE OR RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

THIS ITEM SHIPS TRUCKLINE



Features:

  • Rugged compressor with cast iron cylinders
  • "V" design minimizes vibration, improves cooling and extends compressor life
  • Individual and removable cylinders for smoother and cooler operation
  • Heavy duty pressure switch has on/off control
  • Thermally protected 10 HP three phase 208/230/460 volt or three phase 575 volt electric motors
  • Metal air filters with "auto drop" feature
  • Convenient oil drain on front of unit
  • 120 gallon ASME registered tank, 200 PSI rating
  • Easy view oil sight gauge
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from pulley-fan for cooler running and longer life
  • Sturdy metal belt guard
  • Outlet valve included
  • With Combo Switch
  • 36 CFM @ 100 PSI
  • 200 Maximum Rated PSI
  • 460V Motor
  • TMI365000
  • 73 x 27 x 50
  • 722 LBS

Item Description  Product Code
1 Compressor w/ Flywheel HPT10A
2 Discharge Tube (2.5ft) ASSY TU-11.5-BR
3 Pressure Gauge PG200-2.5R
4 Outlet Valve BV1MF
5 Air Receiver (tank) 120HE24X68-B
6 Drain Cock -Assembly 240-B
7 V-Belt B89
8 Belt Guard BG120GAL
9 Motor - 1 Phase, 208/230V EM10.0-18-30
10 Check Valve P1010S-T
11 Combo Switch CS-10/16A
12 Pulley - Motor 2B9.4PD
13 Hub or Bushing SK13/8
14 Unloader Tube  TU-1/4-CU
  **Fittings Required for TU-1/4CU 68-4A
15 Safety Valve PSV1/4-200
Eagle Compressor Oil EAOIL10

1st Stage 2nd Stage
Item Description Qty Part # Qty Part #
1 Intake Filter Assembly 2 51124-5600 N/A N/A
2 Cylinder Head 2 52133-0101 1 52133-0101
3 Lift Limiter - Discharge Valve Plate 8 51121-3102 2 51121-3102
4 Valve Seat 2 52133-2101 1 52133-2101
5 Valve Seat to Head Gasket 2 52133-2105 1 52133-2105
6 Discharge Valve Plate 8 51121-2103 2 51121-2103
7 Intake Valve Plate 2 52133-2103 1 52133-2103
8 Valve Seat to Cylinder Gasket 2 52133-2104 1 52133-2104
9 Piston 2 52133-5101 1 51174-5201
10 Piston Pin C/W Snap Rings 2 52133-5112 1 51174-5212
11 Piston Pin Bushing N/A N/A 1 52174-5208
12 Connecting Rod C/W Dipper 2 52133-5120 1 52174-5220
13 Connecting Rod Bearing (Pair) 2 51133-5109 1 51133-5109
14 Cylinder 2 52133-4101 1 52174-4201
15 Oil Filler Cap 1 51124-4719 N/A N/A
16 Cylinder to Crankcase Gasket 2 52133-4103 1 52133-4103
17 Oil Sight Glass C/W Gasket 1 51124-4770 N/A N/A
18 Crankcase 1 52174-4701 N/A N/A
19 Crankshaft 1 52174-4601 N/A N/A
20 Front Bearing 1 83501-6309 N/A N/A
21 Rear Bearing 1 83501-6308 N/A N/A
22 Crankcase - Rear Bearing Housing Gasket 1 52174-4704 N/A N/A
23 Rear Bearing Housing 1 52174-4703 N/A N/A
24 Oil Seal 1 52174-4708 N/A N/A
25 Crankcase Breather 1 51111-4761 N/A N/A
26 Flywheel C/W Fasteners 1 52174-6601 N/A N/A
27 Front Bearing Housing N/A N/A N/A N/A
28 Crankcase - Front Bearing Housing Gasket N/A N/A N/A N/A
29 Connecting (Interstage) Tubing 1 52134-7710 1 52174-7720
Misc. 1/4" Street Elbow (Oil Drain) 1 STREL1/4 N/A N/A
Misc. Rear Bearing Cover Gasket 1 51134-4707 N/A N/A
Misc. Rear Bearing Cover 1 51134-4706 N/A N/A
Eagle Oil (2 Litres or 68oz) 1 EAOIL10 N/A N/A
A Intake Filter Element Kit Includes: 2 101000-310 N/A N/A
- 1x Intake Filter Element
B Valve Repair Kit Includes: 2 101000-195 1 101000-195
-Valve Seat to Head Gasket (Item 5)
-4x Outlet Valve Plates (Item 6)
-Intake Valve Plate (Item 7)
-6x Valve Plate Screws
-Valve Seat to Cylinder Gasket (Item 8)
C Ring Repair Kit Includes: 2 101000-295 1 101000-280
-Valve Seat to Head Gasket (Item 5)
-Valve Seat to Cylinder Gasket (Item 8)
-2x Compression Rings
-Oil Control Ring 2x
 1x
-Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not shown) 2 52133-2100 1 52133-2100
