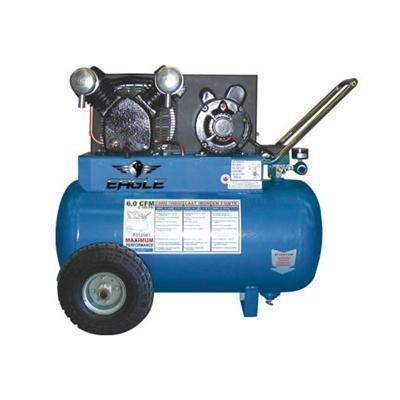

Eagle 2 Horse Power 20 Gallon Portable Air Compressor

P3120H1

Regular price $999.00 $799.00 Sale

Eagle Logo

Features

  • V-Design Minimizes Vibration, Improves Cooling, and Extends Compressor Life
  • Individual and Removable Cylinders for Smoother and Cooler Operation
  • Thermally Protected 2 HP 110V Electric Motor CSA/US Approved
  • 24 Gallon ASME Registered Tank, 150 PSIG Rating
  • Sturdy Tires for Easy Handling and Maneuverability
  • Convenient Oil Drain on Front of Unit
  • Efficient Heat Removal from Pulley Fan for Cooler Running & Longer Life
  • Sturdy Metal Belt Guard
  • CFM / PSI: 6.0 CFM @ 100 PSI
  • HorsePower: 2.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 20
  • Electric Motor: 110v
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 15
  • Pressure Switch: 95-125
  • Cast Iron Cylinders
  • Factory Set Pressure Switch
  • Auto Drop Metal Air Filters
  • Easy View Oil Sight Gauge
  • Powder Coated Tanks
  • High Effienciency Reed Valves
  • 1 Year Factory Warranty
  • TMI48500

DIM:  40" x 18" x 30"

Eagle 2 HP 20 Gallon (P3120H1) Portable Air Compressor Technical Drawing
 Item Description Product Code Price
1 Compressor w/ Flywheel PV01A $240.00
2 Discharge Tube w/ Fittings TU-20-AL $22.00
3 Check Valve CTF1/2X1/2 $28.00
4 Electric Motor EM03.0-36-10SP-CH $208.10
5 Pulley - Motor MA33X5/8 $14.00
6 V-Belt 4L450 $12.00
7 Belt Guard BG20GAL $59.00
8 Air Receiver 20HEPORT-B
$380.00
9 Pressure Gauge (Regulator) PT0160 $12.00
Pressure Gauge (Tank) PG200-2.0BO1/4 $12.00
10 Regulator R46-200-RNLA $24.00
11 Drain Cock 240-B
$12.00
12 Safety Valve PSV1/4-150 $12.00
13 Pressure Switch 21UCBDB-CH $18.00
14 Wiring Harness 12/3-13-PT $5.00
15 Handle PT-HANDLE $11.00
16 Wheel PT-WHEEL $35.00
Shoulder Bolt E5004 $9.00
17 Vibration Damper TT-FOOT $2.50
18 Power Cord w/ Plug 12/3-72-PT $12.00
19 Unloader Tubing w/ Fittings TU1/4BLK $12.00
*Fittings for TU1/4BLK 68-4A $3.00
Coupler 10TT-8 $9.00
Eagle Compressor Oil EAOIL10 $7.70

 Item Description Part Number Quantity
1 Intake Filter Accessory 51111-5600 2
2 Cylinder Head 51121-0101 2
3 Lift Limiter for Discharge Valve Plate 51121-3102 2
4 Valve Plate 51121-2101 2
5 Valve Plate to Head Gasket 51121-2105 2
6 Discharge Valve Reed 51121-2103 4
7 Valve Plate Screws 50000-2000 8
8 Valve Plate to Cylinder Gasket 51121-2104 2
9 Piston 52121-5101 2
10 Piston Pin 51121-5112 2
11 Piston Pin Snap Ring 51121-5107 4
12 Connecting Rod c/w Dipper 51121-5120 2
13
14 Cylinder 52121-4101 2
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51121-4103 2
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51121-4701 1
19 Crankshaft 51121-4601 1
20 Front Bearing 83501-6205 1
21 Rear Bearing 83501-6204 1
22 Crankcase to Rear Bearing Housing Gasket 51121-4704 1
23 Rear Bearing Housing 51121-7403 1
24 Oil Seal 51121-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel c/w Fasteners 51121-6601 1
27 Rear Bearing Snap Ring 83610-113025 1
28 Front Bearing Keeper 1
29 Connecting (Interstage) Tubing 51121-7710 1
Interstage "Y" Fitting 51121-7702 1
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (350ML or 12oz) EAOIL10 1
1/4" Street Elbow (Oil Drain) STREL1/4 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 2 Intake Filter Elements Per Pump
B Valve Repair Kit Includes: 101000-151 2
Valve Plate to Head Gasket (Item 5)
2x Discharge Valve Reeds (Item 6)
Valve Plate Screws (Item 7)
Valve Plate to Cylinder Gasket (Item 8)
C Ring Repair Kit Includes: 101000-255 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 2
E Head Unloader Kit Includes:
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 51121-0101U 2
F Oil Drain Kit (Not Shown)
