Tool Mart, Inc. ships from Mississippi

Eagle 2 HP 4.2 Gallon Hand Carry Air Compressor-eagle air compressors-Tool Mart Inc.

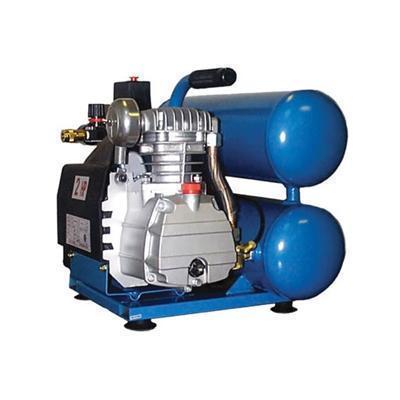

Eagle 2 Horse Power 4.2 Gallon Hand Carry Air Compressor

TS2018L

Regular price $549.95 $345.00 Sale

Features

  • Rugged Compressor with Cast Iron Cylinder
  • Individual and Removable Cylinders for Smoother and Cooler Operation For Optimum Performance
  • 1720 RPM Running Speed - Quiet Operation and Longer Life
  • Thermally Protected 110 V Electric Motor CSA/US Approved: Runs On Household Outlets
  • Convenient Oil Drain on Front of Unit
  • Oil sight Gauge Lets YOu Monitor Level At A Glance
  • Metal Air Filter with Auto Drop Feature
  • High Efficient Reed Valves for Maximum Performance
  • Outlet Control Regulator with 1/4" Quick Conecctors
  • 4.2 Gallon Total Air Reserve Two 1.1 Gallon Tanks Rated Up To 125 PSI Maximum
  • 1 Phase
  • Pump Material Aluminum With Cast Iron Sleeve
  • Pump Type Single Stage
  • Pump Direct Drive
  • Oil Lubricated
  • 1 Year Limited Warranty
  • 4.2 CFM @ 90 PSI
  • 2 HP
  • 4.2 Gallon Capacity
  • 115V Electric Motor
  • Motor RPM:  1720
  • Amp Draw:  11.6/10.9
  • Pressure Switch:  95-120
  • TMI29500

DIM:  20" x 16" x 18"

WEIGHT:  62 LBS

 Item Description Product Code Price
1 Cylinder Head 101001 $
2 Cylinder Head Gasket 211001 $
3 Inlet Valve Seat 104001 $
4 In & Outlet Valve Seat Gasket 212001 $
5 In & Outlet Valve Plate 125001 $
6 In & Outlet Spring Plate 127001 $
8 Bolt/Washer-Cylinder Head 352087 $
9 Discharge Elbow 151403 $
10 Discharge Tube Assembly 242044 $
11 Valve Seat to Cylinder Gasket 213001 $
12 Cylinder 201016 $
13 Piston 203011 $
14 Compression/Oil Ring Set 206003S $
15 Piston Pin with Snap Rings 204003S $
16 Cylinder to Crankcase Gasket 214001 $
17 Double Head Screw 358001S $
18 Balance Bracket 480409 $
19 Crankcase Cover Gasket 215001 $
20 Crankshaft 302001 $
21 Crankcase Cover 304002 $
22 Connecting Rod 316001 $
23 Oil Gauge with Gasket 321001S $
24 Oil Drain Plug 360001 $
25 Motor Cover 433001 $
26 Motor Cover Bolt 352001 $
27 Air Filter Assembly 170006 $3.30
28 Oil Fill Plug 323103 $
29 Motor / Crankcase 251332 $
30 Cooling Fan 431001 $
31 Air Tank 401041 $
32 Pressure Gauge - Regulator 411005 $
33 Pressure Regulator 410001 $
34 Rubber Handle
435002 $
35 Tank Foot Accessory 434002S $
36 Drain Cock 406003 $
37 Check Valve 409008 $
38 Pressure Gauge - Tank 411019 $
39 Pressure Switch 412023 $
40 Bolt 351071 $
41 Unloading Tube Accessory 240056S $
42 Wiring Harnass Pr. Switch - Mot. 453075 $
43 Power Cord w/ Plug 452005 $
44 Safety Valve 407001 $
45 Quick Coupler 447013 $
46 Unloading Tube Elbow 151001 $
47 Snap Ring 205001 $
48 Spring Washer
382011 $
49 Set Nut 371005 $
50 Spring Washer 382005 $
51 Motor Rear Cover 305001 $
52 Oil Control Ring 207003 $
53 Oil Gauge Gasket 217001 $
54
Air Filter (Element Only)
171002 $
55 Plug 360002 $
56 Washer 381041 $
57 Valve Plate Screw 126001 $
58 Outlet Valve Seat 114001 $

Outlet Valve Seat Assembly 124001 $
Eagle Compressor Oil EAOIL10 $7.70
