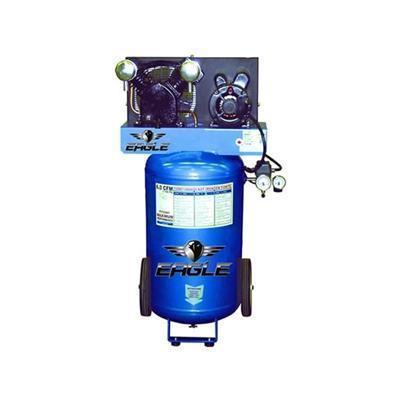

Eagle 3 Horse Power 24 Gallon Portable Air Compressor

Eagle 3 Horse Power 24 Gallon Portable Air Compressor

P3124V1

$999.00 USD
$1,229.99 USD $999.00 USD
Sale Sold out


LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED

THIS ITEM SHIPS TRUCKLINE

Features

  • V-Design Minimizes Vibration, Improves Cooling, and Extends Compressor Life
  • Individual and Removable Cylinders for Smoother and Cooler Operation
  • Thermally Protected 3 HP 110V Electric Motor CSA/US Approved
  • 24 Gallon ASME Registered Tank, 150 PSIG Rating
  • Sturdy Tires for Easy Handling and Maneuverability
  • Convenient Oil Drain on Front of Unit
  • Efficient Heat Removal from Pulley Fan for Cooler Running & Longer Life
  • Sturdy Metal Belt Guard
  • CFM / PSI: 6.0 CFM @ 100 PSI
  • HorsePower: 3.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 24
  • Electric Motor: 110v
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 15
  • Pressure Switch: 95-125
  • Cast Iron Cylinders
  • Factory Set Pressure Switch
  • Auto Drop Metal Air Filters
  • Easy View Oil Sight Gauge
  • Powder Coated Tanks
  • High Effienciency Reed Valves
  • 1 Year Factory Warranty
  • TMI79900

DIM:  24" x 20" x 47"

 Item Description Product Code
1 Compressor w/ Flywheel PV01A
2 Discharge Tube w/ Fittings TU-20-AL
3 Check Valve CTF1/2X1/2
4 Electric Motor EM03.0-36-10SP-CH
5 Pulley - Motor MA33X5/8
6 V-Belt 4L450
7 Belt Guard BG20GAL
8 Air Receiver 24VPORT-B
9 Pressure Gauge (Regulator) PT0160
Pressure Gauge (Tank) PG200-2.5R
10 Regulator R46-200-RNLA
11 Drain Cock 240-B
12 Safety Valve PSV1/4-150
13 Pressure Switch 21UCBDB-CH
14 Wiring Harness 12/3-24-C4
15 Handle PT-HANDLE-24HL
16 Wheel PT-WHEEL
17 Vibration Damper TT-FOOT
18 Power Cord w/ Plug 12/3-72-PT
19 Unloader Tubing w/ Fittings TU1/4BLK
*Fittings for TU1/4BLK 68-4A
Coupler 10TT-8
Eagle Compressor Oil EAOIL10

Item Description Part Number Quantity
1 Intake Filter Accessory 51111-5600 2
2 Cylinder Head 51121-0101 2
3 Lift Limiter for Discharge Valve Plate 51121-3102 2
4 Valve Plate 51121-2101 2
5 Valve Plate to Head Gasket 51121-2105 2
6 Discharge Valve Reed 51121-2103 4
7 Valve Plate Screws 50000-2000 8
8 Valve Plate to Cylinder Gasket 51121-2104 2
9 Piston 52121-5101 2
10 Piston Pin 51121-5112 2
11 Piston Pin Snap Ring 51121-5107 4
12 Connecting Rod c/w Dipper 51121-5120 2
13
14 Cylinder 52121-4101 2
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51121-4103 2
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51121-4701 1
19 Crankshaft 51121-4601 1
20 Front Bearing 83501-6205 1
21 Rear Bearing 83501-6204 1
22 Crankcase to Rear Bearing Housing Gasket 51121-4704 1
23 Rear Bearing Housing 51121-4703 1
24 Oil Seal 51121-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel c/w Fasteners 51121-6601 1
27 Rear Bearing Snap Ring 83610-113025 1
28 Front Bearing Keeper 1
29 Connecting (Interstage) Tubing 51121-7710 1
Interstage "Y" Fitting 51121-7702 1
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (350ML or 12oz) EAOIL10 1
1/4" Street Elbow (Oil Drain) STREL1/4 1



Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 2 Intake Filter Elements Per Pump
B Valve Repair Kit Includes: 101000-151 2
Valve Plate to Head Gasket (Item 5)
2x Discharge Valve Reeds (Item 6)
Valve Plate Screws (Item 7)
Valve Plate to Cylinder Gasket (Item 8)
C Ring Repair Kit Includes: 101000-255 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 2
E Head Unloader Kit Includes:
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 51121-0101U 2
F Oil Drain Kit (Not Shown)
