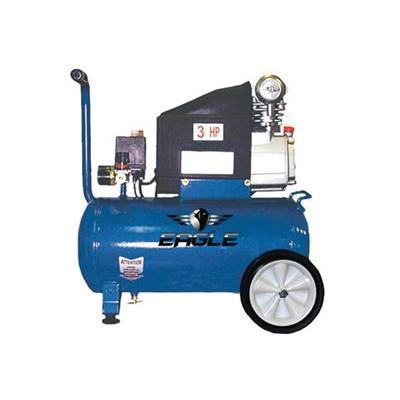

Eagle 3 Horse Power 6 5 Gallon Air Compressor
Eagle 3 Horse Power 6 5 Gallon Air Compressor
653036L
Regular price
$485.95 USD
Regular price
$595.95 USD
Sale price
$485.95 USD
Unit price
per
Couldn't load pickup availability
LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED
THIS ITEM SHIPS TRUCKLINE
Features
- Cast Iron Cylinder Sleve
- Individual & Removable Cylinders for Smoother Operation
- Thermally Protected 3 HP & 110 Volt Electric Motor
- CSA/US Approved
- Convenient Oil Drain on Front of Unit
- Easy View Oil Sight Gauge
- Metal Air Filters with Auto Drop Feature
- Outlet Control Regulator with Quick Connects
- 6.7 CFM @ 90 PSI
- HP: 3
- Max PSI: 125
- 6.5 Gallon Capacity
- 3600 Motor RPM
- Amp Draw: 14.2/14/6
- Pressure Switch: 95-120
- 1 Year Factory Warranty
- TMI40205
DIM: 25" x 12" x 26"
WEIGHT: 73 LBS
| Item | Description | Part Number | Quantity |
| 1 | Cylinder Head | 101001 | 1 |
| 2 | Cylinder Head Gasket | 211001 | 1 |
| 3 | In & Outlet Valve Seat Gasket | 212001 | 1 |
| 4 | In & Outlet Valve Seat Gasket | 212006 | 1 |
| 5 | In & Outlet Valve Plate | 125004 | 2 |
| 6 | Tank Wheel Ass'Y | 402009 | 2 |
| 8 | Bolt/Washer-Cylinder Head | 352087 | 4 |
| 9 | Discharge Elbow | 151403 | 1 |
| 10 | Discharge Tube Assembly | 242072 | 1 |
| 11 | Valve Seat To Cylinder Gasket | 213001 | 1 |
| 12 | Cylinder | 201013 | 1 |
| 13 | Piston | 203002 | 1 |
| 14 | Compression/Oil Ring Set | 206002S | 2 |
| 15 | Piston Pin W/Snap Rings | 204002S | 1 |
| 16 | Cylinder To Crankcase Gasket | 214001 | 1 |
| 17 | Double Head Screw | 358001 | 2 |
| 18 | Bolt | 351115 | 2 |
| 19 | Crankcase Cover Gasket | 215001 | 1 |
| 20 | Crankshaft | 302001 | 1 |
| 21 | Crankcase Cover | 304002 | 1 |
| 22 | Connecting Rod | 316001 | 1 |
| 23 | Oil Gauge W/ Gasket | 321001S | 1 |
| 24 | Oil Drain Plug | 360001 | 1 |
| 25 | Motor Cover | 433001 | 1 |
| 26 | Motor Cover Bolt | 352091 | 9 |
| 27 | Air Filter Ass'Y | 170013 | 1 |
| 28 | Oil Fill Plug | 323103 | 1 |
| 29 | Motor / Crankcase | 251209-1 | 1 |
| 30 | Cooling Fan | 431001 | 1 |
| 31 | Air Tank | 401054 | 1 |
| 32 | Pressure Gauge-Regulator | 411005 | 1 |
| 33 | Pressure Regulator | 410001 | 1 |
| 34 | Rubber Handle | 435002 | 1 |
| 35 | Tank Foot Ass'Y | 434002S | 2 |
| 36 | Drain Cock | 406003 | 1 |
| 37 | Check Valve | 409008 | 1 |
| 38 | Pressure Gauge-Tank | 411006 | 1 |
| 39 | Pressure Switch | 412021 | 1 |
| 40 | Nipple | 441001 | 1 |
| 41 | Unloading Tube Ass'Y | 240086S | 1 |
| 42 | Wiring Harnass Pr. Switch-Mot. | 453076 | 1 |
| 43 | Power Cord W/ Plug | 452005 | 1 |
| 44 | Safety Valve | 407001 | 1 |
| 45 | Quick Coupler | 447013 | 1 |
| 46 | Unloading Tube Elbow | 151001 | 1 |
| 47 | Snap Ring | 205001 | 2 |
| 48 | Spring Washer | 382011 | 8 |
| 49 | Set Nut | 371005 | 2 |
| 50 | Spring Washer | 382005 | 2 |
| 51 | Motor Rear Cover | 305001 | 1 |
| 52 | Oil Control Ring | 307002 | 1 |
| 53 | Oil Gauge Gasket | 217001 | 1 |
| 54 | Filter (Element Only) | 171006 | 1 |
| Eagle Compressor Oil | EAOIL10 | 1 |
