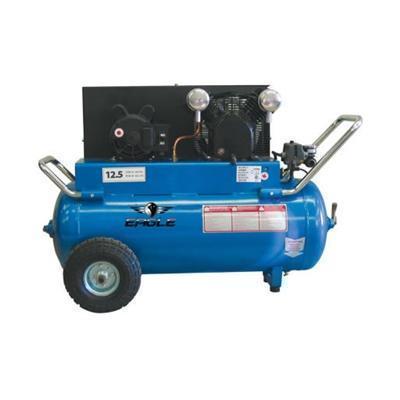

Eagle 4 Horse Power 25 Gallon Air Compressor

Eagle 4 Horse Power 25 Gallon Air Compressor

P4125H1

Regular price $1,522.45 $1,189.90 Sale



LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED ALTHOUGH THIS ITEM QUALIFIES FOR FREE SHIPPING

THIS ITEM SHIPS TRUCKLINE

Features

  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 4 HP Electric Motor
  • Steel Rim Pneumatic Tires For Easy Handling And Maneuverability
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • Outlet Control Regulator
  • 25 Gallon ASME Registered Tank, 150 PSIG Rating
  • CFM / PSI: 12.5 CFM @ 100 PSI
  • Horse Power: 4.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 25
  • Electric Motor: 208/230v
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 15
  • Pressure Switch: 95-125
  • TMI93490

DIM:  44" x 18" x 30"

WEIGHT:  200 LBS

Eagle 4 HP 25 (P4125H1) Gallon Air Compressor Technical Drawing
 Item Description Product Code
1 Compressor w/ Flywheel PV02A
2 Discharge Tube w/ Fittings TU-20-AL
3 Pilot Unloader/Check Valve
NDC29-M
4 Electric Motor EM05.0-36-10SPLWEG
5 Pulley - Motor MA38X5/8
6 V-Belt A54
7 Belt Guard TT-GUARD
8 Air Receiver 25HEPORT-B
9 Pressure Gauge (Tank) PG200-2.5SI1/4
Pressure Gauge (Regulator) PT0160
10 Regulator R202-1/4
11 Drain Cock 240-B
12 Safety Valve PSV1/4-170
13 Pressure Switch 21UCBDB-CH
14 Wiring Harness 12/3-42-TT15
15 Handle (Long) PT-HANDLE-25L
Handle (Short) PT-HANDLE-24HS
16 Wheel PT-WHEEL-FF
17 Vibration Damper TT-FOOT
18 Power Cord w/ Plug 12/3-72-TTP5
19 Unloader Tubing w/ Fittings TU1/4BLK
*Fittings for TU1/4BLK 68-4A
Coupler CPL-DUO
Hose Assembly TT-HOSE-B
Eagle Compressor Oil EAOIL10

 Item Description Part Number
Quantity
1 Intake Filter Assembly 51111-5600 2
2 Cylinder Head 52122-0101 2
3 Lift Limiter for Discharge Valve Plate 51121-3102 2
4 Valve Plate 52122-2101 2
5 Valve Plate to Head Gasket 52122-2105 2
6 Discharge Valve Reed 51121-2103 4
7 Intake Valve Reed
52122-2103 8
8 Valve Plate to Cylinder Gasket 52122-2104 2
9 Piston 51122-5101 2
10 Piston Pin 51122-5112 2
11 Piston Pin Snap Ring 51121-5107 4
12 Connecting Rod c/w Dipper 51122-5120 2
13 Metal Triangle for Valve Plate Assy. (Not Shown) 51121-3101 2
14 Cylinder 52122-4101 2
15 Oil Filler Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 2
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51122-4701 1
19 Crankshaft 51122-4601 1
20 Front Bearing 83501-6205 1
21 Rear Bearing 83501-6205 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24

Oil Seal

51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51122-6601 1
27 Front Bearing Housing
51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51122-7710 1
Interstage "Y" Fitting 51121-7702 1
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (350ml or 12oz) EAOIL10 1
1/4" Street Elbow (Oil Drain) STREL1/4
1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 2x Intake Filter Elements Per Pump
B Valve Repair Kit Includes: 101000-165 2
Valve Plate to Head Gasket (Item 5)
2x Discharge Valve Reeds (Item 6)
Intake Valve Reed  (Item 7)
6x Valve Plate Screws
Metal Triangle for Valve Plate Assy. (Item 13)
C Ring Repair Kit Includes: 101000-265 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 2
E Flywheel Fastener Kit
51122-6602 1
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 51121-0101U 2

Items Not Shown:
Woodruf Key for Engine 3/16x3/16x11/2 1
Woodruf Key for Pump (PV02A) 51122-4606 1
Grommet for Bullwhip 3203 GROMMET 1
