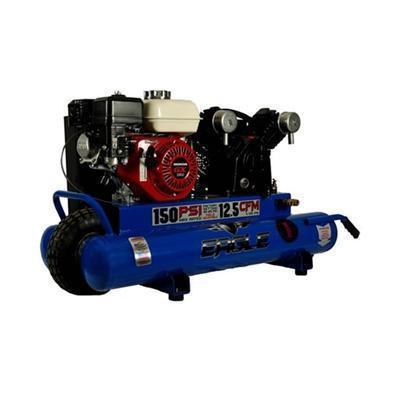

Eagle 5 5 HP 10 Gallon Gas Wheelbarrow Air Compressor With Honda Engine
Eagle 5 5 HP 10 Gallon Gas Wheelbarrow Air Compressor With Honda Engine
TT55G
Regular price
$1,610.95 USD
Regular price
$2,199.95 USD
Sale price
$1,610.95 USD
Unit price
per
LIFTGATE FEES & RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES
THIS ITEM SHIPS TRUCKLINE
Features
- CFM / PSI: 12.5 CFM @ 100 PSI
- Horse Power: 5.5
- Max Rated PSI: 150
- Air Tank Capacity (Gal): 10
- Phase:
- Motor RPM: 3450
- Bare Comp. RPM: 1230
- Amp Draw: Gas
- Pressure Switch: 95-125
- Rugged Compressor With Cast Iron Cylinders
- "V" Design Minimizes Vibration, Improves Cooling And Extends Compressor Life
- Individual & Removable Cylinders For Smoother Operation
- Belt Drive
- Smooth Power Transfer Delivers 12.5 CFM At 100 PSI: 150 PSI Maximum
- 5.5HP Honda GX160-0A Engine
- Engine Has a 3 Quart Gas Tank Lets You Work Longer Between Fill Ups
- Commercial Grade Engine Starts Easily, Runs Reliably
- 10 Gallon Capacity Twin Tanks - The Largest In The Industry Is Ideal For Framing, Roofing And Finish Nailing
- Steel Rim Pneumatic Tires For Easy Handling And Maneuverability
- Convenient Oil Drain On Front Of Unit
- Easy View Oil Sight Gauge
- Metal Air Filter With Auto Drop Feature
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal From Pulley For Cooler Running
- Sturdy Metal Belt Guard
- Engine Slow Down Control Reduces Operating Cost & Unnecessary Wear
- Dual Quick Connects Lets You Run Two Tools At Once For Maximum Efficiency
- Oversize Tire Easily Maneuvers Around Job Sites
- Roll Bar Over Tire Can Be Used To Help Load The Compressor
- 1 Year Limited Warranty
- TMI131000
DIM: 50" x 18" x 24"
WEIGHT: 190 LBS
SHIPPING WEIGHT 222# 40X49X34
Item | Description | Product Code | Price |
1 | Compressor w/ Flywheel | PV02A Pump Assembly | $290.00 |
2 | Pressure Gauge | PG200-2.5SI1/4 | $12.00 |
3 | Discharge Tube | TU-23-AL | $30.00 |
4 | Air Receiver (tank) | 10TT41X5-B | $ |
5 | Drain Cock -Assembly | 240-B | $12.00 |
6 | V-Belt | 4L530 | $12.00 |
7 | Belt Guard | TT-GUARD | $ |
8 | Engine | GX-160UT1QX2-R | $499.99 |
9 | Unloader | NRP-A-95-125 | $80.00 |
10 | Pulley - Engine | MA38X3/4 | $ |
11 | Safety Valve | PSV1/4-170 | $10.00 |
12 | Engine Control w/ Cable | TCP-48 | $39.00 |
13 | Handle Grip | TT-GRIP | $2.50 |
14 | Vibration Dampner | TT-FOOT | $2.50 |
15 | Pneumatic Wheel | TT-WHEEL-SQ-FF | $24.04 |
16 | Coupler | CPL-DUO | $ |
17 | Hose Assembly - Regulator | TT-HOSE-B | $ |
18 | Pressure Gauge (regulator) | PT0160 | $22.80 |
Eagle Compressor Oil | COMP68 | $ | |
Axle | WA1001 | $10.00 | |
Regulator | R202-1/4 | $32.00 |
Item | Description | Part Number |
Quantity |
1 | Intake Filter Assembly | 51111-5600 | 2 |
2 | Cylinder Head | 52122-0101 | 2 |
3 | Lift Limiter for Discharge Valve Plate | 51121-3102 | 2 |
4 | Valve Plate | 52122-2101 | 2 |
5 | Valve Plate to Head Gasket | 52122-2105 | 2 |
6 | Discharge Valve Reed | 51121-2103 | 4 |
7 | Intake Valve Reed |
52122-2103 | 8 |
8 | Valve Plate to Cylinder Gasket | 52122-2104 | 2 |
9 | Piston | 51122-5101 | 2 |
10 | Piston Pin | 51122-5112 | 2 |
11 | Piston Pin Snap Ring | 51121-5107 | 4 |
12 | Connecting Rod c/w Dipper | 51122-5120 | 2 |
13 | Metal Triangle for Valve Plate Assy. (Not Shown) | 51121-3101 | 2 |
14 | Cylinder | 52122-4101 | 2 |
15 | Oil Filler Cap | 51111-4719 | 1 |
16 | Cylinder to Crankcase Gasket | 51122-4103 | 2 |
17 | Oil Sight Glass c/w Gasket | 51111-4770 | 1 |
18 | Crankcase | 51122-4701 | 1 |
19 | Crankshaft | 51122-4601 | 1 |
20 | Front Bearing | 83501-6205 | 1 |
21 | Rear Bearing | 83501-6205 | 1 |
22 | Crankcase to Rear Bearing Housing Gasket | 51122-4704 | 1 |
23 | Rear Bearing Housing | 51122-4703 | 1 |
24 |
Oil Seal |
51122-4708 | 1 |
25 | Crankcase Breather | 51111-4761 | 1 |
26 | Flywheel | 51122-6601 | 1 |
27 | Front Bearing Housing |
51122-4706 | 1 |
28 | Crankcase to Front Bearing Housing Gasket | 51122-4707 | 1 |
29 | Connecting (Interstage) Tubing | 51122-7710 | 1 |
Interstage "Y" Fitting | 51121-7702 | 1 | |
Interstage "Elbow" Fitting | 51112-7701 | 1 | |
Eagle Oil (350ml or 12oz) | EAOIL10 | 1 | |
1/4" Street Elbow (Oil Drain) |
STREL1/4 |
1 |
Item | Description | Part Number | Quantity |
A | Intake Filter Element Kit Includes: | 51121-5614C | 1 |
- 2x Intake Filter Elements Per Pump | |||
B | Valve Repair Kit Includes: | 101000-165 | 2 |
Valve Plate to Head Gasket (Item 5) | |||
2x Discharge Valve Reeds (Item 6) | |||
Intake Valve Reed (Item 7) | |||
6x Valve Plate Screws |
|||
Metal Triangle for Valve Plate Assy. (Item 13) | |||
C | Ring Repair Kit Includes: | 101000-265 | 2 |
Valve Plate to Head Gasket (Item 5) | |||
Valve Plate to Cylinder Gasket (Item 8) | |||
2x Compression Rings | |||
1x Oil Control Ring | |||
Cylinder to Crankcase Gasket (Item 16) | |||
D | Valve Plate Assembly (Not Shown) | 51121-2100 | 2 |
E | Flywheel Fastener Kit |
51122-6602 | 1 |
Unloader | 52122-0120 | 2 | |
Unloading Elbow | 69926-050101 | 1 | |
Unloading Tee | 69927-050101 | 1 | |
Unloading Tube | TU-1/4-CU | 3ft | |
Cylinder Head | 51121-0101U | 2 | |
Items Not Shown: |
|||
Woodruf Key for Engine | 3/16x3/16x11/2 | 1 | |
Woodruf Key for Pump (PV02A) | 51122-4606 | 1 | |
Grommet for Bullwhip | 3203 GROMMET | 1 |
