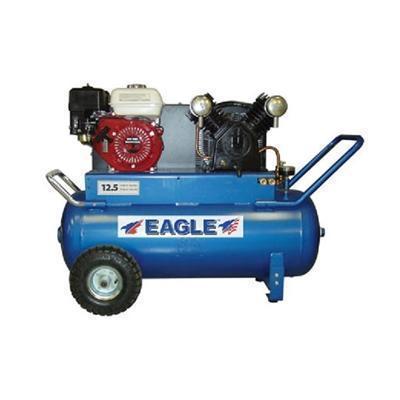

Eagle 5.5 HP 25 Gallon Air Compressor with Electric Start

Eagle 5.5 HP 25 Gallon Air Compressor with Electric Start

P55GE25H1

$1,952.95 USD
$2,400.00 USD $1,952.95 USD
Sale Sold out


LIFT GATE FEES & RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

THIS ITEM SHIPS TRUCKLINE

Features

  • CFM / PSI: 12.5 CFM @ 100 PSI
  • Horse Power: 5.5 Honda GX160 Engine
  • Electric Start
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 25 ASME Certified
  • Engine: Honda GX160
  • Motor RPM: 3450
  • Bare Comp. RPM: 1230
  • Amp Draw: Gas
  • Pressure Switch: 95-125
  • Cast Iron Cylinders
  • V-Design MInimizes Vibration, Improves Cooling, • & Extends Compressors Life
  • Metal Air Filters with Auto Drop Feature
  • High Efficiency Reed Valves
  • Outlet Control Regulator
  • Steel Rim Pneumatic Tires
  • Engine Slow Down Control
  • 1 Year Limited Warranty
  • TMI162500

DIM:  44" x 18" x 34"

WEIGHT:  200 LBS

Item Description  Product Code Price
1 Compressor w/ Flywheel PV02A $290.00
2 Discharge Tube  TU-20-AL $22.00
3 Engine GX-160UT1QXE2-R $499.00
4 Pulley - Engine MA38X3/4 $
5 V-Belt 4L530 $12.00
6 Belt Guard TT-GUARD $
7 Air Receiver (tank) 25HEPORT-B $
8 Pressure Gauge PG200-2.5SI1/4 $12.00
9 Drain Cock  DC1/4 $
10 Safety Valve PSV1/4-170 $10.00
11 Unloader LMV100F $90.75
12 Handle (Long) PT-HANDLE-24HL $
  Handle (Short) PT-HANDLE-24HS $14.00
13 Wheel PT-WHEEL $35.00
14 Vibration Dampener TT-FOOT $2.50
15 Engine Control w/ Cable TCP-48 $39.00
16 Regulator  R202-1/4 $32.00
17 Pressure Gauge (regulator) PT0160 $22.80
18 Coupler CPL-DUO $
  Hose assembly TT-HOSE $15.40
Eagle Compressor Oil EAOIL10 $4.50

 Item Description Part Number
 Quantity
1 Intake Filter Assembly 51111-5600 2
2 Cylinder Head 52122-0101 2
3 Lift Limiter for Discharge Valve Plate 51121-3102 2
4 Valve Plate 52122-2101 2
5 Valve Plate to Head Gasket 52122-2105 2
6 Discharge Valve Reed 51121-2103 4
7 Intake Valve Reed
 52122-2103 8
8 Valve Plate to Cylinder Gasket 52122-2104 2
9 Piston 51122-5101 2
10 Piston Pin 51122-5112 2
11 Piston Pin Snap Ring 51121-5107 4
12 Connecting Rod c/w Dipper 51122-5120 2
13 Metal Triangle for Valve Plate Assy. (Not Shown) 51121-3101 2
14 Cylinder 52122-4101 2
15 Oil Filler Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 2
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51122-4701 1
19 Crankshaft 51122-4601 1
20 Front Bearing 83501-6205 1
21 Rear Bearing 83501-6205 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24

Oil Seal

 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51122-6601 1
27 Front Bearing Housing
 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51122-7710 1
Interstage "Y" Fitting 51121-7702 1
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (350ml or 12oz) EAOIL10 1
1/4" Street Elbow (Oil Drain) STREL1/4
 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 2x Intake Filter Elements Per Pump
B Valve Repair Kit Includes: 101000-165 2
Valve Plate to Head Gasket (Item 5)
2x Discharge Valve Reeds (Item 6)
Intake Valve Reed  (Item 7)
6x Valve Plate Screws
Metal Triangle for Valve Plate Assy. (Item 13)
C Ring Repair Kit Includes: 101000-265 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 2
E Flywheel Fastener Kit
 51122-6602 1
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 51121-0101U 2

Items Not Shown:
Woodruf Key for Engine 3/16x3/16x11/2 1
Woodruf Key for Pump (PV02A) 51122-4606 1
Grommet for Bullwhip 3203 GROMMET 1
