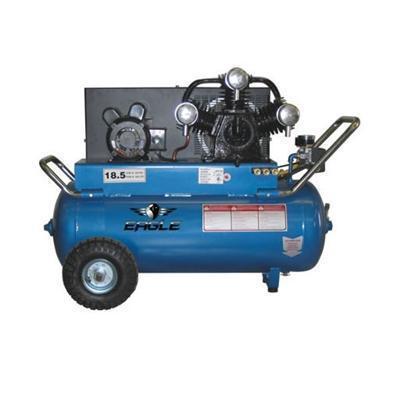

Eagle 5 Horse Power 25 Gallon Air Compressor

Eagle 5 Horse Power 25 Gallon Air Compressor

P5125H1

$1,390.00 USD
$1,695.00 USD $1,390.00 USD
Sale Sold out


LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED

THIS ITEM SHIPS TRUCKLINE

Features

  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 5hp Electric Motor CSA/US Approved
  • Steel Rim Pneumatic Tires For Easy Handling And Maneuverability
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • Outlet Valve & Regulators Included
  • CFM / PSI: 18.5 CFM @ 100 PSI
  • HorsePower: 5.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 25
  • Electric Motor: 208/230v
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 23/21
  • 1 Year Factory Warranty
  • TMI126500

DIM:  44" x 18" x 33"

WEIGHT:  250 LBS

SHIPPING DIMENSIONS: 314# 40X49X55

Eagle 5 HP 25 (P5125H1) Gallon Air Compressor Technical Drawing



 Item Description Product Code
1 Compressor w/ Flywheel PT03A
2 Discharge Tube TU-20-AL
3 Unloader NDC29-M
4 Electric Motor
 EM05.0-36-10
5 Pulley - Motor
 MA38X7/8
6
 V-Belt
 A54
7 Belt Guard
 TT-GUARD
8
 Air Receiver (Tank)
 25HEPORT-B
9
 Pressure Gauge
 PG200-2.5SI1/4

Pressure Gauge (Regulator) PT0160
10 Regulator R202-1/4
11 Drain Cock - Assembly
 240-B
12 Safety Valve
 PSV1/4-170
13 Pressure Switch
 21UCBDB-TW25L
14 Wiring Harness 12/3-42-TT15
15 Handle (Long)
 PT-HANDLE-25L

Handle (Short)
 PT-HANDLE-24HS
16 Wheel PT-WHEEL
17 Vibration Dampner TT-FOOT
18 Power Cord
 12/3-72-TTP5
19 Unloader Tube
 TU1/4BLK

*Fittings for TU1/4BLK
 68-4A

Coupler
 CPL-TRI
Hose Assembly TT-HOSE

Eagle Compressor Oil EAOIL10

Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
 1
21 Rear Bearing 83501-6205
 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
 3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
