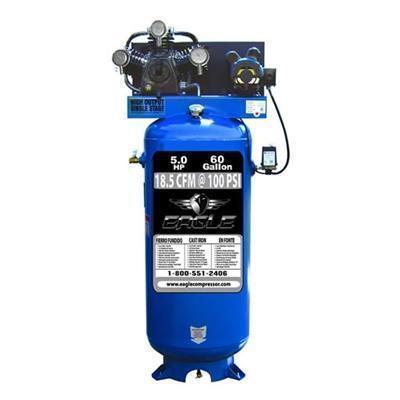

Eagle 5 Horse Power 60 Gallon Single Stage Air Compressor 208 230V 1 Phase

Eagle 5 Horse Power 60 Gallon Single Stage Air Compressor 208 230V 1 Phase

C5160V1

$1,695.35 USD
$1,895.95 USD $1,695.35 USD
Sale Sold out




THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST

Features

  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • No Magnetic Starter Required
  • Heavy Duty Pressure Switch With On/off Control
  • Thermally Protected 5hp 208/230 Volt Electric Motor
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature
  • High Efficiency Reed Valves For Maximum Performance
  • 60 Gallon ASME Registered Tank 150PSIG Rating
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • Outlet Control Regulator With Quick Connectors
  • CFM / PSI: 18.5 CFM @ 100 PSI
  • Horse Power: 5.0
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 60
  • Electric Motor: 208/230V
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1230
  • Amp Draw: 23/21
  • Pressure Switch: 95-125
  • TMI141035

DIM:  30" x 20" x 66"


WEIGHT:  280 LBS

Item Description Product Code
1 Compressor w/ Flywheel PT03A
2 Discharge Tube TU-23-AL
3 Pressure Gauge PG200-2.5R
4 Ball Valve BV1/2MF
5 Air Receiver (tank) 60V20X48BR-B
6 Drain Cock -Assembly 240-B
7 V-Belt 4L530
8 Belt Guard BGC
9 Motor - 1 Phase, 208/230V EM05.0-36-10
10 Wiring Harness  12/3-24-C4
11 Check Valve CTF1/2X1/2
12 Pressure Switch 3BEHD
13 Pulley - Motor MA38X7/8
14 Unloader Tube  TU1/4BLK
  **Fittings Required for TU-1/4CU 68-4A
15 Safety Valve PSV1/4-170
Eagle Compressor Oil EAOIL10

 Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
 1
21 Rear Bearing 83501-6205
 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
 3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
