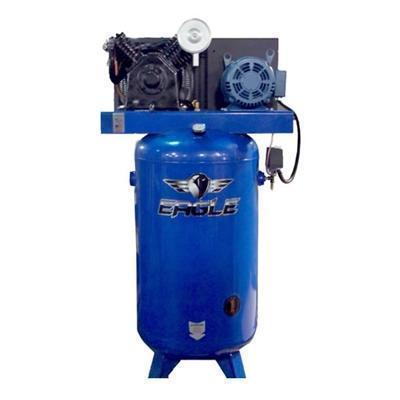

Eagle 5 Horse Power 80 Gallon Air Compressor

5380V2-CS2

Regular price $2,995.00 $1,925.00 Sale

Features

  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 5hp Single Phase, Three Phase 208/230/460 Volt Or Three Phase 575 Volt Electric Motor
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • Outlet Control Regulator With Quick Connectors
  • 80 Gallon ASME Registered Tank 200 PSIG Rating
  • CFM / PSI: 18.0 CFM @ 100 PSI
  • HorsePower: 5.0
  • Max Rated PSI: 200
  • Air Tank Capacity (Gal): 80
  • Electric Motor: 208/230V
  • Phase: 3
  • Motor RPM: 1800
  • Bare Comp. RPM: 990
  • Amp Draw: 15.9/14.4
  • Pressure Switch: 125-145

DIM:  35" x 24" x 68"

WEIGHT:  480 LBS

Item Description Product Code
1 Compressor w/ Flywheel HPV05A
2 Discharge Tube  TU-3/4-CU (2.5ft)
3 Pressure Gauge (Tank) PG200-2.5R
4 Outlet Valve BV3/4MF
5 Air Receiver 80VE20X48-B
6 Drain Cock 240-B
7 V-Belt A73 (2)
Belt Guard BG80GAL
9 Motor- 1 Phase 208/230V
EM05.0-18-10
10 Check Valve P7575ST
11 Pressure Switch CS-10/16A
12 Pulley - Motor 2MAL87
13 Hub or Bushing LX11/8
14 Unloader Tube w/ Fittings TU-1/4-CU & 68-4A
15 Safety Valve PSV1/4-200
  Eagle Compressor Oil EAOIL10
<

1st Stage 1st Stage 2nd Stage 2nd Stage
Item Description Part Number Quantity Part Number Quantity
1 Intake Filter Assembly 51124-5600 1
2 Cylinder Head 52133-0101 1 52122-0101 1
3 Lift Limiter - Discharge Valve Plate 51121-3102 4 51121-3102 2
4 Valve Plate 52133-2101 1 52122-2101 1
5 Valve Plate to Head Gasket 52133-2105 1 52122-2105 1
6 Discharge Valve Reed 51121-2103 4 51121-2103 2
7 Intake Valve Reed 52133-2103 1 52122-2103 1
8 Valve Plate to Cylinder Gasket 52133-2104 1 52122-2104 1
9 Piston 52133-5101 1 51173-5201 1
10 Piston Pin 52133-5112 1 51173-5212 1
10A Piston Snap Ring 52133-5107 2 52133-5107 2
11 Piston Pin Bushing 52173-5208 1
12 Connecting Rod c/w Dipper 51133-5120 1 52173-5220 1
13 Connecting Rod Bearing (Each) 51133-5109 2 51133-5109 2
14 Cylinder 52133-4101 1 52173-4201 1
15 Oil Filler Cap 51133-4719 1
16 Cylinder to Crankcase Gasket 52133-4103 1 52133-4103 1
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 52133-4701 1
19 Crankshaft 52133-4601 1
20 Front Bearing 83501-6306 1
21 Rear Bearing 83501-6306 1
221 Crankcase - Rear Bearing Housing Gasket 51133-4704 1
23 Rear Bearing Housing 51133-4703 1
24 Oil Seal 51133-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51133-6601 1
27 Front Bearing Housing 51133-4706 1
28 Crankcase - Front Bearing Housing Gasket 51133-4707 1
29 Connecting (Interstage) Tubing 52173-7710 1
1/4" Street Elbow (Oil Drain) STREL1/4 1
Eagle Oil (1 Litre or 34OZ) EAOIL10 1
Flywheel Fastener Kit (Not Shown) 51133-6621 1
1st Stage 1st Stage 2nd Stage 2nd Stage
Item Description Part Number Quantity Part Number Quantity
A Intake Filter Element Kit Includes: 101000-310 1
- 1x Intake Filter Element 1
B Valve Repair Kit Includes: 101000-195
1 101000-165 1
Valve Plate to Head Gasket (Item 5) 1 1
Outlet Valve Reeds (Item 6) 4 2
Intake Valve Reeds (Item 7) 4 2
Valve Reed Screws
10 6
Valve Plate to Cylinder Gasket (Item 8)
10 6
Reed Traingles 4 2
C Ring Repair Kit Includes: 101000-295 1 101000-285 1
Valve Plate to Head Gasket (Item 5) 1 1
Valve Plate to Cylinder Gasket (Item 8) 1 1

2x Compression Rings 1 1
1x Oil Control Ring 1 1
Cylinder to Crankcase Gasket (Item 16) 1 1
D Valve Plate Assembly (Not Shown) 52133-2100
1 52122-2100 1
