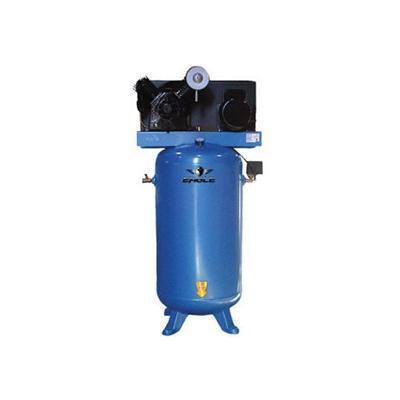

Eagle 5 Horse Power 80 Gallon Air Compressor
Eagle 5 Horse Power 80 Gallon Air Compressor
5580V2-CS
Regular price
$2,494.55 USD
Regular price
$4,069.55 USD
Sale price
$2,494.55 USD
Unit price
per
Couldn't load pickup availability
LIFT GATE FEES & RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES
THIS ITEM SHIPS TRUCKLINE
Features
- Rugged Compressor With Cast Iron Cylinders
- "V" Design Minimizes Vibration
- Individual & Removable Cylinders For Smoother Operation
- Heavy Duty Pressure Switch With On/Off Control
- Thermally Protected 5hp Single Phase, Three Phase 208/230/460 Volt Or Three Phase 575 Volt Electric Motor
- Convenient Oil Drain On Front Of Unit
- Easy View Oil Sight Gauge
- Metal Air Filter With Auto Drop Feature
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal From Pulley For Cooler Running
- Sturdy Metal Belt Guard
- Outlet Control Regulator With Quick Connectors
- 80 Gallon ASME Registered Tank 200 PSIG Rating
- CFM / PSI: 18.0 CFM @ 100 PSI
- HorsePower: 5.0
- Max Rated PSI: 200
- Air Tank Capacity (Gal): 80
- Electric Motor: 575V
- Phase: 3
- Motor RPM: 1800
- Bare Comp. RPM: 990
- Amp Draw: 5.8
- Pressure Switch: 125-145
- 1 Year Factory Serviced
- TMI219455
DIM: 35" x 24" x 68"
WEIGHT: 480 LBS
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | HPV05A |
| 2 | Discharge Tube (2.5ft) ASSY | TU-3/4-CU |
| 3 | Pressure Gauge | PG200-2.5R |
| 4 | Outlet Valve | BV3/4MF |
| 5 | Air Receiver (tank) | 80VE24X48-B 2 |
| 6 | Drain Cock -Assembly | 240-B |
| 7 | V-Belt | A73 |
| 8 | Belt Guard | BG80GAL |
| 9 | Motor - 1 Phase, 208/230V | EM05.0-18-10 |
| 10 | Check Valve | P7575ST |
| 11 | Pressure Switch | CS-6.3/10A |
| 12 | Pulley - Motor | 2MAL87 |
| 13 | Hub or Bushing | LX11/8 |
| 14 | Unloader Tube | TU-1/4-CU |
| **Fittings Required for TU-1/4CU | 68-4A | |
| 15 | Safety Valve | PSV1/4-200 |
| Eagle Compressor Oil | EAOIL10 |
| 1st Stage | 1st Stage | 2nd Stage | 2nd Stage | ||
| Item | Description | Part Number | Quantity | Part Number | Quantity |
| 1 | Intake Filter Assembly | 51124-5600 | 1 | ||
| 2 | Cylinder Head | 52133-0101 | 1 | 52122-0101 | 1 |
| 3 | Lift Limiter - Discharge Valve Plate | 51121-3102 | 4 | 51121-3102 | 2 |
| 4 | Valve Plate | 52133-2101 | 1 | 52122-2101 | 1 |
| 5 | Valve Plate to Head Gasket | 52133-2105 | 1 | 52122-2105 | 1 |
| 6 | Discharge Valve Reed | 51121-2103 | 4 | 51121-2103 | 2 |
| 7 | Intake Valve Reed | 52133-2103 | 1 | 52122-2103 | 1 |
| 8 | Valve Plate to Cylinder Gasket | 52133-2104 | 1 | 52122-2104 | 1 |
| 9 | Piston | 52133-5101 | 1 | 51173-5201 | 1 |
| 10 | Piston Pin | 52133-5112 | 1 | 51173-5212 | 1 |
| 10A | Piston Snap Ring | 52133-5107 | 2 | 52133-5107 | 2 |
| 11 | Piston Pin Bushing | 52173-5208 | 1 | ||
| 12 | Connecting Rod c/w Dipper | 51133-5120 | 1 | 52173-5220 | 1 |
| 13 | Connecting Rod Bearing (Each) | 51133-5109 | 2 | 51133-5109 | 2 |
| 14 | Cylinder | 52133-4101 | 1 | 52173-4201 | 1 |
| 15 | Oil Filler Cap | 51133-4719 | 1 | ||
| 16 | Cylinder to Crankcase Gasket | 52133-4103 | 1 | 52133-4103 | 1 |
| 17 | Oil Sight Glass c/w Gasket | 51111-4770 | 1 | ||
| 18 | Crankcase | 52133-4701 | 1 | ||
| 19 | Crankshaft | 52133-4601 | 1 | ||
| 20 | Front Bearing | 83501-6306 | 1 | ||
| 21 | Rear Bearing | 83501-6306 | 1 | ||
| 221 | Crankcase - Rear Bearing Housing Gasket | 51133-4704 | 1 | ||
| 23 | Rear Bearing Housing | 51133-4703 | 1 | ||
| 24 | Oil Seal | 51133-4708 | 1 | ||
| 25 | Crankcase Breather | 51111-4761 | 1 | ||
| 26 | Flywheel | 51133-6601 | 1 | ||
| 27 | Front Bearing Housing | 51133-4706 | 1 | ||
| 28 | Crankcase - Front Bearing Housing Gasket | 51133-4707 | 1 | ||
| 29 | Connecting (Interstage) Tubing | 52173-7710 | 1 | ||
| 1/4" Street Elbow (Oil Drain) | STREL1/4 | 1 | |||
| Eagle Oil (1 Litre or 34OZ) | EAOIL10 | 1 | |||
| Flywheel Fastener Kit (Not Shown) | 51133-6621 | 1 |
| 1st Stage | 1st Stage | 2nd Stage | 2nd Stage | ||
| Item | Description | Part Number | Quantity | Part Number | Quantity |
| A | Intake Filter Element Kit Includes: | 101000-310 | 1 | ||
| - 1x Intake Filter Element | 1 | ||||
| B | Valve Repair Kit Includes: |
101000-195 |
1 | 101000-165 | 1 |
| Valve Plate to Head Gasket (Item 5) | 1 | 1 | |||
| Outlet Valve Reeds (Item 6) | 4 | 2 | |||
| Intake Valve Reeds (Item 7) | 4 | 2 | |||
| Valve Reed Screws |
10 | 6 | |||
| Valve Plate to Cylinder Gasket (Item 8) |
10 | 6 | |||
| Reed Traingles | 4 | 2 | |||
| C | Ring Repair Kit Includes: | 101000-295 | 1 | 101000-285 | 1 |
| Valve Plate to Head Gasket (Item 5) | 1 | 1 | |||
| Valve Plate to Cylinder Gasket (Item 8) | 1 | 1 | |||
| 2x Compression Rings | 1 | 1 | |||
| 1x Oil Control Ring | 1 | 1 | |||
| Cylinder to Crankcase Gasket (Item 16) | 1 | 1 | |||
| D | Valve Plate Assembly (Not Shown) |
52133-2100 |
1 | 52122-2100 | 1 |
