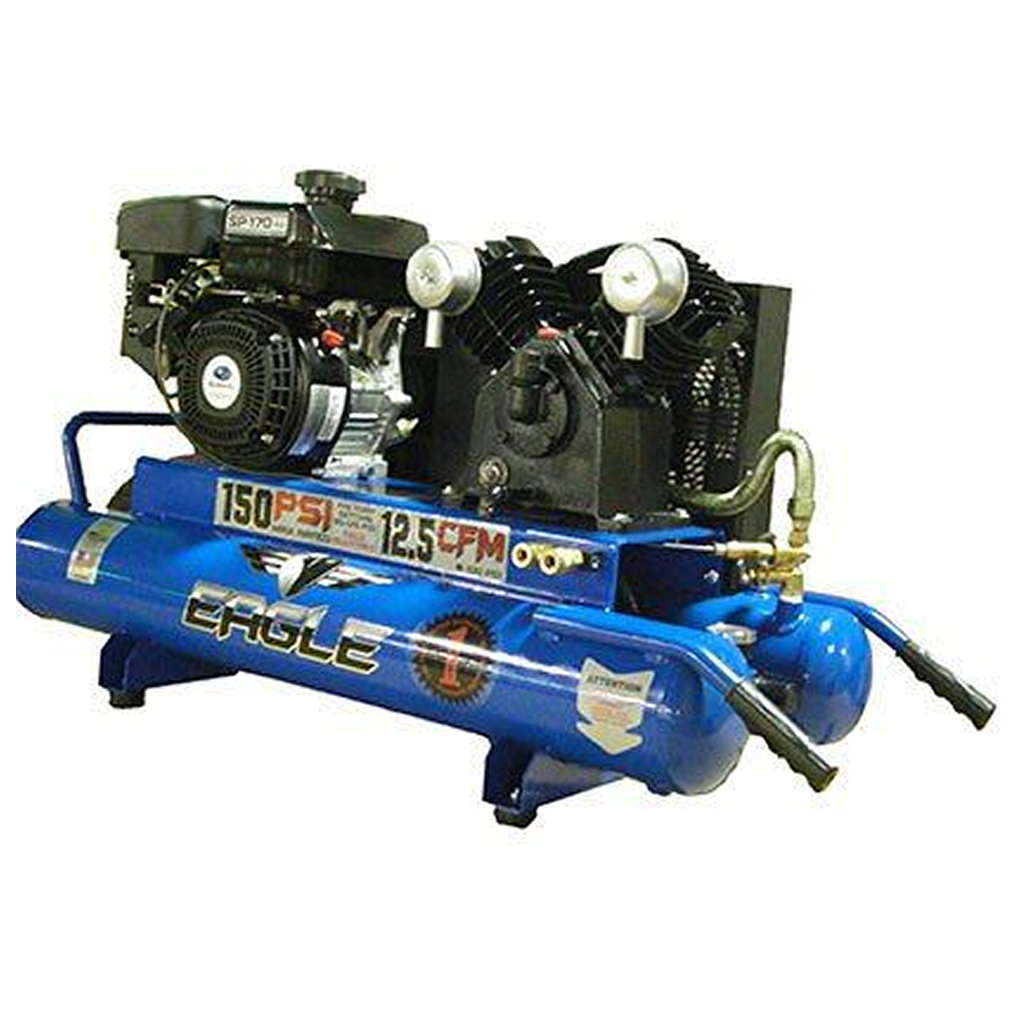

Eagle 6 Horsepower 10 Gallon Wheelbarrow Air Compressor

Eagle 6 Horsepower 10 Gallon Wheelbarrow Air Compressor

TT60G

Regular price $1,395.00 USD
Regular price $1,795.95 USD Sale price $1,395.00 USD
Sale Sold out




IN ADDITION TO SHIPPING FEES LIFT GATE AND RESIDENTIAL FEES MAY APPLY

THIS ITEM SHIPS TRUCKLINE

Features:

  • 12.5 CFM @ 100 PSI
  • 150 PSI Max Pressure
  • Industry Leading 10 Gallon Twin Tank
  • Rugged "V" Style Cast Iron Pump
  • Built-In Regulator
  • Professional Grade Dual k Couplers
  • Sturdy Metal Belt Guard
  • Metal Air Filters With Automotive Style Element
  • Convenient Extended Oil Drain
  • Engine Idle Control
  • Easy View Oil Sight Gauge
  • 1 Year Commercial Duty Warranty
  • TMI110000
  • 47" x 17" x 23"
  • 165 LBS

Item Description  Product Code Price
1 Compressor w/ Flywheel PV02A Pump Assembly $290.00
2 Pressure Gauge PG200-2.5SI1/4 $12.00
3 Discharge Tube TU-23-AL $30.00
4 Air Receiver (tank) 10TT41X5-B $
5 Drain Cock -Assembly 240-B $12.00
6 V-Belt 4L530 $12.00
7 Belt Guard TT-GUARD $
8 Engine GX-160UT1QX2-R $499.99
9 Unloader NRP-A-95-125 $80.00
10 Pulley - Engine MA38X3/4 $
11 Safety Valve PSV1/4-170 $10.00
12 Engine Control w/ Cable TCP-48 $39.00
13 Handle Grip TT-GRIP $2.50
14 Vibration Dampner TT-FOOT $2.50
15 Pneumatic Wheel TT-WHEEL-SQ-FF $24.04
16 Coupler CPL-DUO $
17 Hose Assembly - Regulator TT-HOSE-B $
18 Pressure Gauge (regulator) PT0160 $22.80
Eagle Compressor Oil COMP68 $
Axle WA1001 $10.00
Regulator R202-1/4 $32.00



 Item Description Part Number
Quantity
1 Intake Filter Assembly 51111-5600 2
2 Cylinder Head 52122-0101 2
3 Lift Limiter for Discharge Valve Plate 51121-3102 2
4 Valve Plate 52122-2101 2
5 Valve Plate to Head Gasket 52122-2105 2
6 Discharge Valve Reed 51121-2103 4
7 Intake Valve Reed
52122-2103 8
8 Valve Plate to Cylinder Gasket 52122-2104 2
9 Piston 51122-5101 2
10 Piston Pin 51122-5112 2
11 Piston Pin Snap Ring 51121-5107 4
12 Connecting Rod c/w Dipper 51122-5120 2
13 Metal Triangle for Valve Plate Assy. (Not Shown) 51121-3101 2
14 Cylinder 52122-4101 2
15 Oil Filler Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 2
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51122-4701 1
19 Crankshaft 51122-4601 1
20 Front Bearing 83501-6205 1
21 Rear Bearing 83501-6205 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24

Oil Seal

51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51122-6601 1
27 Front Bearing Housing
51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51122-7710 1
Interstage "Y" Fitting 51121-7702 1
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (350ml or 12oz) EAOIL10 1
1/4" Street Elbow (Oil Drain) STREL1/4
1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 2x Intake Filter Elements Per Pump
B Valve Repair Kit Includes: 101000-165 2
Valve Plate to Head Gasket (Item 5)
2x Discharge Valve Reeds (Item 6)
Intake Valve Reed  (Item 7)
6x Valve Plate Screws
Metal Triangle for Valve Plate Assy. (Item 13)
C Ring Repair Kit Includes: 101000-265 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 2
E Flywheel Fastener Kit
51122-6602 1
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 51121-0101U 2

Items Not Shown:
Woodruf Key for Engine 3/16x3/16x11/2 1
Woodruf Key for Pump (PV02A) 51122-4606 1
Grommet for Bullwhip 3203 GROMMET 1
