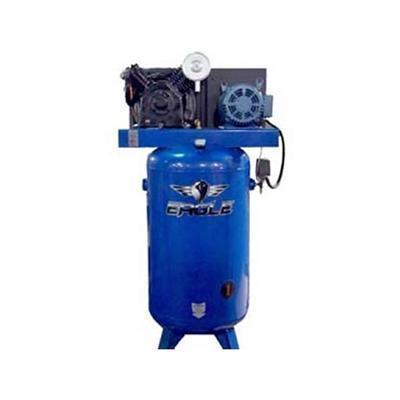

Eagle 7.5 HP 80 Gallon Air Compressor

Eagle 7.5 HP 80 Gallon Air Compressor

7380V2-CS4

Regular price $2,200.00 $1,920.00 Sale

Features

  • CFM / PSI: 24.6 CFM @ 100 PSI
  • HorsePower: 7.5
  • Max Rated PSI: 200
  • Air Tank Capacity (Gal): 80
  • Electric Motor: 460V
  • Phase: 3
  • Motor RPM: 3600
  • Bare Comp. RPM: 990
  • Amp Draw: 10
  • Pressure Switch: 125-145
  • 1 Year Limited Warranty
  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 7.5 HP Single Phase 208/230/460v Or Three Phase 575v Motor
  • 80 Gallon ASME Registered Tank 200 PSI Rating
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • Outlet Valve Included

DIM:  35" x 24" x 68"

WEIGHT:  490 LBS



Item Description Product Code Price
1 Compressor w/ Flywheel HPV05A $850.00
2 Discharge Tube
Flare Fitting/Elbow
3 Pressure Gauge (Tank) PG200-2.5R $12.00
4 Outlet Valve BV3/4MF $12.00
5 Air Receiver 80VE24X48B $845.00
6 Drain Cock 240-B $12.00
7 V-Belt A73 $12.00
8 Belt Guard BG80GAL $90.00
9 Motor - 1 Phase, 208/230 Volt N/A
- 3 Phase, 208/230 Volt EM07.5-18-3O $1,310.81
- 3 Phase, 575 Volt EM07.5-18-5O $1,538.22
10 Check Valve P7575ST $48.00
11 Pressure Switch CS-10/16A $130.00
12 Pulley - Motor 2MAL92 $81.00
13 Hub or Bushing LX13/8 $10.00
14 Unloader Tube w/ Fittings TU-1/4-CU & 68-4A $17.00 & $3.00
15 Safety Valve PSV1/4-200 $12.00
16 Magnetic Starter
Straight Connector 68-4A $3.00
Eagle Compressor Oil EAOIL10 $4.50
