7380V2-CS2

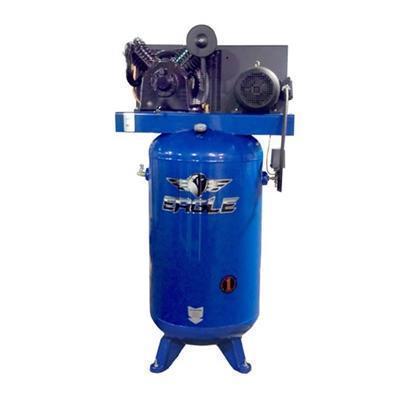

Eagle 7.5 Horse Power 80 Gallon Air Compressor

Eagle 7.5 Horse Power 80 Gallon Air Compressor

Regular price $2,516.60 USD
Regular price $3,196.60 USD Sale price $2,516.60 USD
Sale Sold out


LIFT GATE FEES & RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

THIS ITEM SHIPS TRUCKLINE

Features

  • 1 Year Limited Warranty
  • Rugged Compressor With Cast Iron Cylinders
  • "V" Design Minimizes Vibration
  • Individual & Removable Cylinders For Smoother Operation
  • Heavy Duty Pressure Switch With On/Off Control
  • Thermally Protected 7.5 Hp Single Phase 208/230/460v Or Three Phase 575v Motor
  • 80 Gallon ASME Registered Tank 200 PSI Rating
  • Convenient Oil Drain On Front Of Unit
  • Easy View Oil Sight Gauge
  • Metal Air Filter With Auto Drop Feature
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Pulley For Cooler Running
  • Sturdy Metal Belt Guard
  • Outlet Valve Included
  • CFM / PSI: 24.6 CFM @ 100 PSI
  • HorsePower: 7.5
  • Max Rated PSI: 200
  • Air Tank Capacity (Gal): 80
  • Electric Motor: 208/230V
  • Phase: 3
  • Motor RPM: 3600
  • Bare Comp. RPM: 990
  • Amp Draw: 22.1/20
  • Pressure Switch: 125-145
  • 1 Year Factory Warranty
  • TMI221660

DIM:  35" x 24" x 68"

WEIGHT:  490 LBS

Eagle 7.5 HP 80 (7380V2-CS2) Gallon Air Compressor Technical Drawing



Item Description  Product Code
1 Compressor w/ Flywheel HPV05A
2 Discharge Tube (2.5ft) ASSY TU-3/4-CU
3 Pressure Gauge PG200-2.5R
4 Outlet Valve BV3/4MF
5 Air Receiver (tank) 80VE24X48-B      2
6 Drain Cock -Assembly 240-B
7 V-Belt A73
8 Belt Guard BG80GAL
9 Motor - 1 Phase, 208/230V EM07.5-18-10
10 Check Valve P7575ST
11 Pressure Switch CS-20/24A
12 Pulley - Motor 2MAL92
13 Hub or Bushing LX13/8
14 Unloader Tube  TU-1/4-CU
  **Fittings Required for TU-1/4CU 68-4A
15 Safety Valve PSV1/4-200
Eagle Compressor Oil EAOIL10

1st Stage 1st Stage 2nd Stage 2nd Stage
 Item Description Part Number Quantity Part Number Quantity
1 Intake Filter Assembly 51124-5600 1
2 Cylinder Head 52133-0101 1 52122-0101 1
3 Lift Limiter - Discharge Valve Plate 51121-3102 4 51121-3102 2
4 Valve Plate 52133-2101 1 52122-2101 1
5 Valve Plate to Head Gasket 52133-2105 1 52122-2105 1
6 Discharge Valve Reed 51121-2103 4 51121-2103 2
7 Intake Valve Reed 52133-2103 1 52122-2103 1
8 Valve Plate to Cylinder Gasket 52133-2104 1 52122-2104 1
9 Piston 52133-5101 1 51173-5201 1
10 Piston Pin 52133-5112 1 51173-5212 1
10A Piston Snap Ring 52133-5107 2 52133-5107 2
11 Piston Pin Bushing 52173-5208 1
12 Connecting Rod c/w Dipper 51133-5120 1 52173-5220 1
13 Connecting Rod Bearing (Each) 51133-5109 2 51133-5109 2
14 Cylinder 52133-4101 1 52173-4201 1
15 Oil Filler Cap 51133-4719 1
16 Cylinder to Crankcase Gasket 52133-4103 1 52133-4103 1
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 52133-4701 1
19 Crankshaft 52133-4601 1
20 Front Bearing 83501-6306 1
21 Rear Bearing 83501-6306 1
221 Crankcase - Rear Bearing Housing Gasket 51133-4704 1
23 Rear Bearing Housing 51133-4703 1
24 Oil Seal 51133-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51133-6601 1
27 Front Bearing Housing 51133-4706 1
28 Crankcase - Front Bearing Housing Gasket 51133-4707 1
29 Connecting (Interstage) Tubing 52173-7710 1
1/4" Street Elbow (Oil Drain) STREL1/4 1
Eagle Oil (1 Litre or 34OZ) EAOIL10 1
Flywheel Fastener Kit (Not Shown) 51133-6621 1
1st Stage 1st Stage 2nd Stage 2nd Stage
 Item Description Part Number Quantity Part Number Quantity
A Intake Filter Element Kit Includes: 101000-310 1
- 1x Intake Filter Element 1
B Valve Repair Kit Includes: 101000-195
1 101000-165 1
Valve Plate to Head Gasket (Item 5) 1 1
Outlet Valve Reeds (Item 6) 4 2
Intake Valve Reeds  (Item 7) 4 2
Valve Reed Screws
10 6
Valve Plate to Cylinder Gasket (Item 8)
10 6
Reed Traingles 4 2
C Ring Repair Kit Includes: 101000-295 1 101000-285 1
Valve Plate to Head Gasket (Item 5) 1 1
Valve Plate to Cylinder Gasket (Item 8) 1 1

2x Compression Rings 1 1
1x Oil Control Ring 1 1
Cylinder to Crankcase Gasket (Item 16) 1 1
D Valve Plate Assembly (Not Shown) 52133-2100
1 52122-2100 1
