Tool Mart, Inc. ships from Mississippi

Eagle 7.5 HP 80 Gallon Single Stage Air Compressor (208-230v 1 Phase)-eagle air compressors-Tool Mart Inc.

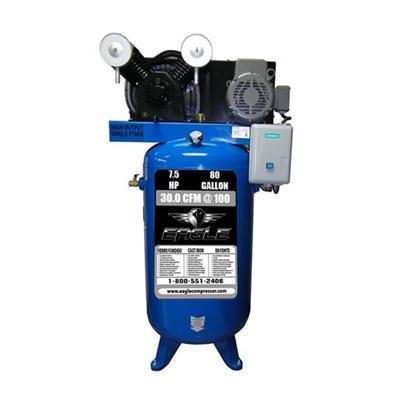

Eagle 7.5 Horse Power 80 Gallon Single Stage Air Compressor 208-230v 1 Phase

C7180V1-MS

Regular price $2,350.00 $2,200.00 Sale

Features

  • CFM / PSI: 30.0 CFM @ 100 PSI
  • HorsePower: 7.5
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 80
  • Electric Motor: 208/230V
  • Phase: 1
  • Motor RPM: 3600
  • Bare Comp. RPM: 1000
  • Amp Draw: 30
  • Pressure Switch: 95-125
  • V Design Minimizes Vibration, Improves Cooling, Extends Life
  • Individual And Removeable Cylinders For Smoother And Cooler Operation For Optimum Durability
  • Heavy Duty Pressure Swith Has On/Off Control
  • Thermally Protected 7.5 Hp Single Phase Electric Motor
  • Requires a 30 Amp Circuit; Magnetic Starter Included
  • Metal Air Filters With Äuto Drop"Features Helps Compressor Run Quietly
  • 80 Gallon ASME Air Tank Rated to 200 PSI
  • Convenient Oil Drain On front Of Unit For Easy Maintenance
  • Oil Sight Glass Lets You Check Level At A Glance
  • High Efficiencey Reed Valves Provide Maximum Performance
  • Efficient Heat Removal From Pulley Fan Cooler Running And Longer Compressor Life
  • Sturdy Metal Belt GAurd Protects Both The Belt and The Operator
  • Outlet Valve Included 3/4"Ball Valve Integrates EAsily Into Your System
  • 1 Year Factory Warranty
  • TMI198500

DIM:  35" x 24" x 68"

WEIGHT:  490 LBS

Item Description  Product Code
1 Compressor w/ Flywheel PV05AHP
2 Discharge Tube (2.5ft) ASSY TU-2634-1
3 Pressure Gauge PG200-2.5R
4 Air Receiver (tank) 80VE24X48-B      2
5 Drain Cock -Assembly 240-B
6 V-Belt A73
7 Belt Guard BG80GAL
8 Motor - 1 Phase, 208/230V EM07.5-18-10
  Magnetic Starter 1062MS
9 Wiring Harness 12/3-24-C4
  Check Valve P1010S-T
10 Pressure Switch 21UCBDB-CH
11 Pulley - Motor 2MAL82
12 Unloader Tube  TU-1/4-CU
13 **Fittings Required for TU-1/4CU 68-4A
14 Safety Valve PSV1/4-170
15 Outlet Valve BV3/4MF
  Eagle Compressor Oil EAOIL10

Item Description Part Number Quantity
1 Intake Filter Assembly 51124-5600 2
2 Cylinder Head 52133-0101 2
3 Lift Limiter - Discharge Valve Plate 51121-3102 8
4 Valve Plate 52133-2101 2
5 Valve Plate to Head Gasket 52133-2105 2
6 Discharge Reed Valve 51121-2103 8
7 Intake Reed Valve 52133-2103 2
8 Valve Plate to Cylinder Gasket 52133-2104 2
9 Piston 52133-5101 2
10 Piston Pin 52133-5112 2
11 Piston Pin Snap Ring 52133-5107
12 Connecting Rod C/W Dipper 52133-5120 2
13 Connecting Rod Bearing (Each) 51133-5109 4
14 Cylinder
52133-4101 2
15 Oil Filler Cap 51133-4719 1
16 Cylinder to Crankcase Gasket 52133-4103 2
17 Oil Sight Glass C/W Gasket 51111-4770T 1
18 Crankcase 52133-4701 1
19 Crankshaft 52133-4601 1
20 Front Bearing 83501-6306 1
21 Rear Bearing 83501-6306 1
22 Crankcase to Rear Bearing Housing Gasket 51133-4704 1
23 Rear Bearing Housing 51133-4703 1
24 Oil Seal 51133-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51133-6601 1
27 Front Bearing Housing 51133-4706 1
28 Crankcase to Front Bearing Housing Gasket 51133-4707 1
29 Connecting (Interstage) Tubing 52133-7710 1
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51124-7702 2
Interstage "Elbow" Fitting 51124-7701 1
Eagle oil (1250ml or 42oz) EAOIL10 1
Item Description Part Number
Quantity
A Intake Filter Element Kit Includes: 101000-310 2
1x Intake Filter Element

B Valve Repair Kit Includes: 101000-195 2
Valve Plate to Head Gasket (Item 5)
4x Outlet Reed Valves (Item 6)
4x Intake Reed Valve (Item 7)
4x Triangles
10x Valve Plate Screws
Valve Plate To Cylinder Gasket (Item 8)
C Ring Repair Kit Includes: 101000-295 2
Valve Plate to Head Gasket (Item 5)
Valve Plate to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 52133-2100 2
E Flywheel Fastener Kit (Not Shown) 51133-6621

Includes:
Big Washer
Lock Washer

Bolt
Description Part Number Quantity
Unloader 52122-0120 2
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 3ft
Cylinder Head 52133-0101U 2
