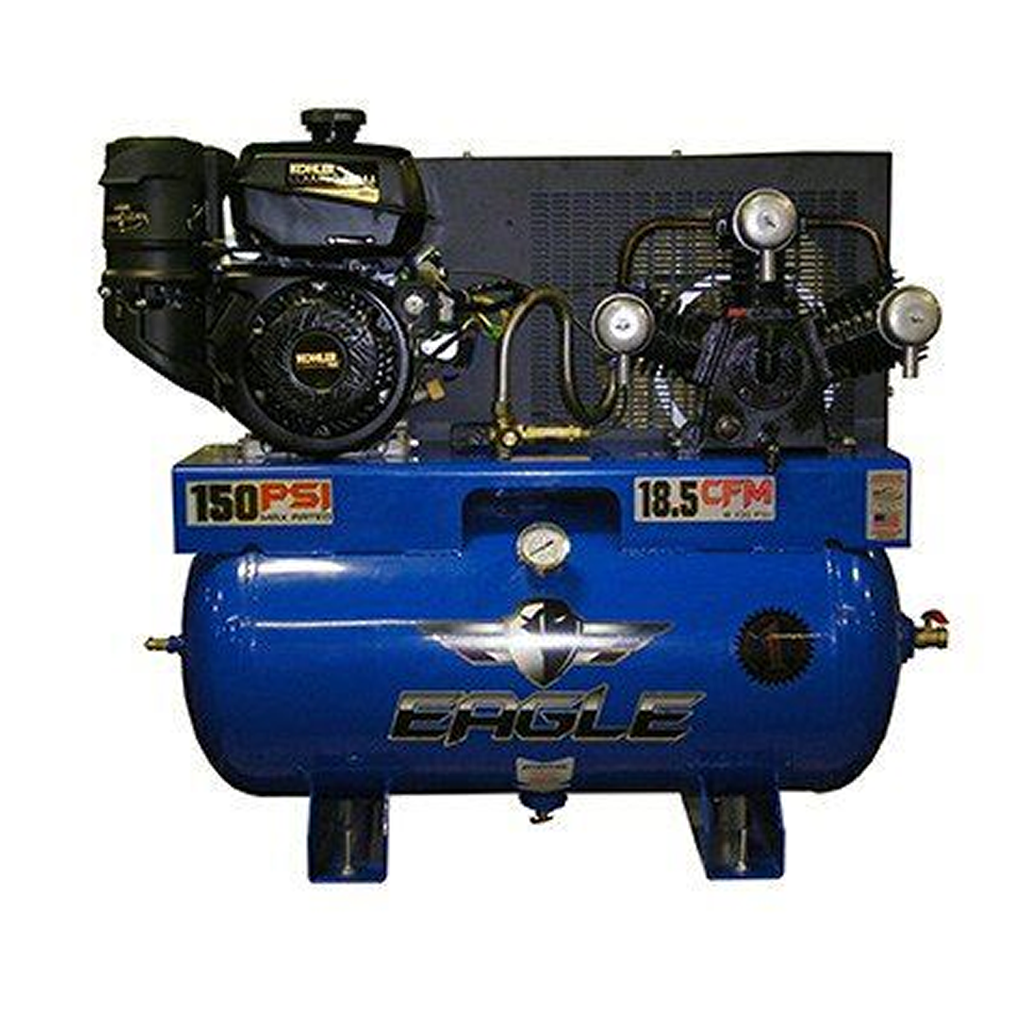

Eagle 9 5 Horsepower 30 Gallon Air Compressor

Eagle 9 5 Horsepower 30 Gallon Air Compressor

9G30TRKE-H-KP

$2,695.00 USD
$5,047.85 USD $2,695.00 USD
Sale Sold out



LIFT GATE FEES AND RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

This item ships truckline!

Features:

  • Rugged compressor with cast iron cylinders
  • "V" design minimizes vibration, improves cooling, and extends compressor life
  • Individual removable cylinders for smoother, cooler operation & easy maintenance
  • Engine idle control feature that reduces cost & excessive wear
  • 9.0 HP manual/electric start engine
  • Metal air filters with "auto drop" feature
  • Convenient oil drain on front of unit
  • 30 gallon ASME registered tank, 150 PSI rating
  • Easy view oil sight gauge
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from fly wheel for cooler running & longer life
  • Sturdy metal belt guard
  • Outlet valve included
  • 18.5 CFM @ 100 PSI
  • 200 Max Rated PSI
  • TMI230000
  • 42" x 19" x 39"
  • 297 LBS

Item Description  Product Code Price
1 Compressor w/ Flywheel PT03A $410.00
2 Discharge Tube (2.5ft) ASSY TU-20-AL $22.00
3 Pressure Gauge PG200-2.5R $12.00
4 Outlet Valve BV3/4MF $12.00
5 Air Receiver (tank) 30H16X38TRK-B $
6 Drain Cock -Assembly 240-B $12.00
7 V-Belt A66 $
8 Belt Guard BG30GAL $90.00
9 Engine GX-270UTQAE2-R $
10 Unloader LMV100F $90.75
11 Pulley - Engine MA38X1 $
12 Safety Valve PSV1/4-170 $10.00
13 Engine Control w/ Cable TCLP-36-3104 $40.87
Eagle Compressor Oil EAOIL10 $4.50



 Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
 1
21 Rear Bearing 83501-6205
 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
 3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
