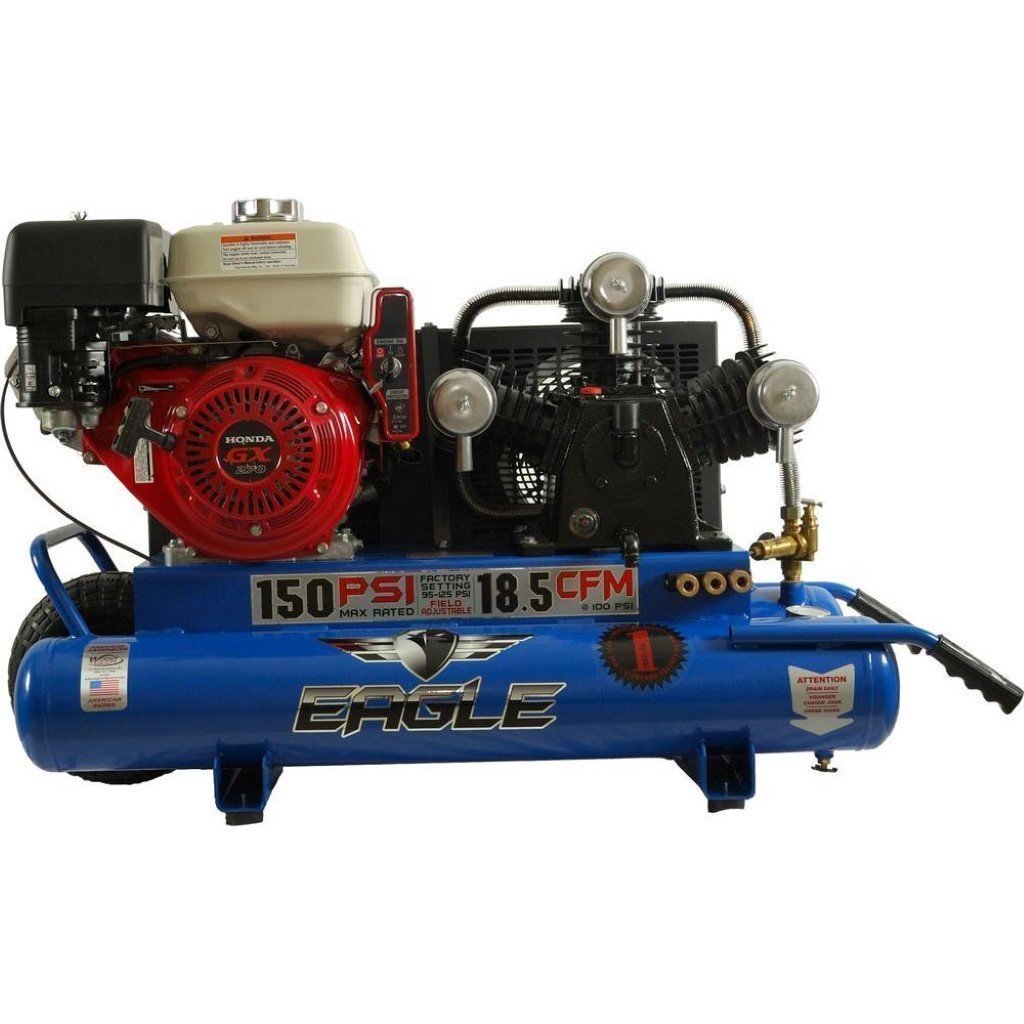

Eagle 9 HP 10 Gallon Air Compressor

TT90GE

Regular price $2,595.00 $1,825.00 Sale



Eagle Logo

Features

  • CFM / PSI: 18.5 CFM @ 100 PSI
  • Horse Power: 9.0 Honda Electric Start
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 10 ASME Certified
  • Electric Motor: GX270
  • Motor RPM: 3450
  • Bare Comp. RPM: 1230
  • Amp Draw: Gas
  • Pressure Switch: 95-125

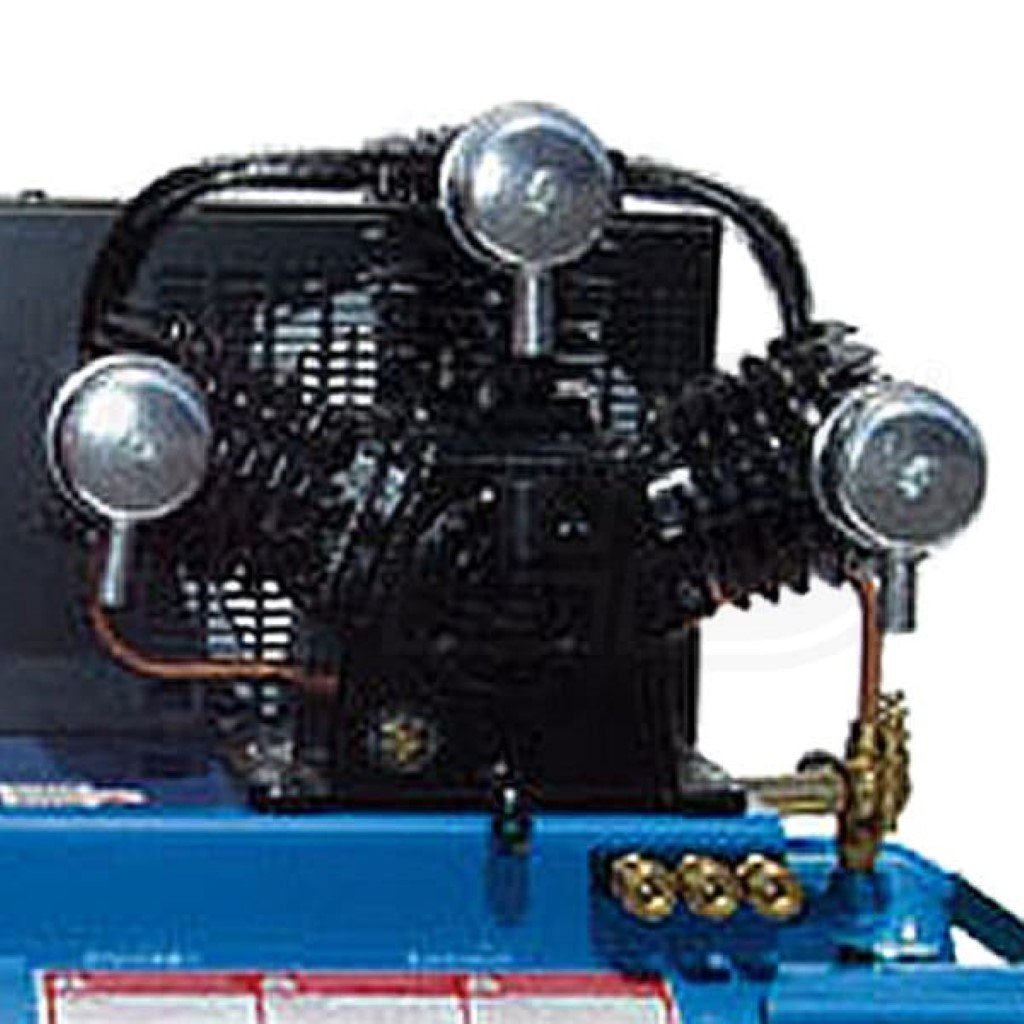

  • Rugged Compressor With Cast Iron Cylinders
  • V-Design Minimizes Vibration, Improves Cooling, • & Extends Compressors Life
  • 10 Gallon Twin Tanks Largest in the Industry
  • Individual & Removeable Cylinders
  • Steel Rim Pneumatic Tire
  • Metal Air Filters with Auto Drop Feature
  • Convenient Oil Drain on Front of Unit
  • Easy View Oil Sight
  • High Efficiency Reed Valves
  • Efficient Heat Removal From Fly Wheel for Cooler • Running Temps and Longer Lifespan
  • Sturdy Metal Belt Guard
  • Outlet Control Regulator With Quick Connectors
  • Engine Slow Down Control
  • 1 Year Limited Warranty
  • TMI145000

DIM:  50" x 18" x 28"

WEIGHT:  220 LBS

Eagle 9 HP 10 (TT90GE) Gallon Air Compressor Technical Drawing



Item Description  Product Code Price
1 Compressor w/ Flywheel PT03A Pump Assembly $410.00
2 Pressure Gauge PG200-2.5SI1/4 $12.00
3 Discharge Tube (2.5ft) ASSY TU-23-AL $30.00
4 Air Receiver (tank) 10TT41X5-B $
5 Drain Cock -Assembly 240-B $12.00
6 V-Belt A54 $15.00
7 Belt Guard TT-GUARD $
8 Engine GX-270UTQAE2-R $
9 Unloader LMV100F $90.75
10 Pulley - Engine MA38X1 $
11 Safety Valve PSV1/4-170 $10.00
12 Engine Control w/ Cable TCLP-48-3104 $40.87
13 Handle Grip TT-GRIP $2.50
14 Vibration Dampner TT-FOOT $2.50
15 Pneumatic Wheel TT-WHEEL-SQ-FF $24.04
16 Coupler CPL-TRI $32.96
17 Hose Assembly - Regulator TT-HOSE-B $
18 Pressure Gauge (regulator) PT0160 $22.80
  Eagle Compressor Oil EAOIL10 $4.50
Regulator R202-1/4 $32.00
Axle WA1001 $10.00



 Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
1
21 Rear Bearing 83501-6205
1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
