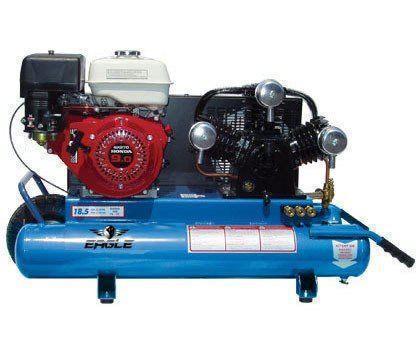

Eagle Gas Air Compressor 9HP Honda Twin Tank 10 Gallon Manual Start

Eagle Gas Air Compressor 9HP Honda Twin Tank 10 Gallon Manual Start

TT90G

$2,007.90 USD
$2,633.60 USD $2,007.90 USD
Sale Sold out


LIFT GATE FEES & RESIDENTIAL FEES MAY APPLY ON TOP OF SHIPPING FEES

THIS ITEM SHIPS TRUCKLINE

CFM / PSI

18.5 CFM @ 100 PSI
HORSEPOWER

9.0 Honda Engie
MAX RATED PSI

150
AIR TANK CAPACITY

10
ELECTRIC MOTOR

GX270
MOTOR RPM

3450
BARE COMP. RPM

1230
AMP DRAW

GAS
PRESSURE SWITCH

95-125
LENGTH (IN.)

50
WIDTH (IN.)

18
HEIGHT (IN.)

28
WEIGHT (LBS.)

220
  • Recoil Start Engine
  • Engine Has Low Oil Shut Down And Auto Idle
  • Pump Material Solid Cast Iron
  • Pump Type Single Stage
  • Max PSI 150 PSI
  • Oil Sight Glass
  • Pump Drive Belt Drive
  • Honda GX270 Has A 5.6 Qt Gas Tank Lets You Work Longer Between Fill Ups
  • Commercial Grade Engine Starts Easily, Runs Reliably
  • High Flow 3 Cylinder Pump Minimizes Vibration, Improves Cooling And Extends Compressor Life
  • Individual And Removable Cylinders For Smoother, Cooler Operation
  • Belt Drive Protective All Metal Belt Guard
  • Delivers 18.5 CFM at 100 PSI; 150 PSI Max
  • Metal air Filters With Auto Drop Provides a Cleaner, Quieter Air Supply
  • Oil Level Sight Glass Simplifies Maintenance And Routine Checks
  • Two 5- Gallon Air Tanks With Triple Quick Connects
  • Easily Run 3 Hoses At Once For Maximum Efficiency
  • 10 gallon Total Is Ideal For Framing, Roofing, And Finish Nailing
  • Oversize Flat Free Tire Easily maneuvers Around Job Sites
  • Roll Bar Over Tire Can Be Used To Help Load The Compressor
  • 1 Year Factory Warranty
  • TMI165790
Eagle 9 HP 10 (TT90GE) Gallon Air Compressor Technical Drawing



Item Description  Product Code
1 Compressor w/ Flywheel PT03A Pump Assembly
2 Pressure Gauge PG200-2.5SI1/4
3 Discharge Tube (2.5ft) ASSY TU-23-AL
4 Air Receiver (tank) 10TT41X5-B
5 Drain Cock -Assembly 240-B
6 V-Belt A54
7 Belt Guard TT-GUARD
8 Engine GX-270UT1QA2-R
9 Unloader LMV100F
10 Pulley - Engine MA38X1
11 Safety Valve PSV1/4-170
12 Engine Control w/ Cable TCLP-48-3104
13 Handle Grip TT-GRIP
14 Vibration Dampner TT-FOOT
15 Pneumatic Wheel TT-WHEEL-SQ-FF
16 Coupler CPL-TRI
17 Hose Assembly - Regulator TT-HOSE-B
18 Pressure Gauge (regulator) PT0160
  Eagle Compressor Oil EAOIL10
Regulator R202-1/4
Axle WA1001



 Item Description Part Number Quantity
1 Intake Filter Assembly 51111-5600 3
2 Cylinder Head 52122-0101 3
3 Lift Limiter - Discharge Valve Reed 51121-3102 6
4 Valve Plate 52122-2101 3
5 Valve Plate to Head Gasket 52122-2105 3
6 Discharge Valve Reed 51121-2103 6
7 Intake Valve Reed 52122-2103 3
8 Valve Plate to Cylinder Gasket 52122-2104 3
9 Piston 51122-5101 3
10 Piston Pin 51122-5112 3
11 Piston Pin Snap Ring 51122-5107
12 Connecting Rod c/w Dipper 51122-5120 3
13 Connecting Rod without Dipper 52122-5120
14 Cylinder 52122-4101 3
15 Oil Filter Cap 51111-4719 1
16 Cylinder to Crankcase Gasket 51122-4103 3
17 Oil Sight Glass c/w Gasket 51111-4770 1
18 Crankcase 51132-4701 1
19 Crankshaft 51132-4601 1
20 Front Bearing 83501-6205
 1
21 Rear Bearing 83501-6205
 1
22 Crankcase to Rear Bearing Housing Gasket 51122-4704 1
23 Rear Bearing Housing 51122-4703 1
24 Oil Seal 51122-4708 1
25 Crankcase Breather 51111-4761 1
26 Flywheel 51132-6601 1
27 Front Bearing Housing 51122-4706 1
28 Crankcase to Front Bearing Housing Gasket 51122-4707 1
29 Connecting (Interstage) Tubing 51132-7710 2
30 Metal Triangle For Valve Plate Assembly (Not Shown) 51121-3101 2
1/4" Street Elbow (Oil Drain) STREL1/4 1
Interstage "Y" Fitting 51121-7702 2
Interstage "Elbow" Fitting 51112-7701 1
Eagle Oil (650ML or 22OZ) EAOIL10 1



 Item Description Part Number Quantity
A Intake Filter Element Kit Includes: 51121-5614C 1
- 3 Intake Filter Elements
B Valve Repair Kit Includes: 101000-165
 3
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
Metal Triangle for Valve Plate Assy (Item 30)
C Ring Repair Kit Includes: 101000-265 2
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 51121-2100 3
E Flywheel Fastener Kit 51132-6602 1
E Head Unloader Kit Includes:
Unloader 52122-0120 3
Unloading Elbow 69926-050101 1
Unloading Tee 69927-050101 1
Unloading Tube TU-1/4-CU 5ft
Cylinder Head 51121-0101U 3
