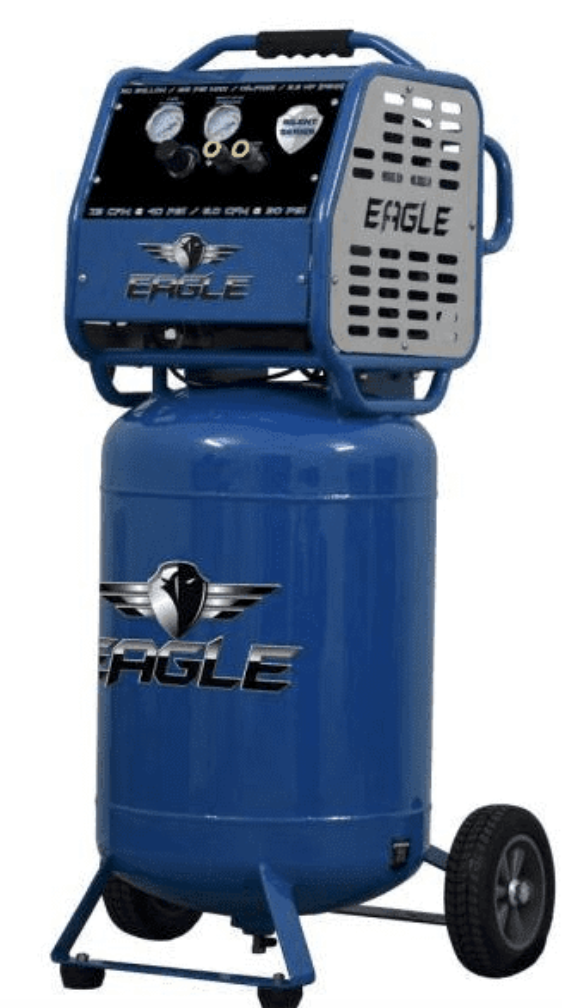

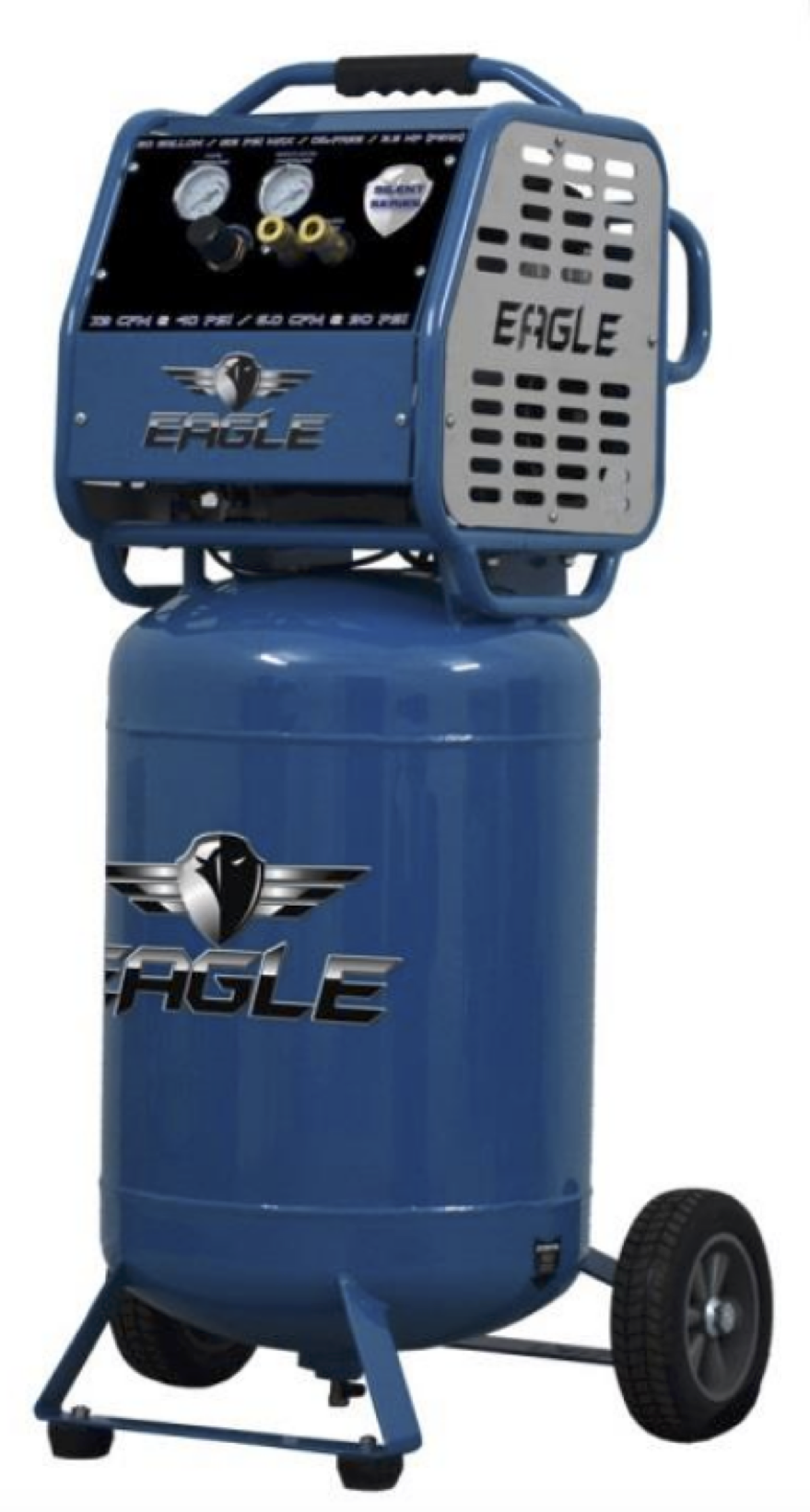

Eagle Silent Series 2 HP 20 Gallon Air Compressor
Eagle Silent Series 2 HP 20 Gallon Air Compressor
EA-6500
Regular price
$799.00 USD
Regular price
$999.99 USD
Sale price
$799.00 USD
Unit price
per
Couldn't load pickup availability
THIS ITEM SHIPS TRUCKLINE
A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!
Features:
- Life expectancy more than 4x more than most oil free air compressors
- Oil free
- Silent series
- 125 PSI Max
- Quick connect & regulator included
- 20 Gallon Tank
- 6.0 CFM @ 90 PSI
- 7.9 CFM @ 40 PSI
- Induction motor 2 HP
- Lever type tank drain
- 115 Volt AC
- 1 Phase
- Amp Draw 14
- DBA 53
- Tank Outlet 1/4"
- Silent Series Rated at 53 DBA From 25 Feet Away; Softer Than Most conversations
- Life Expectancy More Than 4 Times Longer than Most Oil Free Air Compressors
- 2 Hp Running And 2.5 Hp (Peak) Motor
- Draws Only 14 Amps Works On Most Household 115 V Outlets
- Oil Free Double Piston Pump System Produces 6 CFM at 90 PSI; 7.9 CFM at 40 Psi With A 50 % Duty Cycle To Power Snall Air Tools
- Oil Free system Requres No Pump Maintenance
- Top Mounted Control Panel
- Dual Gauges To Monitor Tool And Tank Pressure At A Glance
- Two 1/4"Air Hose Quick Connectors For Fast Tool Changes
- Oversized Regulator Knob Is Easy To Use, Even Wearign Work Gloves
- 20 Gallon Air Tank Easy To Transport And Store 125 PSI Maximum Pressure
- Lever Type Tank Drain Valve Simplifies Maintenace Extends Air Tank LIfe
- Roll Cage Design With Anti Vibration Feet
- Never Flat Wheels Take On Strairs And Rugged Terrain With Ease
- 1 Year Factory Warranty
- 226# 40X48X60
- TMI64900

| Item # | Quantity | Description | Part Numbers |
| 1 | 1 | Tank | EA-6500-001 |
| 2 | 2 | Handle Sleeve | EA-6500-002 |
| 3 | 1 | Back Panel | EA-6500-003 |
| 4 | 20 | Bolt | EA-6500-004 |
| 5 | 1 | Soft Starter | EA-6500-005 |
| 6 | 1 | Three Way Fitting | EA-6500-006 |
| 7 | 1 | Exhaust Tube | EA-6500-007 |
| 8 | 1 | Check Valve | EA-6500-008 |
| 9 | 1 | Nut | EA-6500-009 |
| 10 | 1 | Cutting Sleeve | EA-6500-010 |
| 11 | 2 | Tube Insert | EA-6500-011 |
| 12 | 1 | Unloading Pipe | EA-6500-012 |
| 13 | 1 | Pump | EA-6500-013 |
| 14 | 1 | Right Side Panel | EA-6500-014 |
| 14A | 1 | Left Side Panel | EA-6500-014A |
| 15 | 1 | Piston Cap |
EA-6500-015 |
| 16 | 3 | Power Cord Isolator | EA-6500-016 |
| 17 | 2 | Manifold Plug | EA-6500-017 |
| 18 | 1 | Safety Valve | EA-6500-018 |
| 19 | 1 | Pressure Switch | EA-6500-019 |
| 20 | 1 | Flexible Joint | EA-6500-020 |
| 21 | 1 | Straight Joint | EA-6500-021 |
| 22 | 2 | Nut | EA-6500-022 |
| 23 | 2 | Capacitor Cover Screw | EA-6500-023 |
| 24 | 1 | Capacitor Cover | EA-6500-024 |
| 25 | 1 | Capacitor | EA-6500-025 |
| 26 | 1 | Front Panel | EA-6500-026 |
| 27 | 2 | Pressure Gauge | EA-6500-027 |
| 28 | 2 | Quick Connect | EA-6500-028 |
| 29 | 1 | Regulator Valve | EA-6500-029 |
| 30 | 1 | Elbow | EA-6500-030 |
| 31 | 1 | Nylon Tube | EA-6500-031 |
| 32 | 2 | Bolt | EA-6500-032 |
| 33 | 2 | Foot | EA-6500-033 |
| 34 | 4 | Flat Washer | EA-6500-034 |
| 35 | 2 | Nut | EA-6500-035 |
| 36 | 1 | Ball Valve | EA-6500-036 |
| 37 | 2 | Wheel | EA-6500-037 |
| 38 | 2 | Wheel Shaft | EA-6500-038 |
| 39 | 1 | Power Cord | EA-6500-039 |

| Item # | Quantity | Description | Part Numbers |
| 1 | 12 | Screw | EA-6500P-001 |
| 2 | 12 | Cushion | EA-6500P-002 |
| 3 | 2 | Cylinder Head | EA-6500P-003 |
| 4 | 2 | Seal | EA-6500P-004 |
| 5 | 4 | Screw | EA-6500P-005 |
| 6 | 4 | Limit Range Implement | EA-6500P-006 |
| 7 | 6 | Valve Block | EA-6500P-007 |
| 8 | 2 | Valve Board | EA-6500P-008 |
| 9 | 2 | O-Ring | EA-6500P-009 |
| 10 | 4 | Valve Block | EA-6500P-010 |
| 11 | 2 | Valve Plate Clamp | EA-6500P-011 |
| 12 | 2 | Screw | EA-6500P-012 |
| 13 | 2 | Cylinder | EA-6500P-013 |
| 14 | 2 | Screw | EA-6500P-014 |
| 15 | 2 | Piston Cap | EA-6500P-015 |
| 16 | 2 | Piston Cup | EA-6500P-016 |
| 17 | 2 | Connecting Rod | EA-6500P-017 |
| 18 | 2 | Heightening The Lining | EA-6500P-018 |
| 19 | 2 | Wind Scooper | EA-6500P-019 |
| 20 | 4 | Screw | EA-6500P-020 |
| 21 | 1 | A Fan | EA-6500P-021 |
| 22 | 2 | Crank | EA-6500P-022 |
| 23 | 2 | Bearing | EA-6500P-023 |
| 24 | 4 | Screw | EA-6500P-024 |
| 25 | 2 | Circlip For Shaft | EA-6500P-025 |
| 26 | 1 | Screw | EA-6500P-026 |
| 27 | 1 | Serrated Lock Washers Internal Teeth | EA-6500P-027 |
| 28 | 2 | Power Cord Buckle | EA-6500P-028 |
| 29 | 1 | Right Crankcase | EA-6500P-029 |
| 30 | 4 | Cushion | EA-6500P-030 |
| 31 | 4 | Bolt | EA-6500P-031 |
| 32 | 1 | Motor Stator | EA-6500P-032 |
| 33 | 1 | Motor Rator | EA-6500P-033 |
| 34 | 2 | Bearing | EA-6500P-034 |
| 35 | 1 | Left Crankcase | EA-6500P-035 |
| 36 | 4 | Nut | EA-6500P-036 |
| 37 | 4 | Shock Pad | EA-6500P-037 |
| 38 | 4 | Nut | EA-6500P-038 |
| 39 | 1 | B Fan | EA-6500P-039 |
| 40 | 4 | O-Ring | EA-6500P-040 |
| 41 | 2 | Gas-Guide Tube | EA-6500P-041 |
| 42 | 2 | Hush Pipe | EA-6500P-042 |
| 43 | 2 | Air Filter | EA-6500P-043 |
| 44 | 1 | Plug | EA-6500P-044 |
