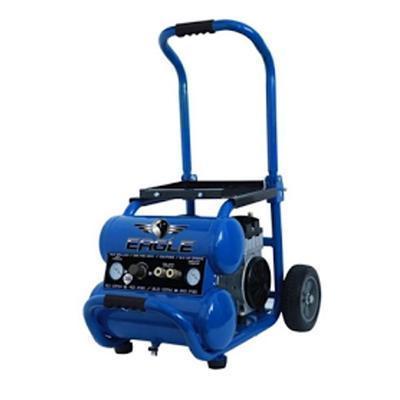

Eagle Silent Series 1.5 HP 5.5 Gallon Compressor
Eagle Silent Series 1.5 HP 5.5 Gallon Compressor
EA-5000
Regular price
$559.00 USD
Regular price
$480.00 USD
Sale price
$559.00 USD
Unit price
per
Couldn't load pickup availability

THIS ITEM SHIPS TRUCKLINE
Features
- Life Expectancy More Than 4x More Than Most Oil Free Air Compressors
- Oil Free
- Silent Series
- 125 PSI Max
- Quick Connect & Regulator Included
- 5.5 Gallon Tank
- 5.0 CFM @ 90 PSI
- 6.1 CFM @ 40 PSI
- Induction Motor 1.5 HP
- 115 Volt AC
- 1 Phase
- Amp Draw 8
- DBA 49
- Oil Free
- Duty Cycle 50 %
- Lever Type Tank Drain
- Heavy Duty Pressure Switch
- 49 Db @ 25ft.
- Pump Type: Oil Free Double Piston
- Silent Series Rated at 49 DBA From 25 Feet Away Softer Than Most conversations
- Life Expectancy More Than 4 Times Longer Than Most OIl free Air Compressors
- 1.5 Running HP & 2 Hp (Peak) MOtor
- Draws Only 8 Amps Works On Most Household 115 volt Outlets
- Oil Free System REquires No Pump Maintenance
- Top Mounted Control Panel
- Dual Gauges To Monitor Tool And Tank Pressure At A Glance
- Two 1/4"Air HOse Quick Connectors For Fast Tool Changes
- Oversized REgulator Knov Is Easy To Use Even Wearing work Gloves
- 5.5 Gallons Of Air In Two Tanks
- Easy To Carry, Transport & Store 125 PSI Maximum Pressure
- Lever Type Tank Drain Valve
- Simplifies Maintenace Extends Air Tank LIfe
- Roll Cage Design With Fold Down Handle & Anti Vibration Feet
- Handle Folds Down For Easy Transport And Storage
- Never Flat Wheels Take On Stairs And Rugged terrain With Ease
- 1 Year Factory Warranty
- TMI43000
DIM: 28.3" x 20" x 20"
WEIGHT: 86 LBS
| Item # | Quantity | Description | Part Numbers |
| 1 | 12 | Head Bolt Screw | EA-5000-001 |
| 2 | 12 | Flat Washer | EA-5000-002 |
| 3 | 2 | Cylinder Head | EA-5000-003 |
| 4 | 2 | Head Gasket | EA-5000-004 |
| 5 | 2 | Valve Screw | EA-5000-005 |
| 6 | 2 | Valve Limiter | EA-5000-006 |
| 7 | 2 | Valve | EA-5000-007 |
| 8 | 2 | Valve | EA-5000-008 |
| 9 | 2 | Valve Plate | EA-5000-009 |
| 10 | 2 | O-Ring | EA-5000-010 |
| 11 | 2 | Valve | EA-5000-011 |
| 12 | 2 | Valve Clamp | EA-5000-012 |
| 13 | 2 | Valve Screw | EA-5000-013 |
| 14 | 2 | Cylinder Head | EA-5000-014 |
| 15 | 2 | Piston Screw | EA-5000-015 |
| 16 | 2 | Piston Cap | EA-5000-016 |
| 17 | 2 | Piston Ring | EA-5000-017 |
| 18 | 2 | Connecting Rod | EA-5000-018 |
| 19 | 2 | Cylinder Extension | EA-5000-019 |
| 20 | 2 | Fan Guard | EA-5000-020 |
| 21 | 4 | Fan Guard Screw | EA-5000-021 |
| 22 | 1 | A Fan | EA-5000-022 |
| 23 | 2 | Crank | EA-5000-023 |
| 24 | 2 | Bearing | EA-5000-024 |
| 25 | 4 | Counter Weight Screw | EA-5000-025 |
| 26 | 2 | Metal Snap O-Ring For Shaft | EA-5000-026 |
| 27 | 1 | Screw | EA-5000-027 |
| 28 | 1 | Serrated Lock Washers Internal Teeth | EA-5000-028 |
| 29 | 2 | Power Cord Isolator | EA-5000-029 |
| 30 | 1 | Right Crankcase | EA-5000-030 |
| 31 | 4 | Flat Washer | EA-5000-031 |
| 32 | 4 | Thru Bolt | EA-5000-032 |
| 33 | 1 | Motor Stator | EA-5000-033 |
| 34 | 1 | Motor Rator | EA-5000-034 |
| 35 | 2 | Bearing | EA-5000-035 |
| 36 | 1 | Left Crankcase | EA-5000-036 |
| 37 | 4 | Nut | EA-5000-037 |
| 38 | 4 | Motor Isolator | EA-5000-038 |
| 39 | 4 | Nut | EA-5000-039 |
| 40 | 1 | B Fan | EA-5000-040 |
| 41 | 2 | Cross Over Tube | EA-5000-041 |
| 42 | 4 | O-Ring | EA-5000-042 |
| 43 | 2 | Air Filter | EA-5000-043 |
| 44 | 2 | Air Filter Pipe | EA-5000-044 |
| 45 | 1 | Head Plug | EA-5000-045 |
| 46 | 1 | Capacitor | EA-5000-046 |
| 47 | 2 | Capacitor Cover Screw | EA-5000-047 |
| 48 | 2 | Flat Washer | EA-5000-048 |
| 49 | 1 | Capacitor Cover Screw | EA-5000-049 |
| 50 | 1 | Power Cord | EA-5000-050 |
| 51 | 3 | Handle Grip | EA-5000-051 |
| 52 | 1 | Handle | EA-5000-052 |
| 53 | 2 | Nut | EA-5000-053 |
| 54 | 2 | Flat Washer | EA-5000-054 |
| 55 | 2 | Bolt | EA-5000-055 |
| 56 | 2 | Extension Spring | EA-5000-056 |
| 57 | 1 | Hand Rod | EA-5000-057 |
| 58 | 2 | Flat Washer | EA-5000-058 |
| 59 | 8 | Hand Rod Screw | EA-5000-059 |
| 60 | 1 | Tool Plate | EA-5000-060 |
| 61 | 4 | Tool Tray Screw | EA-5000-061 |
| 62 | 2 | Bolt | EA-5000-062 |
| 63 | 1 | Tank | EA-5000-063 |
| 64 | 2 | Wheel | EA-5000-064 |
| 65 | 2 | Wheel Shaft | EA-5000-065 |
| 66 | 2 | Flat Washer | EA-5000-066 |
| 67 | 2 | Foot | EA-5000-067 |
| 68 | 2 | Bolt | EA-5000-068 |
| 69 | 1 | Ball Valve | EA-5000-069 |
| 70 | 1 | Instrument Panel | EA-5000-070 |
| 71 | 1 | Pressure Gauge | EA-5000-071 |
| 72 | 2 | Quick Connect | EA-5000-072 |
| 73 | 1 | Regulator Valve | EA-5000-073 |
| 74 | 3 | Screw | EA-5000-074 |
| 75 | 1 | Pressure Gauge | EA-5000-075 |
| 76 | 1 | Safety Valve | EA-5000-076 |
| 77 | 2 | Nut | EA-5000-077 |
| 78 | 2 | Straight Joint | EA-5000-078 |
| 79 | 1 | Pressure Switch | EA-5000-079 |
| 80 | 1 | Flexible Joint | EA-5000-080 |
| 81 | 1 | Flexible Joint Nut | EA-5000-081 |
| 82 | 2 | Gasket | EA-5000-082 |
| 83 | 1 | Easy Start | EA-5000-083 |
| 84 | 1 | Three-Way Valve | EA-5000-084 |
| 85 | 1 | Nylon Pipe | EA-5000-085 |
| 86 | 1 | Exhaust Tube | EA-5000-086 |
| 87 | 2 | Seal Cushion | EA-5000-087 |
| 88 | 1 | Check Valve | EA-5000-088 |
| 89 | 2 | Tube Inset | EA-5000-089 |
| 90 | 1 | Unloading Pipe | EA-5000-090 |
| 91 | 1 | Ferrel Sleeve | EA-5000-091 |
| 92 | 1 | Ferrel Nut | EA-5000-092 |
