Tool Mart, Inc. ships from Mississippi

Eagle Silent Series .75 HP 1 Gallon Compressor-eagle air compressors-Tool Mart Inc.

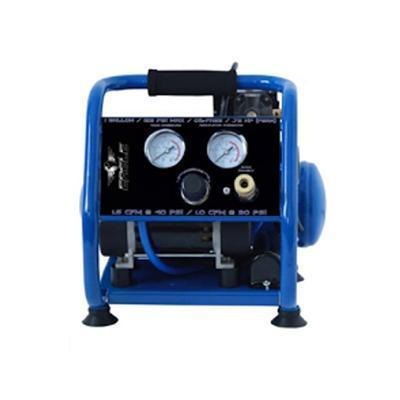

Eagle Silent Series .75 HP 1 Gallon Compressor

EA-2000

Regular price $325.00 $175.00 Sale

Features

  • 125 PSI Max
  • Oil Free
  • Silent Series
  • Quick Connect & Regulator Included
  • 1 Gallon Tank
  • 1.6 CFM @ 40 PSI
  • 1.0 CFM @ 90 PSI
  • Induction Motor
  • .75 Hp
  • 115 Volt AC
  • 1 Phase
  • DBA 44
  • Amp Draw 3.5
  • Pump Material Aluminum
  • Pump Type Single Stage
  • Max PSI 125
  • OIl Free
  • Duty Cycle 50 %
  • Lever Type Tank Drain
  • Heavy Duty Pressure Switch
  • Silenet Series Rated at 44 DBA From 25 Feet Away ; Softer Than Most Conversations
  • Life Expectancy More Than 4 Times Longer Than Most Oil Free Air Compressors
  • .75 HP Peak Motor Draws Only 3.5 Amps Works On Most Household 115 Volt Outlets
  • Oil Free Double Pison Pump System Produces 1 CFM At 90 PSI; 1.6 CFM at 40 PSI With A f50 5 Duty Cycle To Power Small Air Tools
  • Oil Free System Requirs No Pump Maintanance
  • Top Mounted Control Panel Dual Gauges To Monitor Tool And Tank Pressure At A Glance
  • Single 1/4"Air Hose Quick Connector Simplifies Tool Use
  • Oversized Regulator KNob Is EAsy To Use Even Wearing Work Gloves
  • 1 Gallon Hot Dog Style Tank
  • EAsy To Carry Transport And Store 125 PSi Maximum Pressure
  • Lever Type Tank Drain Valve
  • Simplifies Maintenace Extends Air Tank Life
  • Roll Cage Desing With Anti Vibration Feet
  • Protects The Pump; Foam Handle Is Easy On Your Hands
  • Helps Keep The Compressor Steady And Quiet
  • 1 Year Factory Warranty
  • TMI17500

DIM:  14" x 13.7" x 12.6"

WEIGHT:  25LBS

Item Number Quantity Description Part Number
1 8 Head Bolt Screw EA-2000-001
2 8 Head Bolt Washer EA-2000-002
3 2 Cylinder Head EA-2000-003
4 2 Valve Limiter Screw EA-2000-004
5 2 Valve Limiter EA-2000-005
6 4 Valve EA-2000-006
7 2 Head Gasket EA-2000-007
8 2 Valve Plate EA-2000-008
9 2 Valve Clamp EA-2000-009
10 2 Valve Screw EA-2000-010
11 2 Cylinder to Valve Plate O-Ring EA-2000-011
12 2 Piston Screw EA-2000-012
13 2 Cylinder EA-2000-013
14 2 Piston Cap EA-2000-014
15 2 Teflon Ring EA-2000-015
16 2 Connecting Rod EA-2000-016
17 2 Connecting Rod Screw EA-2000-017
18 4 Crossover Tube EA-2000-018
19 6 O-Ring EA-2000-019
20 6 Fan Guard Screw EA-2000-020
21 6 Fan Guard Washer EA-2000-021
22 2 Flat Washer EA-2000-022
23 2 Fan Guard EA-2000-023
24 2 Fan EA-2000-024
25 2 Fan Screw EA-2000-025
26 2 Counter Weight Crank EA-2000-026
27 1 Bearing EA-2000-027
28 2 Left Crankcase EA-2000-028
29 1 Bearing EA-2000-029
30 1 Motor Rator EA-2000-030
31 4 Motor Stator EA-2000-031
32 4 Through Bolt EA-2000-032
33 1 Flat Washer EA-2000-033
34 1 Right Crankcase EA-2000-034
35 1 Air Filter EA-2000-035
36 4 Filter Pipe EA-2000-036
37 4 Isolator EA-2000-037
38 1 Nut EA-2000-038
39 1 Elbow EA-2000-039
40 1 Discharge Tube EA-2000-040
41 1 Unloading Pipe EA-2000-041
42 2 Ferrel EA-2000-042
43 1 Lining EA-2000-043
44 1 Ferrel Nut EA-2000-044
45 1 Ball Valve EA-2000-045
46 2 Check Valve EA-2000-046
47 1 Frame Plug EA-2000-047
48 1 Tank EA-2000-048
49 1 Capacitor EA-2000-049
50 2 Capacitor Cover EA-2000-050
51 1 Capacitor Cover Screw EA-2000-051
52 4 Capacitor Rod EA-2000-052
53 4 Foot EA-2000-053
54 4 Foot Flat Washer EA-2000-054
55 2 Foot Bolt EA-2000-055
56 1 Power Cord Isolator EA-2000-056
57 1 Pressure Switch EA-2000-057
58 2 Safety Valve EA-2000-058
59 1 Gasket EA-2000-059
60 2 Quick Connect Fitting EA-2000-060
61 1 Pressure Gauge EA-2000-061
62 2 Quick Connect EA-2000-062
63 1 Mounting Screw EA-2000-063
64 3 Regulator EA-2000-064
65 2 Manifold Plug EA-2000-065
66 1 Elbow EA-2000-066
67 1 Nylon Tube EA-2000-067
68 1 Power Cord EA-2000-068
69 1 Power Cord Isolator EA-2000-069
70 1 Grip EA-2000-070
