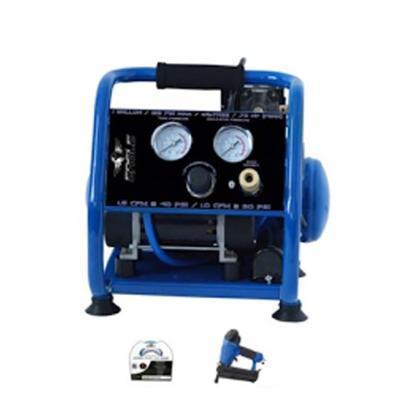

Eagle Silent Series 75 HP 1 Gallon Compressor with Nail Gun
Eagle Silent Series 75 HP 1 Gallon Compressor with Nail Gun
EA-2000NK2
Regular price
$299.00 USD
Regular price
$345.00 USD
Sale price
$299.00 USD
Unit price
per
Couldn't load pickup availability
LIFTGATE FEES & RESIDENTIAL FEES MAY STILL BE APPLIED ALTHOUGH THIS ITEM QUALIFIES FOR FREE SHIPPING
THIS ITEM SHIPS TRUCKLINE
Features
- Life Expectancy More Than 4x More Than Most Oil Free Air Compressors
- Oil Free
- Silent Series
- 125 PSI Max
- Quick Connect & Regulator Included
- 1 Gallon Tank
- Light Weight
- 1.6 CFM @ 40 PSI
- 1.0 CFM @ 90 PSI
- Induction Motor
- Lever Type Tank Drain
- Heavy Duty
- Pressure Switch
- Peak HP: .75 HP
- TMI25900
DIM: 14" x 13.7" x 12.6"
WEIGHT: 25 LBS
| Item Number | Quantity | Description | Part Number |
| 1 | 8 | Head Bolt Screw | EA-2000-001 |
| 2 | 8 | Head Bolt Washer | EA-2000-002 |
| 3 | 2 | Cylinder Head | EA-2000-003 |
| 4 | 2 | Valve Limiter Screw | EA-2000-004 |
| 5 | 2 | Valve Limiter | EA-2000-005 |
| 6 | 4 | Valve | EA-2000-006 |
| 7 | 2 | Head Gasket | EA-2000-007 |
| 8 | 2 | Valve Plate | EA-2000-008 |
| 9 | 2 | Valve Clamp | EA-2000-009 |
| 10 | 2 | Valve Screw | EA-2000-010 |
| 11 | 2 | Cylinder to Valve Plate O-Ring | EA-2000-011 |
| 12 | 2 | Piston Screw | EA-2000-012 |
| 13 | 2 | Cylinder | EA-2000-013 |
| 14 | 2 | Piston Cap | EA-2000-014 |
| 15 | 2 | Teflon Ring | EA-2000-015 |
| 16 | 2 | Connecting Rod | EA-2000-016 |
| 17 | 2 | Connecting Rod Screw | EA-2000-017 |
| 18 | 4 | Crossover Tube | EA-2000-018 |
| 19 | 6 | O-Ring | EA-2000-019 |
| 20 | 6 | Fan Guard Screw | EA-2000-020 |
| 21 | 6 | Fan Guard Washer | EA-2000-021 |
| 22 | 2 | Flat Washer | EA-2000-022 |
| 23 | 2 | Fan Guard | EA-2000-023 |
| 24 | 2 | Fan | EA-2000-024 |
| 25 | 2 | Fan Screw | EA-2000-025 |
| 26 | 2 | Counter Weight Crank | EA-2000-026 |
| 27 | 1 | Bearing | EA-2000-027 |
| 28 | 2 | Left Crankcase | EA-2000-028 |
| 29 | 1 | Bearing | EA-2000-029 |
| 30 | 1 | Motor Rator | EA-2000-030 |
| 31 | 4 | Motor Stator | EA-2000-031 |
| 32 | 4 | Through Bolt | EA-2000-032 |
| 33 | 1 | Flat Washer | EA-2000-033 |
| 34 | 1 | Right Crankcase | EA-2000-034 |
| 35 | 1 | Air Filter | EA-2000-035 |
| 36 | 4 | Filter Pipe | EA-2000-036 |
| 37 | 4 | Isolator | EA-2000-037 |
| 38 | 1 | Nut | EA-2000-038 |
| 39 | 1 | Elbow | EA-2000-039 |
| 40 | 1 | Discharge Tube | EA-2000-040 |
| 41 | 1 | Unloading Pipe | EA-2000-041 |
| 42 | 2 | Ferrel | EA-2000-042 |
| 43 | 1 | Lining | EA-2000-043 |
| 44 | 1 | Ferrel Nut | EA-2000-044 |
| 45 | 1 | Ball Valve | EA-2000-045 |
| 46 | 2 | Check Valve | EA-2000-046 |
| 47 | 1 | Frame Plug | EA-2000-047 |
| 48 | 1 | Tank | EA-2000-048 |
| 49 | 1 | Capacitor | EA-2000-049 |
| 50 | 2 | Capacitor Cover | EA-2000-050 |
| 51 | 1 | Capacitor Cover Screw | EA-2000-051 |
| 52 | 4 | Capacitor Rod | EA-2000-052 |
| 53 | 4 | Foot | EA-2000-053 |
| 54 | 4 | Foot Flat Washer | EA-2000-054 |
| 55 | 2 | Foot Bolt | EA-2000-055 |
| 56 | 1 | Power Cord Isolator | EA-2000-056 |
| 57 | 1 | Pressure Switch | EA-2000-057 |
| 58 | 2 | Safety Valve | EA-2000-058 |
| 59 | 1 | Gasket | EA-2000-059 |
| 60 | 2 | Quick Connect Fitting | EA-2000-060 |
| 61 | 1 | Pressure Gauge | EA-2000-061 |
| 62 | 2 | Quick Connect | EA-2000-062 |
| 63 | 1 | Mounting Screw | EA-2000-063 |
| 64 | 3 | Regulator | EA-2000-064 |
| 65 | 2 | Manifold Plug | EA-2000-065 |
| 66 | 1 | Elbow | EA-2000-066 |
| 67 | 1 | Nylon Tube | EA-2000-067 |
| 68 | 1 | Power Cord | EA-2000-068 |
| 69 | 1 | Power Cord Isolator | EA-2000-069 |
| 70 | 1 | Grip | EA-2000-070 |
