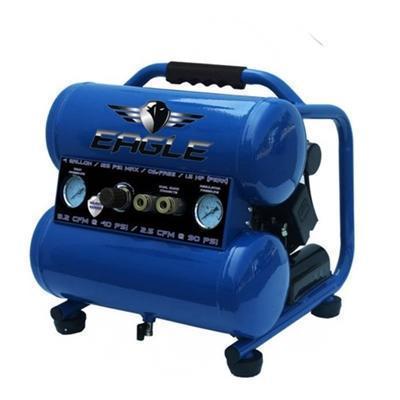

Eagle Silent Series 1 5 HP 4 Gallon Twin Tank Air Compressor EA 4000

Eagle Silent Series 1 5 HP 4 Gallon Twin Tank Air Compressor EA 4000

EA-4000

Regular price $411.00 USD
Regular price $406.15 USD Sale price $411.00 USD
Sale Sold out

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!

Features

  • Life Expectancy More Than 4x More Than Most Oil Free Air Compressors
  • Oil Free
  • Silent Series
  • 125 PSI Max
  • Quick Connect & Regulator Included
  • 4 Gallon Tank
  • 2.5 CFM @ 90 PSI
  • 3.2 CFM @ 40 PSI
  • Induction Motor 1 HP
  • 115Volt AC
  • 1 Phase
  • Amp Draw 7.2
  • DBA 47
  • Pump Material Aluminum
  • Pump Type Single Stage
  • Max PSI 125 PSI
  • Oil Free
  • Duty Cycle 50 %
  • Tank Outlet 1/4"
  • Lever Type Tank Drain
  • Rated At 47 DBA From 25 Feet Away Softer than Most Conversations
  • Life Expectancy More Than 4 Times Longer Than Most Oil Free Air Compressors
  • 1 Hp Running And 1.5 HP (Peak) Motor Draws Only 7.2 Amps, Works On Most HOusehold 115 v olt Outlets
  • Oil free Double Piston Pump System
  • Produces 2.5 CFM at 90 PSI ; 3.2 Cfm At 40 PSI With A 50 % Duty Cycle To Power Small Air Tools
  • OIl Free System Requires No Pump Maintenance
  • Top Mounted Control Panel Dual Gauges To Monitor Tool And Tank Pressure At A Glance
  • Two 1/4"Air HOse Quick Connectors For Fast Tool Changes
  • Oersized Regulator Knob Is Easy To Use Even Wearing Work Gloves
  • 4 Gallons Of Air In Two 2 Gallon Tanks
  • Easy To Carry, Transport, And Store 125 PSI Maximum Pressure
  • Lever Type Tank Drain Valve Simplifies Maintenace, Extends Air Tank Life
  • Roll Cage Desing With Anti Vibration Feet Protects The Pump And Helps Keep The Compressor Steady And Quiet
  • 1 Year Factory Warranty
  • TMI31000

DIM:  16.9" x 16.5" x 16.5"

WEIGHT:  69 LBS

Eagle Air Compressor Parts Diagram
Item # Quantity Description Part Numbers
1 12 Headbolt Screw EA-4000-001
2 12 Flat Washer EA-4000-002
3 2 Cylinder Head EA-4000-003
4 2 Head Gasket EA-4000-004
5 4 O-Ring EA-4000-005
6 2 Crossover Tube EA-4000-006
7$ 2 Valve Screw EA-4000-007
8 2 Valve Limiter EA-4000-008
9 4 Valve EA-4000-009
10 2 Valve Plate EA-4000-010
11 2 Valve Clamp EA-4000-011
12 2 Valve Screw EA-4000-012
13 2 Cylinder to Valve Plate O-Ring EA-4000-013
14 2 Cylinder EA-4000-014
15 2 Piston Screw EA-4000-015
16 2 Valve Plate EA-4000-016
17 2 Teflon Ring EA-4000-017
18 2 Connecting Rod EA-4000-018
19 2 Cylinder Extension EA-4000-019
20 2 Fan Guard EA-4000-020
21 2 Metal Snap Ring for Shaft EA-4000-021
22 1 B Fan EA-4000-022
23 4 Isolator EA-4000-023
24 4 Fan Guard Screw EA-4000-024
25 1 Left Crankcase EA-4000-025
26 2 Screw EA-4000-026
27 2 Bearing EA-4000-027
28 1 Motor Rator EA-4000-028
29 4 Nut EA-4000-029
30 1 Motor Stator EA-4000-030
31 4 Motor Stator Washer EA-4000-031
32 4 Through Bolt EA-4000-032
33 4 Isolator Nut EA-4000-033
34 2 Power Cord Isolator EA-4000-034
35 1 Right Crankcase EA-4000-035
36 4 Counter Weight Screw EA-4000-036
37 2 Bearing EA-4000-037
38 2 Counter Weight Crank EA-4000-038
39 1 A Fan EA-4000-039
40 1 Air Filter EA-4000-040
41 1 Filter Pipe EA-4000-041
42 1 Instrument Panel EA-4000-042
43 2 Quick Connect EA-4000-043
44 4 Mounting Screw EA-4000-044
45 1 Pressure Gauge EA-4000-045
46 1 Regulator Valve Stand EA-4000-046
47 5 Manifold Plug EA-4000-047
48 1 Pressure Gauge EA-4000-048
49 1 Elbow EA-4000-049
50 2 Nut EA-4000-050
51 1 Nylon Tube EA-4000-051
52 1 Ball Valve EA-4000-052
53 2 Plug EA-4000-053
54 4 Foot EA-4000-054
55 2 Flat Washer EA-4000-055
56 4 Foot Bolt EA-4000-056
57 2 Capacitor Cover Screw EA-4000-057
58 2 Flat Washer EA-4000-058
59 1 Capacitor Cover Screw EA-4000-059
60 1 Capacitor EA-4000-060
61 1 Twin Tank EA-4000-061
62 1 Grip EA-4000-062
63 1 Easy Valve Starter EA-4000-063
64 1 Elbow EA-4000-064
65 1 Discharge Tube EA-4000-065
66 2 Gasket EA-4000-066
67 1 Quick Connect Fitting Nut EA-4000-067
68 1 Quick Connect Fitting EA-4000-068
69 1 Straight Joint EA-4000-069
70 1 Safety Valve EA-4000-070
71 2 Power Cord Isolator EA-4000-071
72 1 Pressure Switch EA-4000-072
73 1 Check Valve EA-4000-073
74 1 Ferrel Nut EA-4000-074
75 1 Ferrel Sleeve EA-4000-075
76 2 Lining EA-4000-076
77 1 Nylon Tube EA-4000-077
78 1 Power Cord EA-4000-078
