Iron Horse 30 Gallon Two Stage Truck Mount Air Compressor With Electric Start Briggs and Stratton Engine

Iron Horse 30 Gallon Two Stage Truck Mount Air Compressor With Electric Start Briggs and Stratton Engine

IH12G30TRKE-BS

$2,575.00 USD
$2,500.00 USD $2,575.00 USD
Sale Sold out


Lift Gate & Residential Fees Will Still Be Applied!!

This item ships truckline.

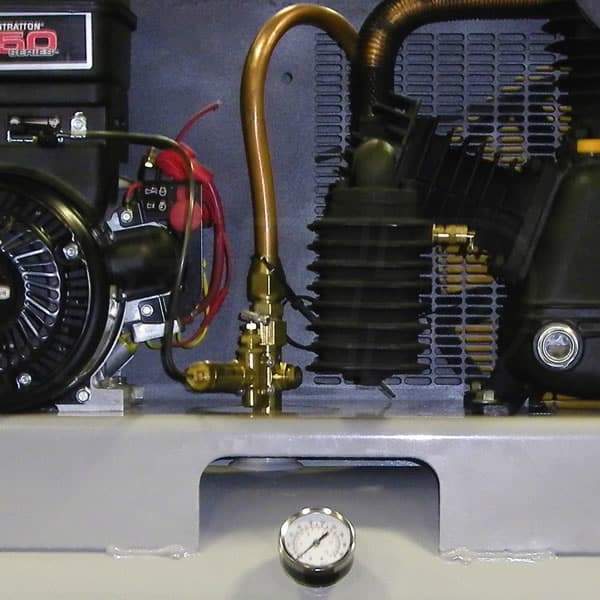

  • Truck Mounted 2 Stage Unit Produces 22 CFM @ 90 PSI
  • Designed for farm duty, hobbiest, and semi-pro jobs
  • Sturdy and reliable air pressure wherever you need it
  • Electric and manual start for ease of operation
  • Durable 14-HP Commercial Grade Briggs & Stratton Engine
  • OHV provides more power, less fuel-use & lower emissions
  • Runs cooler for longer engine life
  • Engine Idle Control
  • Control and regulates the engine idle speed
  • Reduces operating costs & excessive wear
  • Rugged 3 Cylinder Cast Iron Pump
  • High efficiency reed valves for maximum performance
  • Built to work hard and last a long time
  • Efficient heat removal from flywheel for cooler running
  • Individual & Removable Cylinders
  • Provide smoother & cooler operation
  • Allows for easy maintenance
  • "V" Style Design
  • Minimizes vibration, improves cooling, extends compressor life
  • Large bore pistons give the ability to run at less RPM
  • Large Air Filters With Automotive Drop-In Style Elements
  • Extend compressor life, easy to maintain
  • 30 Gallon ASME Tank
  • Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
  • Convenient oil drain on front of unit
  • Sturdy metal belt guard protects the belt & the user
  • Easy View Oil Sight Gauge
  • Monitor pump oil level at a glance
  • Simplifies maintenance
  • 1 Year Factory Warranty
  • Shipping Dimensions- 428# 40x48x50
  • TMI210000

Item Description Product Code
1 Compressor w/ Flywheel CC3090TS-AC
2 Discharge Tube (2.5ft) ASSY TU-3/4-CU
3 Pressure Gauge PG200-2.5R
4 Outlet Valve BV3/4MF
5 Air Receiver (tank) 30H16X38TRK-G
6 Drain Cock -Assembly 240-B
7 V-Belt B71
8 Belt Guard BG30GAL
9 Engine BS-25N1370014F1
10 Unloader NG-38-M-120-150
11 Pulley - Engine 2MBL39
12 Safety Valve PSV1/4-200
13 Engine Control w/ Cable TCLP-36
  Bushing LX1
Eagle Compressor Oil EAOIL10

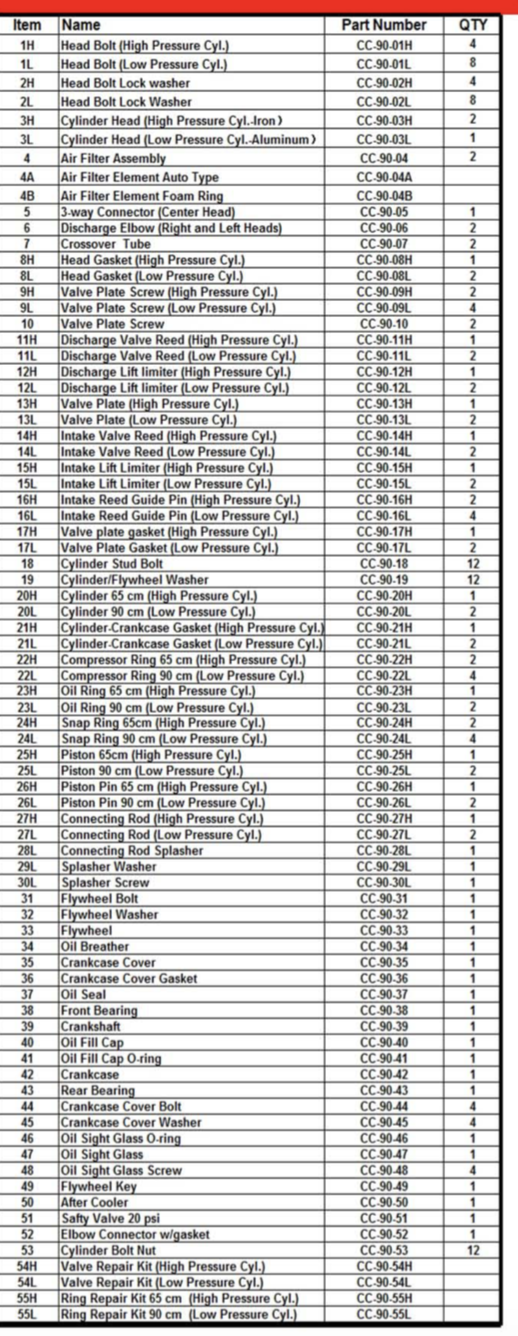

Item Name Part Number Quantity
1H Head Bolt (High Pressure Cyl.) CC-90-01H 4
1L Head Bolt (Low Pressure Cyl.) CC-90-01L 8
2H Head Bolt Lock Washer CC-90-02H 4
2L Head Bolt Lock Washer CC-90-02L 8
3H Cylinder Head (High Pressure Cyl. - Iron) CC-90-03H 2
3L Cylinder Head (Low Pressure Cyl. - Aluminum) CC-90-03L 1
4 Air Filter Assembly CC-90-04 2
4A Air Filter Element Auto Type CC-90-04A
4B Air Filter Element Foam Ring CC-90-04B
5 3-Way Connector (Center Head) CC-90-05 1
6 Discharge Elbow (Right and Left Heads) CC-90-06 2
7 Crossover Tube CC-90-07 2
8H Head Gasket (High Pressure Cyl.) CC-90-08H 1
8L Head Gasket (Low Pressure Cyl.) CC-90-08L 2
9H Valve Plate Screw (High Pressure Cyl.) CC-90-09H 2
9L Valve Plate Screw (Low Pressure Cyl.) CC-90-09L 4
10 Valve Plate Screw CC-90-10 2
11H Discharge Valve Reed (High Pressure Cyl.) CC-90-11H 1
11L Discharge Valve Reed (Low Pressure Cyl.) CC-90-11L 2
12H Discharge Lift Limiter (High Pressure Cyl.) CC-90-12H 1
12L Discharge Lift Limiter (Low Pressure Cyl.) CC-90-12L 2
13H Valve Plate (High Pressure Cyl.) CC-90-13H 1
13L Valve Plate (Low Pressure Cyl.) CC-90-13L 2
14H Intake Valve Reed (High Pressure Cyl.) CC-90-14H 1
14L Intake Valve Reed (Low Pressure Cyl.) CC-90-14L 2
15H Intake Lift Limiter (High Pressure Cyl.) CC-90-15H 1
15L Intake Lift Limiter (Low Pressure Cyl) CC-90-15L 2
16H Intake Reed Guide Pin (High Pressure Cyl.) CC-90-16H 2
16L Intake Reed Guide Pin (Low Pressure Cyl.) CC-90-16L 4
17H Valve Plate Gasket (High Pressure Cyl.) CC-90-17H 1
17L Valve Plate Gasket (Low Pressure Cyl.) CC-90-17L 2
18 Cylinder Stud Bolt CC-90-18 12
19 Cylinder/Flywheel Washer CC-90-19 12
20H Cylinder 65 CM (High Pressure Cyl.) CC-90-20H 1
20L Cylinder 90 CM (Low Pressure Cyl.) CC-90-20L 2
21H Cylinder-Crankcase Gasket (High Pressure Cyl.) CC-90-21H 1
21L Cylinder-Crankcase Gasket (Low Pressure Cyl.) CC-90-21L 2
22H Compressor Ring 65 CM (High Pressure Cyl.) CC-90-22H 2
22L Compressor Ring 90 CM (Low Pressure Cyl.) CC-90-22L 4
23H Oil Ring 65 CM (High Pressure Cyl.) CC-90-23H 1
23L Oil Ring 90 CM (Low Pressure Cyl.) CC-90-23L 2
24H Snap Ring 65 CM (High Pressure Cyl.) CC-90-24H 2
24L Snap Ring 90 CM (Low Pressure Cyl.) CC-90-24L 4
25H Piston 65 CM (High Pressure Cyl.) CC-90-25H 1
25L Piston 90 CM (Low Pressure Cyl.) CC-90-25L 2
26H Piston Pin 65 CM (High Pressure Cyl.)  CC-90-26H 1
26L Piston Pin 90 CM (Low Pressure Cyl.) CC-90-26L 2
27H Connecting Rod (High Pressure Cyl.) CC-90-27H 1
27L Connecting Rod (Low Pressure Cyl.) CC-90-27L 2
28L Connecting Rod Splasher CC-90-28L 1
29L Splasher Washer CC-90-29L 1
30L Splasher Screw CC-90-30L 1
31 Flywheel Bolt CC-90-31 1
32 Flywheel Washer CC-90-32 1
33 Flywheel CC-90-33 1
34 Oil Breather CC-90-34 1
35 Crankcase Cover CC-90-35 1
36 Crankcase Cover Gasket CC-90-36 1
37 Oil Seal CC-90-37 1
38 Front Bearing CC-90-38 1
39 Crankshaft CC-90-39 1
40 Oil Fill Cap CC-90-40 1
41 Oil Fill Cap O-Ring CC-90-41 1
42 Crankcase CC-90-42 1
43 Rear Bearing CC-90-43 1
44 Crankcase Cover Bolt CC-90-44 4
45 Crankcase Cover Washer CC-90-45 4
46 Oil Sight Glass O-Ring CC-90-46 1
47 Oil Sight Glass CC-90-47 1
48 Oil Sight Glass Screw CC-90-48 4
49 Flywheel Key CC-90-49 1
50 After Cooler CC-90-50 1
51 Safety Valve 20 PSI CC-90-51 1
52 Elbow Connector w/ Gasket CC-90-52 1
53 Cylinder Bolt Nut CC-90-53 12
54H Valve Repair Kit (High Pressure Cyl.) CC-90-54H
54L Valve Repair Kit (Low Pressure Cyl.) CC-90-54L
55H Ring Repair Kit 65 CM (High Pressure Cyl.) CC-90-55H
55L Ring Repair Kit 90 CM (Low Pressure Cyl.) CC-90-55L
