Iron Horse 3 Horse Power 60 Gallon Single-Stage Air Compressor 1 Phase

Iron Horse 3 Horse Power 60 Gallon Single-Stage Air Compressor 1 Phase

IHD6160V1

$975.00 USD
$1,500.00 USD $975.00 USD
Sale Sold out


This Item Has To Ship Truckline

A LIFTGATE AND A RESIDENTAL FEE MAY APPLY IN ADDITION TO SHIPPING CHARGES

Features

  • CFM / PSI: 11.2 CFM @ 90 PSI
  • HorsePower: 3
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 60 ASME Registered
  • Electric Motor: 208/230V America Branded
  • 1 Phase
  • Pump Material Solid Cast Iron
  • Pump Type Single Stage
  • Pump Drive Belt Drive
  • Tank Outlet 1/2"
  • Pressure Switch: Heavy Duty Easy On/Off Switch
  • Thermally Protected 208/230 Volt Motor Versatile Single Phase Power Fits Many Applications
  • 60 Gallon ASME Registered Tank Rated To 150 PSI
  • Cast Iron V Twin Pump
  • UL/CSA Approved
  • Metal Wire Cage Enclosed Belt Guard
  • No Magnetic Starter Required
  • Oil Sight Glass
  • 3.2 Horsepower Electric Motor Run A Wide Variety Of Tools: Reaches 6.5 Hp Peak At Startup
  • Rugged 2 Cylinder Cast Iron Compressor Extremely Quiet And Durable
  • Individual And Removeable Cylinders Provides Smoother And Cooler Operation And Longer Life
  • Easy View Oil Sight Gauge
  • Sturdy Belt Gaurd
  • 1 Year Warranty
  • Made in USA
  • TMI85000

DIM:  27" x 20" x 65"

WEIGHT:  260 LBS

Item Description Product Code
1 Compressor w/ Flywheel CC2065
2 Discharge Tube (2.5ft) ASSY TU-23-AL
3 Pressure Gauge PG200-2.5SI1/4
4 Air Receiver (tank) 60VE20C48SPL-MG
5 Drain Cock -Assembly 240-B
6 V-Belt A49
7 Belt Guard BGC
8 Motor - 1 Phase, 208/230V EM05.0-36-10SPL
9 Wiring Harness  12/3-24-C4
10 Check Valve CTF1/2X1/2
11 Pressure Switch 21UCBDB-CH-B
12 Pulley - Motor MA38X5/8
13 Unloader Tube  TU1/4BLK
  **Fittings Required for TU-1/4BLK 68-4A
14 Safety Valve PSV1/4-150
15 Ball Valve BV1/2MF
Eagle Compressor Oil EAOIL10

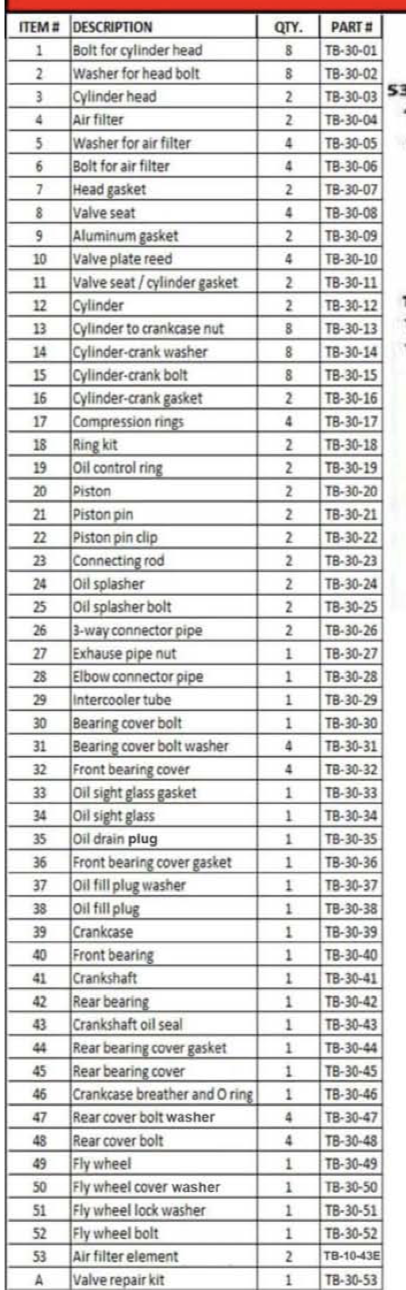

Item Description Quantity Part Number
1 Bolt for Cylinder Head 8 TB-30-01
2 Washer for Head Bolt 8 TB-30-02
3 Cylinder Head 2 TB-30-03
4 Air Filter 2 TB-30-04
5 Washer for Air Filter 4 TB-30-05
6 Bolt for Air Filter 4 TB-30-06
7 Head Gasket 2 TB-30-07
8 Valve Seat 4 TB-30-08
9 Aluminum Gasket 2 TB-30-09
10 Valve Plate Reed 4 TB-30-10
11 Valve Seat / Cylinder Gasket 2 TB-30-11
12 Cylinder 2 TB-30-12
13 Cylinder to Crankcase Nut 8 TB-30-13
14 Cylinder-Crank Washer 8 TB-30-14
15 Cylinder-Crank Bolt 8 TB-30-15
16 Cylinder-Crank Gasket 2 TB-30-16
17 Compression Rings 4 TB-30-17
18 Ring Kit 2 TB-30-18
19 Oil Control Ring 2 TB-30-19
20 Piston 2 TB-30-20
21 Piston Pin 2 TB-30-21
22 Piston Pin Clip 2 TB-30-22
23 Connecting Rod 2 TB-30-23
24 Oil Splasher 2 TB-30-24
25 Oil Splasher Bolt 2 TB-30-25
26 3-Way Connector Pipe 2 TB-30-26
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 1 TB-30-29
30 Bearing Cover Bolt 1 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 4 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-30-39
40 Front Bearing 1 TB-30-40
41 Crankshaft 1 TB-30-41
42 Rear Bearing 1 TB-30-42
43 Crankshaft Oil Seal 1 TB-30-43
44 Rear Bearing Cover Gasket 1 TB-30-44
45 Rear Bearing Cover 1 TB-30-45
46 Crankcase Breather and O Ring 1 TB-30-46
47 Rear Cover Bolt Washer 4 TB-30-47
48 Rear Cover Bolt 4 TB-30-48
49 Flywheel 1 TB-30-49
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Lock Washer 1 TB-30-51
52 Flywheel Bolt 1 TB-30-52
53 Air Filter Element 2 TB-10-43E
A Valve Repair Kit 1 TB-30-53
