Iron Horse 6 Horse Power 10 Gallon Air Compressor Wheelbarrow

Iron Horse 6 Horse Power 10 Gallon Air Compressor Wheelbarrow

IHTT60G-BS

$1,150.00 USD
$1,895.00 USD $1,150.00 USD
Sale Sold out


A lift gate fee and a residential fee may still be charged!

This Item Has To Ship Truckline


Features

  • CFM / PSI: 11.0 CFM @ 90 PSI
  • HorsePower: 6.0 Briggs & Stratton
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 10 Twin
  • Manual Start
  • Rugged 2 Cylinder Cast Iron Compressor
  • Pump Material Solid Cast Iron
  • Pump Type Single Stage
  • Pump Drive Belt Drive
  •  3 Individual & Removable Cylinders for a Smoother and Cooler Operation.
  • 6 HP Briggs & Stratton Engine
  • 10 Gallon Capacity Twin Tanks - The largest in the Industry
  • Pneumatic tire for easy handling & Maneuverability
  • Easy View Oil Sight Gauge
  • High Efficiency Reed Valves for Maximum Performance
  • Efficient Heat Removal From Flywheel for Cooler Running and Longer Life
  • Sturdy Belt Guard
  • Engine Idle Control Feature Reduces Operating Costs and Unnecessary Wear
  • Dependable 6 Hp B&S Engine OHV Delivers A quiet Operantion and Maximum Reliability
  • OHV Provides More Power For Easy Starting, Less Fuel-Use And Lower Emissions
  • 10 Gallon Capacity Twin Wheelbarrow Style Tanks Are The Largest In the Industry Powers Tools Up To 11 CFM
  • Stable Low Profile Design Is Easy To Move And Transport With Large Pneumatic Tires
  • 1 Year Limited Warranty
  • TMI92500

DIM:  50" x 18" x 24"

WEIGHT:  190 LBS

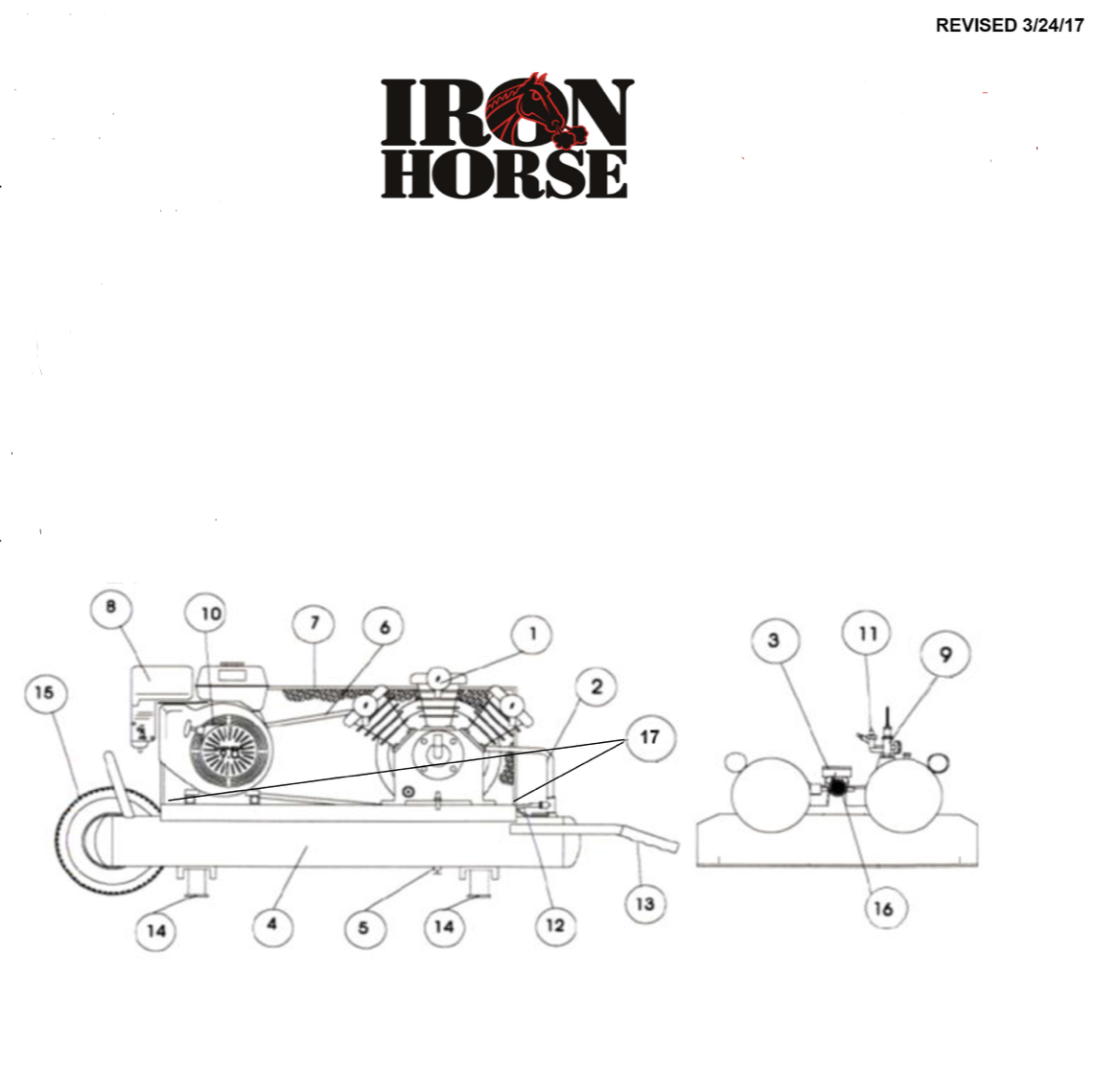

Item Description Product Code
1 Compressor w/ Flywheel CC2065
2 Discharge Tube TU-23-AL
3 Pressure Gauge PG200-2.5SI1/4
4 Air Receiver (tank) 10TT41X5-IH
5 Drain Cock -Assembly 240-B    (2)
6 V-Belt A49
7 Belt Guard TT-GUARD
8 Engine BS-12T120113F8
9 Unloader NRP-A-95-125
10 Pulley - Engine MA38X3/4
11 Safety Valve PSV1/4-150
12 Engine Control w/ Cable TCP-48
13 Handle Grip TT-GRIP
14 Vibration Dampner TT-FOOT
15 Pneumatic Wheel TT-WHEEL-SQ-FF
  Axle WA1001
16 Ball Valve BV1/4MXF
Eagle Compressor Oil EAOIL10

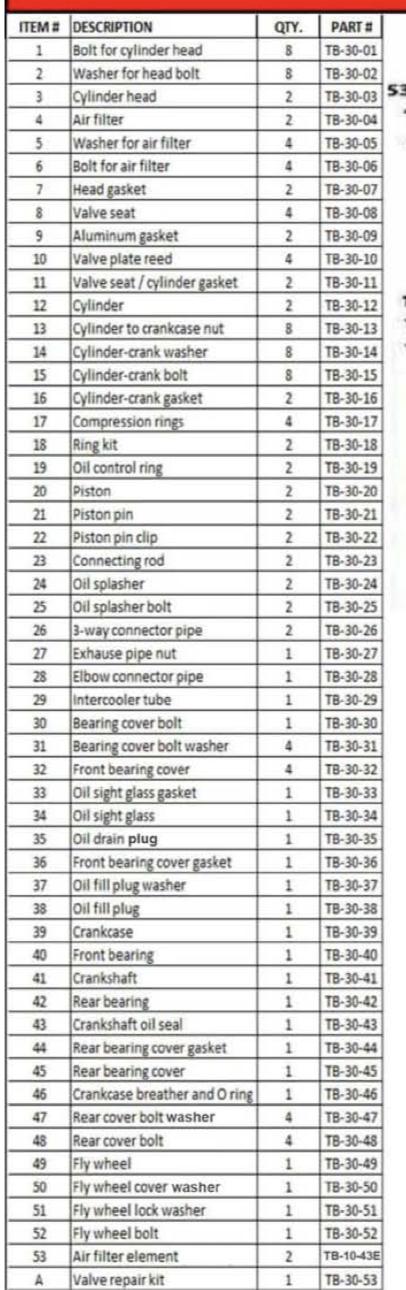

Item Description Quantity Part Number
1 Bolt for Cylinder Head 8 TB-30-01
2 Washer for Head Bolt 8 TB-30-02
3 Cylinder Head 2 TB-30-03
4 Air Filter 2 TB-30-04
5 Washer for Air Filter 4 TB-30-05
6 Bolt for Air Filter 4 TB-30-06
7 Head Gasket 2 TB-30-07
8 Valve Seat 4 TB-30-08
9 Aluminum Gasket 2 TB-30-09
10 Valve Plate Reed 4 TB-30-10
11 Valve Seat / Cylinder Gasket 2 TB-30-11
12 Cylinder 2 TB-30-12
13 Cylinder to Crankcase Nut 8 TB-30-13
14 Cylinder-Crank Washer 8 TB-30-14
15 Cylinder-Crank Bolt 8 TB-30-15
16 Cylinder-Crank Gasket 2 TB-30-16
17 Compression Rings 4 TB-30-17
18 Ring Kit 2 TB-30-18
19 Oil Control Ring 2 TB-30-19
20 Piston 2 TB-30-20
21 Piston Pin 2 TB-30-21
22 Piston Pin Clip 2 TB-30-22
23 Connecting Rod 2 TB-30-23
24 Oil Splasher 2 TB-30-24
25 Oil Splasher Bolt 2 TB-30-25
26 3-Way Connector Pipe 2 TB-30-26
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 1 TB-30-29
30 Bearing Cover Bolt 1 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 4 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-30-39
40 Front Bearing 1 TB-30-40
41 Crankshaft 1 TB-30-41
42 Rear Bearing 1 TB-30-42
43 Crankshaft Oil Seal 1 TB-30-43
44 Rear Bearing Cover Gasket 1 TB-30-44
45 Rear Bearing Cover 1 TB-30-45
46 Crankcase Breather and O Ring 1 TB-30-46
47 Rear Cover Bolt Washer 4 TB-30-47
48 Rear Cover Bolt 4 TB-30-48
49 Flywheel 1 TB-30-49
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Lock Washer 1 TB-30-51
52 Flywheel Bolt 1 TB-30-52
53 Air Filter Element 2 TB-10-43E
A Valve Repair Kit 1 TB-30-53
