Iron Horse 5 Horse Power 60 Single Stage Gallon Air Compressor 208 230 Volt 1 Phase

Iron Horse 5 Horse Power 60 Single Stage Gallon Air Compressor 208 230 Volt 1 Phase

IHD7160V1

$1,350.00 USD
$1,850.00 USD $1,350.00 USD
Sale Sold out

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE AND RESIDENTIAL FEE MAY BE ADDED IN ADDITION TO SHIPPING CHARGES!

    Features

    • CFM / PSI: 16.5 CFM @ 90 PSI
    • HorsePower: 5
    • Max Rated PSI: 150
    • Air Tank Capacity (Gal): 60
    • Electric Motor: 208/230 Volt AC
    • Amp Draw 22.5
    • 1-Phase:
    • Pump Material Solid Cast Iron
    • Pump Type Single Stage
    • Pump Drive Belt Drive
    • Oil Lube
    • No Magnetic Started Required
    • Enclosed Belt Guard
    • Heavy Duty Pressure Switch Easy On/Off Control
    • Thermally Protected 208/230Volt Motor Versatile Single Phase Power Fits Many Applications
    • 60 Gallon ASME Registered Tank RAted To 150 PSI
    • High Efficency Reed Valves Provide Maximum Performance
    • Sturdy Belt Gaurd
    • Oil Sight Gauge
    • 5 HP Electric Motor Run A Wide Variety Of Tools Reaches 7 HP Peak At Startup
    • Rugged # Cylinder CAst Iron Compressor Extremely Quiet And Durable
    • Individual And Removable Cylinders Provides Smoother And Cooler Operation For Longer Life
    • 1 Year Limited Warranty
    • TMI108500

    DIM:  27" x 20" x 66"

    WEIGHT:  280 LBS

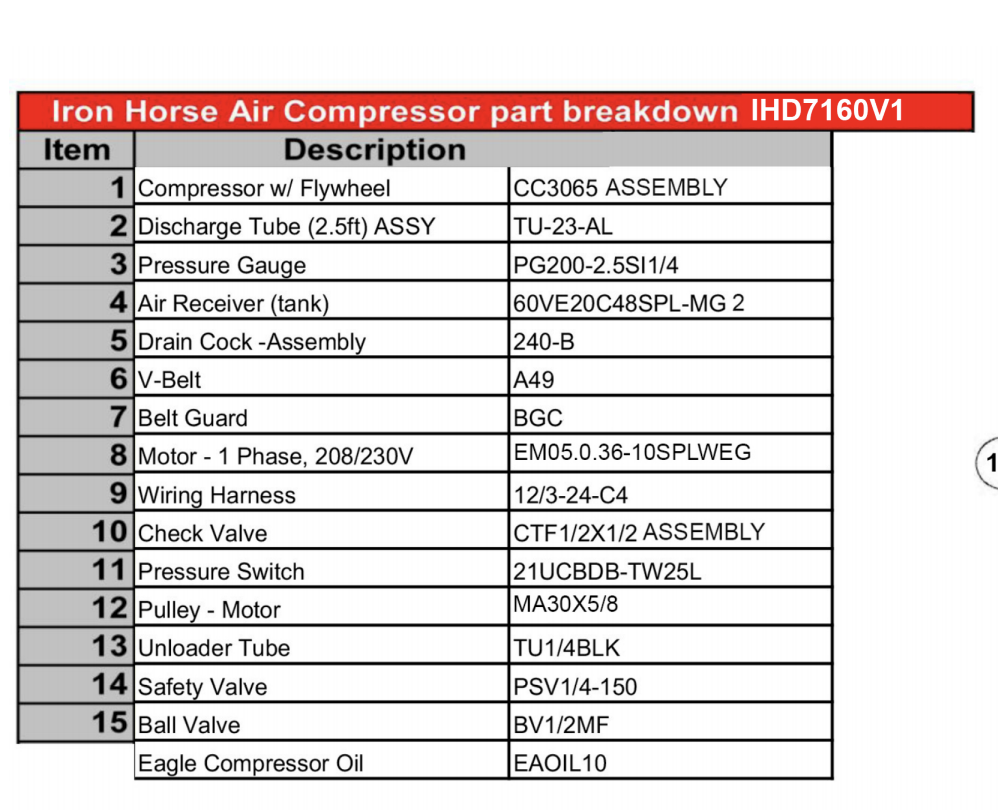

    Item Description Product Code
    1 Compressor w/ Flywheel CC3065
    2 Discharge Tube (2.5ft) ASSY TU-23-AL
    3 Pressure Gauge PG200-2.5SI1/4
    4 Air Receiver (tank) 60VE20C48SPL-MG
    5 Drain Cock -Assembly 240-B
    6 V-Belt A49
    7 Belt Guard BGC
    8 Motor - 1 Phase, 208/230V EM05.0-36-10
    9 Wiring Harness  12/3-24-C4
    10 Check Valve CTF1/2X1/2
    11 Pressure Switch 21UCBDB-TW25L
    12 Pulley - Motor MA38X7/8
    13 Unloader Tube  TU1/4BLK
      **Fittings Required for TU-1/4BLK 68-4A
    14 Safety Valve PSV1/4-150
    15 Ball Valve BV1/2MF
    Eagle Compressor Oil EAOIL10

    Item Description Quantity Part Number
    1 Bolt for Cylinder Head 12
    		 TB-30-01
    2 Washer for Head Bolt 12 TB-30-02
    3 Cylinder Head 3 TB-30-03
    4 Air Filter 3 TB-30-04
    5 Washer for Air Filter 6 TB-30-05
    6 Bolt for Air Filter 6 TB-30-06
    7 Head Gasket 3 TB-30-07
    8 Valve Seat 6 TB-30-08
    9 Aluminum Gasket 3 TB-30-09
    10 Valve Plate Reed 6 TB-30-10
    11 Valve Seat / Cylinder Gasket 3 TB-30-11
    12 Cylinder 3 TB-30-12
    13 Cylinder to Crankcase Nut 12 TB-30-13
    14 Cylinder-Crank Washer 12 TB-30-14
    15 Cylinder-Crank Bolt 12 TB-30-15
    16 Cylinder-Crank Gasket 3 TB-30-16
    17 Compression Rings 6 TB-30-17
    18 Ring Kit 3 TB-30-18
    19 Oil Control Ring 3 TB-30-19
    20 Piston 3 TB-30-20
    21 Piston Pin 3 TB-30-21
    22 Piston Pin Clip 3 TB-30-22
    23 Connecting Rod 3 TB-30-23
    24 Oil Splasher 3 TB-30-24
    25 Oil Splasher Bolt 3 TB-30-25
    26 3-Way Connector Pipe 1 TB-40-03
    27 Exhaust Pipe Nut 1 TB-30-27
    28 Elbow Connector Pipe 1 TB-30-28
    29 Intercooler Tube 2 TB-10-44
    30 Bearing Cover Bolt 4 TB-30-30
    31 Bearing Cover Bolt Washer 4 TB-30-31
    32 Front Bearing Cover 1 TB-30-32
    33 Oil Sight Glass Gasket 1 TB-30-33
    34 Oil Sight Glass 1 TB-30-34
    35 Oil Drain Plug 1 TB-30-35
    36 Front Bearing Cover Gasket 1 TB-30-36
    37 Oil Fill Plug Washer 1 TB-30-37
    38 Oil Fill Plug 1 TB-30-38
    39 Crankcase 1 TB-40-47
    40 Front & Rear Bearing 1 TB-40-42
    41 Crankshaft 1 TB-40-48
    42 Crankshaft Oil Seal
    		 1 TB-30-43
    43 Rear Bearing Cover Gasket
    		 1 TB-30-44
    44 Front Shaft Cover
    		 1 TB-30-45
    45 Crankcase Breather/ O Ring
    		 1 TB-30-46
    46 Rear Cover Bolt Washer
    		 4 TB-30-47
    47 Rear Cover Bolt 4 TB-30-48
    48 Flywheel C/W Fasteners
    		 1 TB-40-57
    49 Flywheel Lock Washer 1 TB-30-51
    50 Flywheel Cover Washer 1 TB-30-50
    51 Flywheel Bolt 1 TB-30-52
    52 Keystock
    		 1 TB-40-49
    53 Air Filter Element 1 TB-10-43E
    A Valve Repair Kit 1 TB-30-53
