Iron Horse 5 HP 80 Gallon Air Compressor

IHD7180V1

Regular price $1,999.00 $1,225.00 Sale

Features

  • CFM / PSI: 16.5 CFM @ 90 PSI
  • HorsePower: 5.0 Thermally Protected
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 80 ASME Registered
  • Electric Motor: 208/230 Volt AC
  • Amp Draw 22.5
  • 1 Phase
  • Pump Material Solid Cast Iron
  • Pump Type Single Stage
  • Pump Drive Belt Drive
  • Dimensions: 24”W X 64”H X 24”L
  • Weight (lbs.): 330
  • Rugged 3 Cylinder Cast Iron Compressor
  • V-Design MInimizes Vibration, Improves Cooling & Extends Compressors Life
  • Individual & Removeable Cylinders For Smoother And Cooler Operation For Optimum Durability
  • No Magnetic Starter Required Improved Performance With Less Expense
  • Heavy Duty Pressure Switch (On/Off Control)
  • 50% Duty Cycle Delivers 16 CFM @ 90 PSI
  • 5 HP Run, 7 HP (Peak) 208-230 Volt, Single Phase Electric Motor Protected against Overheating; Requires 22.5 Amp Circuit
  • Easy View Oil Sight
  • High Efficiency Reed Valves Provides Maximum Performance
  • Efficient Heat Removal From Fly Wheel for Cooler • Running Temps and Longer Lifespan
  • Sturdy Metal Belt Guard
  • Heavy Duty 1/2” Ball Valve Included
  • CSA Approved
  • 1 Year Limited Warranty
  • TMI94900

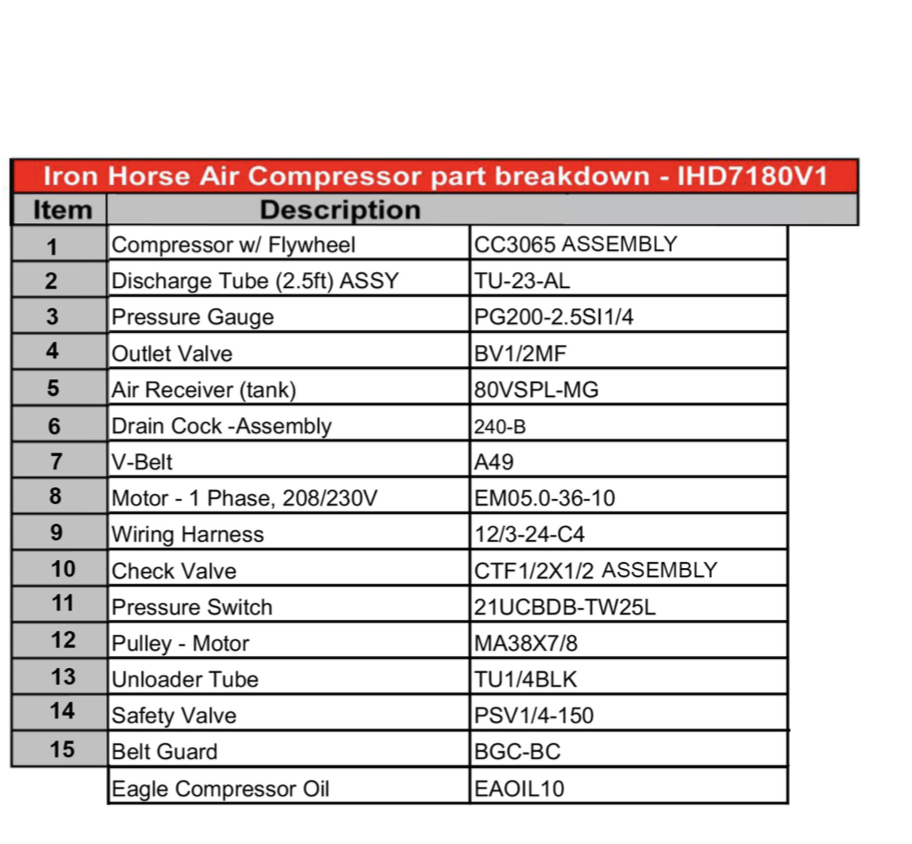

Item Description Product Code
1 Compressor w/ Flywheel CC3065
2 Discharge Tube (2.5ft) ASSY TU-23-AL
3 Pressure Gauge PG200-2.5SI1/4
4 Outlet Valve BV1/2MF
5 Air Receiver (tank) 80VSPL-MG
6 Drain Cock -Assembly 240-B
7 V-Belt A49
8 Motor - 1 Phase, 208/230V EM05.0-36-10
9 Wiring Harness 12/3-24-C4
11 Check Valve CTF1/2X1/2
12 Pressure Switch 21UCBDB-TW25L
13 Pulley - Motor MA38X7/8
14 Unloader Tube  TU1/4BLK
15 Safety Valve PSV1/4-150
  Belt Guard BGC
  **Fittings Required for TU-1/4BLK 68-4A

Eagle Compressor Oil EAOIL10

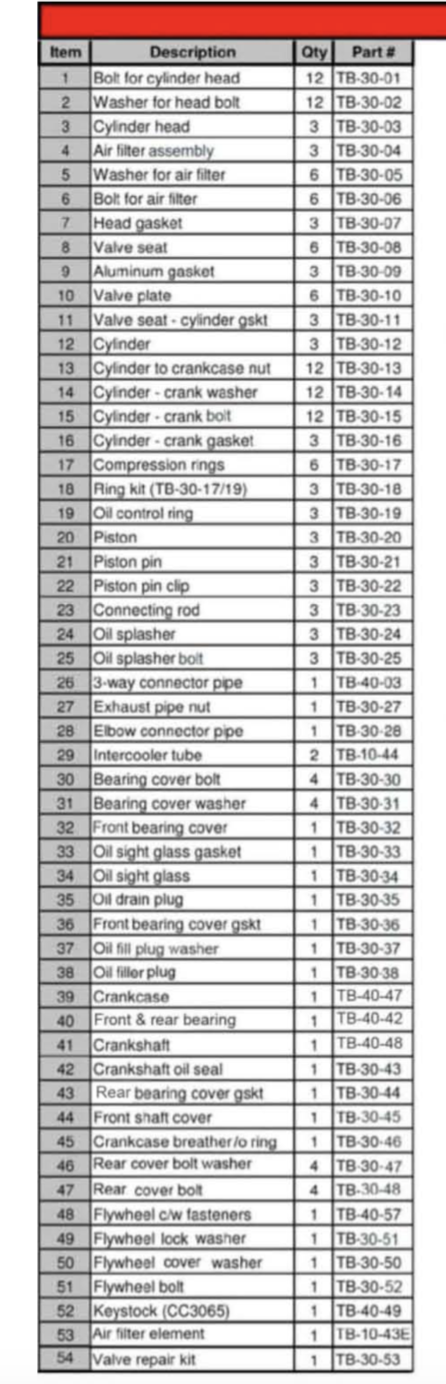

Item Description Quantity Part Number
1 Bolt for Cylinder Head 12
TB-30-01
2 Washer for Head Bolt 12 TB-30-02
3 Cylinder Head 3 TB-30-03
4 Air Filter 3 TB-30-04
5 Washer for Air Filter 6 TB-30-05
6 Bolt for Air Filter 6 TB-30-06
7 Head Gasket 3 TB-30-07
8 Valve Seat 6 TB-30-08
9 Aluminum Gasket 3 TB-30-09
10 Valve Plate Reed 6 TB-30-10
11 Valve Seat / Cylinder Gasket 3 TB-30-11
12 Cylinder 3 TB-30-12
13 Cylinder to Crankcase Nut 12 TB-30-13
14 Cylinder-Crank Washer 12 TB-30-14
15 Cylinder-Crank Bolt 12 TB-30-15
16 Cylinder-Crank Gasket 3 TB-30-16
17 Compression Rings 6 TB-30-17
18 Ring Kit 3 TB-30-18
19 Oil Control Ring 3 TB-30-19
20 Piston 3 TB-30-20
21 Piston Pin 3 TB-30-21
22 Piston Pin Clip 3 TB-30-22
23 Connecting Rod 3 TB-40-32
24 Oil Splasher 3 TB-30-24
25 Oil Splasher Bolt 3 TB-30-25
26 3-Way Connector Pipe 1 TB-40-03
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 2 TB-10-44
30 Bearing Cover Bolt 4 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 1 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-40-47
40 Front & Rear Bearing 1 TB-40-42
41 Crankshaft 1 TB-40-48
42 Crankshaft Oil Seal
1 TB-30-43
43 Rear Bearing Cover Gasket
1 TB-30-44
44 Front Shaft Cover
1 TB-30-45
45 Crankcase Breather/ O Ring
1 TB-30-46
46 Rear Cover Bolt Washer
4 TB-30-47
47 Rear Cover Bolt 4 TB-30-48
48 Flywheel C/W Fasteners
1 TB-40-57
49 Flywheel Lock Washer 1 TB-30-51
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Bolt 1 TB-30-52
52 Keystock
1 TB-40-49
53 Air Filter Element 1 TB-10-43E
A Valve Repair Kit 1 TB-30-53
