Iron Horse 8 Horse Power 10 Gallon Air Comrpessor With Electric Start Briggs And Stratton Engine
Iron Horse 8 Horse Power 10 Gallon Air Comrpessor With Electric Start Briggs And Stratton Engine
IHTT80GE-BS
Regular price
$1,595.00 USD
Regular price
$1,945.00 USD
Sale price
$1,595.00 USD
Unit price
per
Couldn't load pickup availability
This item is required to ship truckline. Residental fees and lift gates fees will have to be added in addition to the shipping charges.
- Rugged 2 Cylinder Cast Iron Compressor
- Individual And Removalbe Cylinders For Smoother And cooler Operation And Cooler Operation
- 8 Horse Power Briggs And Stratton Engine OHV Smooth, Quiet, Operation And Maximum Reliability
- Electric Start 10 Gallon Capacity Twin Tanks The Largest In The Industry
- Pneumatic Tire For Easy Handling And Maneuverability
- Easy View Oil Sight Gauge
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal from Fly Wheel For Cooler Running And Longer Life
- Sturdy Belt Gaurd
- Engine Idle Control Features Reduces Operating Costs And Unnecessary Wear
- 16.5 CFM @ 90PSI
- Rated PS 150
- Length 46" x Width 17" x Height 27"
- Weight 189 LBS
- TMI135000
- Shipping Dimensions: 270# 40x48x35
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC3065 |
| 2 | Discharge Tube | TU-20-AL |
| 3 | Pressure Gauge | PG200-2.5SI1/4 |
| 4 | Air Receiver (tank) | 10TT41X5-IH |
| 5 | Drain Cock -Assembly | 240-B (2) |
| 6 | V-Belt | 4L540 |
| 7 | Belt Guard | TT-GUARD |
| 8 | Engine | BS-8HPE |
| 9 | Unloader | NRP-A-95-125 |
| 10 | Pulley - Engine | MA38X1 |
| 11 | Safety Valve | PSV1/4-150 |
| 12 | Engine Control w/ Cable | TCP-48 |
| 13 | Handle Grip | TT-GRIP |
| 14 | Vibration Dampner | TT-FOOT |
| 15 | Pneumatic Wheel | TT-WHEEL-SQ-FF |
| Axle | WA1001 | |
| 16 | Ball Valve | BV1/4MXF |
| Eagle Compressor Oil | EAOIL10 |

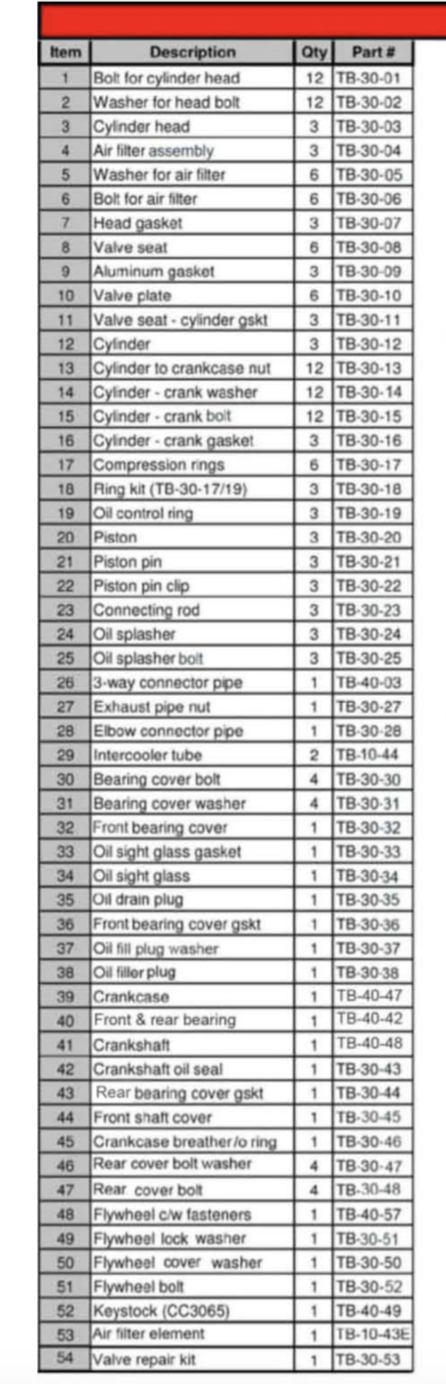

| Item | Description | Quantity | Part Number |
| 1 | Bolt for Cylinder Head | 12 |
TB-30-01 |
| 2 | Washer for Head Bolt | 12 | TB-30-02 |
| 3 | Cylinder Head | 3 | TB-30-03 |
| 4 | Air Filter | 3 | TB-30-04 |
| 5 | Washer for Air Filter | 6 | TB-30-05 |
| 6 | Bolt for Air Filter | 6 | TB-30-06 |
| 7 | Head Gasket | 3 | TB-30-07 |
| 8 | Valve Seat | 6 | TB-30-08 |
| 9 | Aluminum Gasket | 3 | TB-30-09 |
| 10 | Valve Plate Reed | 6 | TB-30-10 |
| 11 | Valve Seat / Cylinder Gasket | 3 | TB-30-11 |
| 12 | Cylinder | 3 | TB-30-12 |
| 13 | Cylinder to Crankcase Nut | 12 | TB-30-13 |
| 14 | Cylinder-Crank Washer | 12 | TB-30-14 |
| 15 | Cylinder-Crank Bolt | 12 | TB-30-15 |
| 16 | Cylinder-Crank Gasket | 3 | TB-30-16 |
| 17 | Compression Rings | 6 | TB-30-17 |
| 18 | Ring Kit | 3 | TB-30-18 |
| 19 | Oil Control Ring | 3 | TB-30-19 |
| 20 | Piston | 3 | TB-30-20 |
| 21 | Piston Pin | 3 | TB-30-21 |
| 22 | Piston Pin Clip | 3 | TB-30-22 |
| 23 | Connecting Rod | 3 | TB-30-23 |
| 24 | Oil Splasher | 3 | TB-30-24 |
| 25 | Oil Splasher Bolt | 3 | TB-30-25 |
| 26 | 3-Way Connector Pipe | 1 | TB-40-03 |
| 27 | Exhaust Pipe Nut | 1 | TB-30-27 |
| 28 | Elbow Connector Pipe | 1 | TB-30-28 |
| 29 | Intercooler Tube | 2 | TB-10-44 |
| 30 | Bearing Cover Bolt | 4 | TB-30-30 |
| 31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
| 32 | Front Bearing Cover | 1 | TB-30-32 |
| 33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
| 34 | Oil Sight Glass | 1 | TB-30-34 |
| 35 | Oil Drain Plug | 1 | TB-30-35 |
| 36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
| 37 | Oil Fill Plug Washer | 1 | TB-30-37 |
| 38 | Oil Fill Plug | 1 | TB-30-38 |
| 39 | Crankcase | 1 | TB-40-47 |
| 40 | Front & Rear Bearing | 1 | TB-40-42 |
| 41 | Crankshaft | 1 | TB-40-48 |
| 42 | Crankshaft Oil Seal |
1 | TB-30-43 |
| 43 | Rear Bearing Cover Gasket |
1 |
TB-30-44 |
| 44 | Front Shaft Cover |
1 |
TB-30-45 |
| 45 | Crankcase Breather/ O Ring |
1 |
TB-30-46 |
| 46 | Rear Cover Bolt Washer |
4 |
TB-30-47 |
| 47 | Rear Cover Bolt | 4 |
TB-30-48 |
| 48 | Flywheel C/W Fasteners |
1 | TB-40-57 |
| 49 | Flywheel Lock Washer | 1 |
TB-30-51 |
| 50 | Flywheel Cover Washer | 1 |
TB-30-50 |
| 51 | Flywheel Bolt | 1 |
TB-30-52 |
| 52 | Keystock |
1 |
TB-40-49 |
| 53 | Air Filter Element | 1 | TB-10-43E |
| A | Valve Repair Kit | 1 | TB-30-53 |
