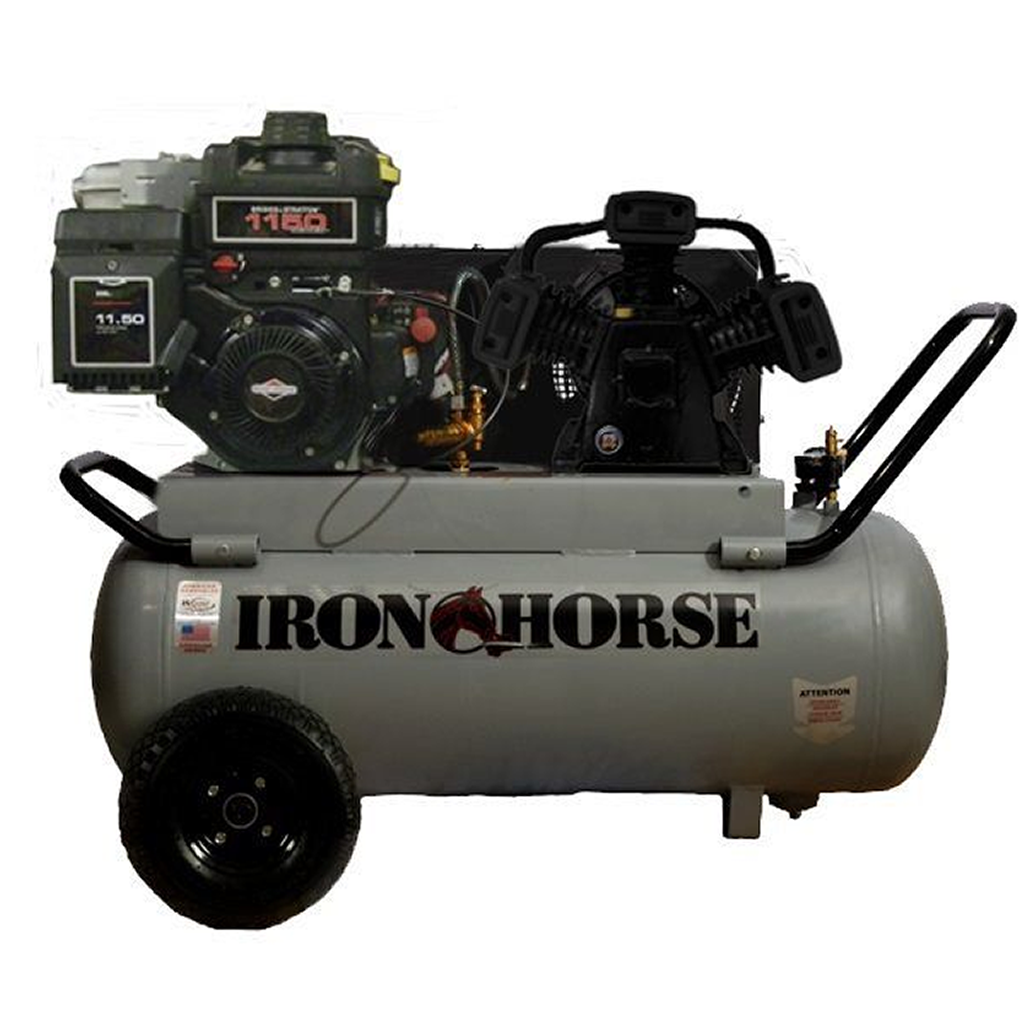

Iron Horse 8 Horse Power Gasoline Air Compressor

Iron Horse 8 Horse Power Gasoline Air Compressor

IHP80G25H1-BS

$1,595.00 USD
$2,022.79 USD $1,595.00 USD
Sale Sold out


A lift gate fee and a residential fee may still be charged although this item qualifies for free shipping!

  • This Item Has To Ship Truckline

  • Iron Horse Air Compressor
  • Rugged 2 And 3 Cylinder Cast Iron Compressors
  • Individual And Removable Cylinders For Smoother And Cooler Operation
  • 8 Horse Power Briggs And Stratton Engine For Smooth Quiet Operation And Maximum Relaibility
  • 25 Gallon Tank
  • Pneumatic Tires For Easy Handling And Maneuverability
  • Easy View Oil Sight Gauge
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Fly Wheel for Cooler Running And Longer Life
  • Sturdy Belt Gaurd
  • Engine Slow Down control Reduces Operating Costs And Unecessary Wear
  • 16 CFM @ 90 PSI
  • Rated PSI 150N
  • Length 46 Inches
  • Width 23 Inches
  • Height 42 Inches
  • 1 Year Warranty
  • TMI120000

Item Description Product Code
1 Compressor w/ Flywheel CC3065
2 Discharge Tube  TU-20-AL
3 Engine BS-1502122119E9
4 Pulley - Engine MA38X3/4
5 V-Belt 4L540
6 Belt Guard TT-GUARD
7 Air Receiver (tank) 25HEPORT-G
8 Pressure Gauge PG200-2.5R
9 Drain Cock  240-B
10 Safety Valve PSV1/4-150
11 Unloader NRP-A-95-125
12 Handle (Long) PT-HANDLE-25L
  Handle (Short) PT-HANDLE-24HS
13 Wheel PT-WHEEL-FF
14 Vibration Dampner TT-FOOT
15 Engine Control w/ Cable TCLP-36-0817
16 Regulator R202-1/4
17 Pressure Gauge (Regulator) PT0160
18 Coupler CO1/2
  Hose assembly TT-HOSE
Eagle Compressor Oil EAOIL10

Item Description Quantity Part Number
1 Bolt for Cylinder Head 12
 TB-30-01
2 Washer for Head Bolt 12 TB-30-02
3 Cylinder Head 3 TB-30-03
4 Air Filter 3 TB-30-04
5 Washer for Air Filter 6 TB-30-05
6 Bolt for Air Filter 6 TB-30-06
7 Head Gasket 3 TB-30-07
8 Valve Seat 6 TB-30-08
9 Aluminum Gasket 3 TB-30-09
10 Valve Plate Reed 6 TB-30-10
11 Valve Seat / Cylinder Gasket 3 TB-30-11
12 Cylinder 3 TB-30-12
13 Cylinder to Crankcase Nut 12 TB-30-13
14 Cylinder-Crank Washer 12 TB-30-14
15 Cylinder-Crank Bolt 12 TB-30-15
16 Cylinder-Crank Gasket 3 TB-30-16
17 Compression Rings 6 TB-30-17
18 Ring Kit 3 TB-30-18
19 Oil Control Ring 3 TB-30-19
20 Piston 3 TB-30-20
21 Piston Pin 3 TB-30-21
22 Piston Pin Clip 3 TB-30-22
23 Connecting Rod 3 TB-30-23
24 Oil Splasher 3 TB-30-24
25 Oil Splasher Bolt 3 TB-30-25
26 3-Way Connector Pipe 1 TB-40-03
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 2 TB-10-44
30 Bearing Cover Bolt 4 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 1 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-40-47
40 Front & Rear Bearing 1 TB-40-42
41 Crankshaft 1 TB-40-48
42 Crankshaft Oil Seal
 1 TB-30-43
43 Rear Bearing Cover Gasket
 1 TB-30-44
44 Front Shaft Cover
 1 TB-30-45
45 Crankcase Breather/ O Ring
 1 TB-30-46
46 Rear Cover Bolt Washer
 4 TB-30-47
47 Rear Cover Bolt 4 TB-30-48
48 Flywheel C/W Fasteners
 1 TB-40-57
49 Flywheel Lock Washer 1 TB-30-51
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Bolt 1 TB-30-52
52 Keystock
 1 TB-40-49
53 Air Filter Element 1 TB-10-43E
A Valve Repair Kit 1 TB-30-53
