IHD7380V2-CS4

Iron Horse 80 Gallon Two Stage Air Compressor 460 Volt 3 Phase

Iron Horse 80 Gallon Two Stage Air Compressor 460 Volt 3 Phase

Regular price $2,400.00 USD
Regular price $3,243.60 USD Sale price $2,400.00 USD
Sale Sold out

A lift gate fee and a residential fee may still be charged although this item qualifies for free shipping!

  • This Item Has To Ship Truckline

  • Rugged Compressor With 3 Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • High efficiency reed valves provide maximum performance
  • Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • 7.5 HP (Peak) 460 Volt, 3-Phase Electric Motor
  • Protected against overheating; requires 23 amp circuit
  • No Magnetic Motor Starter Needed
  • Combo switch Improves performance with less expense
  • Heavy-Duty Pressure Switch With On/Off Control
  • 50% duty cycle delivers 22 CFM at 90 PSI; 175 PSI maximum
  • Easy-View Oil Sight Gauge
  • Lets you check oil level at a glance for easy maintenance
  • Efficient Heat Removal From Fly Wheel
  • Cooler running & longer compressor life
  • Sturdy Metal Belt Guard
  • Protects both the belt & the operator
  • 80 Gallon ASME Registered Tank
  • Rated to 150 PSI; sturdy 1/2" ball valve air outlet included
  • CSA certified for increased assurance of quality and safety
  • Voltage 208-230 Volt AC
  • Phase 3-Phase
  • Magnetic Starter No
  • Amp Draw 23
  • Recommended Breaker Consult Certified Electrician
  • HP 7.5
  • Pump CFM 22
  • CFM Rated @ 90 PSI
  • Pump Material Solid Cast Iron
  • Max PSI 175 PSI
  • Oil Sight Glass Yes
  • Pump Type Two-Stage
  • After Cooler No
  • Pump Drive Belt Drive
  • Oil Type Oil Lubricated
  • Oil System Splash Lubricated
  • Pump Low Oil Shut-off No
  • Tank Size 80 Gallons
  • Tank Outlet 3/4 Inch
  • Electronic Drain Valve No
  • Tank Orientation Vertical
  • Overview Weight 442 Pounds
  • Certification ASME
  • Consumer Warranty 1 Year
  • Product Length 24 Inches
  • Product Width 35 Inches
  • Product Height 69 Inches
  • Power Type Electric
  • TMI202500



    Item Description Product Code
    1 Compressor w/ Flywheel CC3090TS-AC
    2 Discharge Tube (2.5ft) ASSY TU-3/4-CU ASSEMBLY
    3 Pressure Gauge PG200-2.5R
    4 Outlet Valve BV3/4MF
    5 Air Receiver (tank) 80VE24X48-G
    6 Drain Cock -Assembly 240-B
    7 V-Belt A66
    8 Belt Guard BG80GAL
    9 Motor - 1 Phase, 208/230V EM07.5-18-30
    10 Check Valve P7575ST
    11 Combo Switch CS-10/16A
    12 Pulley - Motor 2MAL62
    13 Hub or Bushing LX13/8
    14 Unloader Tube  TU-1/4-CU
      **Fittings Required for TU-1/4CU 68-4A
    15 Safety Valve PSV1/4-200
    Eagle Compressor Oil EAOIL10

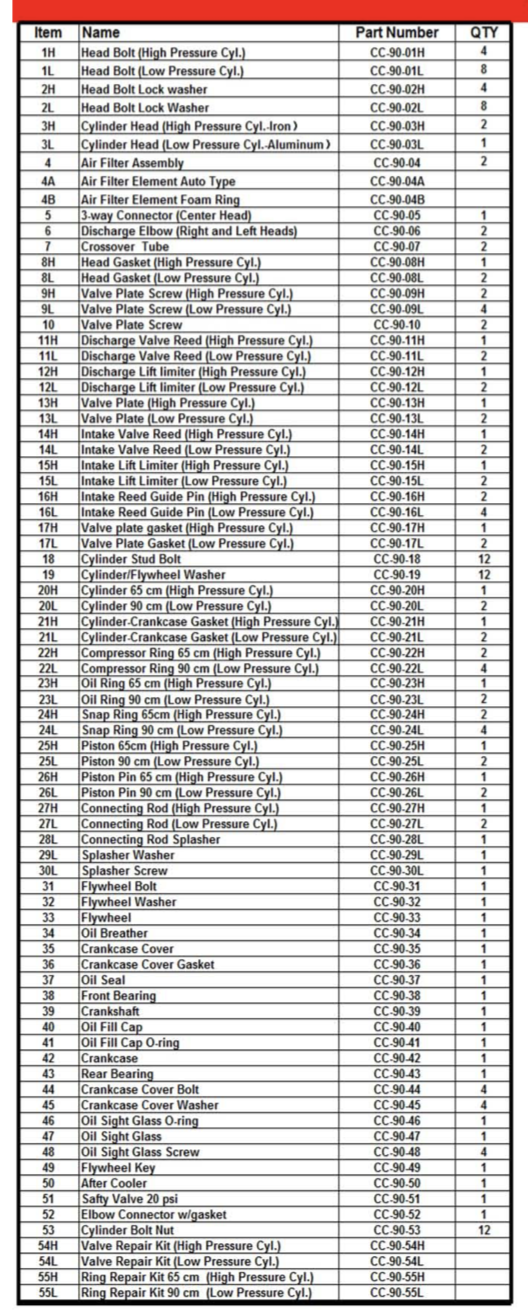

    Item Name Part Number Quantity
    1H Head Bolt (High Pressure Cyl.) CC-90-01H 4
    1L Head Bolt (Low Pressure Cyl.) CC-90-01L 8
    2H Head Bolt Lock Washer CC-90-02H 4
    2L Head Bolt Lock Washer CC-90-02L 8
    3H Cylinder Head (High Pressure Cyl. - Iron) CC-90-03H 2
    3L Cylinder Head (Low Pressure Cyl. - Aluminum) CC-90-03L 1
    4 Air Filter Assembly CC-90-04 2
    4A Air Filter Element Auto Type CC-90-04A
    4B Air Filter Element Foam Ring CC-90-04B
    5 3-Way Connector (Center Head) CC-90-05 1
    6 Discharge Elbow (Right and Left Heads) CC-90-06 2
    7 Crossover Tube CC-90-07 2
    8H Head Gasket (High Pressure Cyl.) CC-90-08H 1
    8L Head Gasket (Low Pressure Cyl.) CC-90-08L 2
    9H Valve Plate Screw (High Pressure Cyl.) CC-90-09H 2
    9L Valve Plate Screw (Low Pressure Cyl.) CC-90-09L 4
    10 Valve Plate Screw CC-90-10 2
    11H Discharge Valve Reed (High Pressure Cyl.) CC-90-11H 1
    11L Discharge Valve Reed (Low Pressure Cyl.) CC-90-11L 2
    12H Discharge Lift Limiter (High Pressure Cyl.) CC-90-12H 1
    12L Discharge Lift Limiter (Low Pressure Cyl.) CC-90-12L 2
    13H Valve Plate (High Pressure Cyl.) CC-90-13H 1
    13L Valve Plate (Low Pressure Cyl.) CC-90-13L 2
    14H Intake Valve Reed (High Pressure Cyl.) CC-90-14H 1
    14L Intake Valve Reed (Low Pressure Cyl.) CC-90-14L 2
    15H Intake Lift Limiter (High Pressure Cyl.) CC-90-15H 1
    15L Intake Lift Limiter (Low Pressure Cyl) CC-90-15L 2
    16H Intake Reed Guide Pin (High Pressure Cyl.) CC-90-16H 2
    16L Intake Reed Guide Pin (Low Pressure Cyl.) CC-90-16L 4
    17H Valve Plate Gasket (High Pressure Cyl.) CC-90-17H 1
    17L Valve Plate Gasket (Low Pressure Cyl.) CC-90-17L 2
    18 Cylinder Stud Bolt CC-90-18 12
    19 Cylinder/Flywheel Washer CC-90-19 12
    20H Cylinder 65 CM (High Pressure Cyl.) CC-90-20H 1
    20L Cylinder 90 CM (Low Pressure Cyl.) CC-90-20L 2
    21H Cylinder-Crankcase Gasket (High Pressure Cyl.) CC-90-21H 1
    21L Cylinder-Crankcase Gasket (Low Pressure Cyl.) CC-90-21L 2
    22H Compressor Ring 65 CM (High Pressure Cyl.) CC-90-22H 2
    22L Compressor Ring 90 CM (Low Pressure Cyl.) CC-90-22L 4
    23H Oil Ring 65 CM (High Pressure Cyl.) CC-90-23H 1
    23L Oil Ring 90 CM (Low Pressure Cyl.) CC-90-23L 2
    24H Snap Ring 65 CM (High Pressure Cyl.) CC-90-24H 2
    24L Snap Ring 90 CM (Low Pressure Cyl.) CC-90-24L 4
    25H Piston 65 CM (High Pressure Cyl.) CC-90-25H 1
    25L Piston 90 CM (Low Pressure Cyl.) CC-90-25L 2
    26H Piston Pin 65 CM (High Pressure Cyl.)  CC-90-26H 1
    26L Piston Pin 90 CM (Low Pressure Cyl.) CC-90-26L 2
    27H Connecting Rod (High Pressure Cyl.) CC-90-27H 1
    27L Connecting Rod (Low Pressure Cyl.) CC-90-27L 2
    28L Connecting Rod Splasher CC-90-28L 1
    29L Splasher Washer CC-90-29L 1
    30L Splasher Screw CC-90-30L 1
    31 Flywheel Bolt CC-90-31 1
    32 Flywheel Washer CC-90-32 1
    33 Flywheel CC-90-33 1
    34 Oil Breather CC-90-34 1
    35 Crankcase Cover CC-90-35 1
    36 Crankcase Cover Gasket CC-90-36 1
    37 Oil Seal CC-90-37 1
    38 Front Bearing CC-90-38 1
    39 Crankshaft CC-90-39 1
    40 Oil Fill Cap CC-90-40 1
    41 Oil Fill Cap O-Ring CC-90-41 1
    42 Crankcase CC-90-42 1
    43 Rear Bearing CC-90-43 1
    44 Crankcase Cover Bolt CC-90-44 4
    45 Crankcase Cover Washer CC-90-45 4
    46 Oil Sight Glass O-Ring CC-90-46 1
    47 Oil Sight Glass CC-90-47 1
    48 Oil Sight Glass Screw CC-90-48 4
    49 Flywheel Key CC-90-49 1
    50 After Cooler CC-90-50 1
    51 Safety Valve 20 PSI CC-90-51 1
    52 Elbow Connector w/ Gasket CC-90-52 1
    53 Cylinder Bolt Nut CC-90-53 12
    54H Valve Repair Kit (High Pressure Cyl.) CC-90-54H
    54L Valve Repair Kit (Low Pressure Cyl.) CC-90-54L
    55H Ring Repair Kit 65 CM (High Pressure Cyl.) CC-90-55H
    55L Ring Repair Kit 90 CM (Low Pressure Cyl.) CC-90-55L
