IHTT80G-BS

Iron Horse Air Compressor 10 Gallon 8 Horsepower Briggs And Stratton Engine

Iron Horse Air Compressor 10 Gallon 8 Horsepower Briggs And Stratton Engine

Regular price $1,395.00 USD
Regular price $1,995.00 USD Sale price $1,395.00 USD
Sale Sold out


  • A lift gate fee and a residential fee will need to be added in addition to shipping charges

    • This Item Has To Ship Truckline

      Dependable 8-HP Briggs & Stratton OHV Engine
    • Easy to start, works hard, lasts a long time
    • Delivers a quiet operation and maximum reliability
    • OHV provides more power, less fuel-use & lower emissions
    • 10-Gallon Capacity Twin Wheelbarrow Style Tanks
    • Largest in the industry; powers tools up to 16.5 CFM
    • Stable low profile is easy to move & transport
    • Rugged Solid Cast Iron Pump
    • Easy viewing oil sight glass
    • Sturdy and reliable air pressure wherever you need it
    • Good compressor strength and ability to withstand heavy workloads
    • 3 Individual & Removable Cylinders
    • Allows for easy maintenance
    • Delivers smoother & cooler operation
    • High Efficiency Reed Valves
    • Offer maximum and reliable performance
    • Efficient heat removal from flywheel for cooler running and longer life
    • Engine Slow-Down Control
    • Engine HP 8
    • Auto Idle Yes
    • Engine Brand Briggs & Stratton
    • Starting System Recoil Start
    • Pump CFM 16.5
    • CFM Rated @ 90 PSI
    • Pump Material Solid Cast Iron
    • Max PSI 150 PSI
    • Oil Sight Glass Yes
    • Pump Type Single-Stage
    • After Cooler No
    • Pump Drive Belt Drive
    • Oil Type Oil Lubricated
    • Oil System Splash Lubricated
    • Pump Low Oil Shut-off No
    • Tank Tank Size 10 Gallons
    • Tank Included Yes
    • Tank Outlet 1/4 Inch
    • Electronic Drain Valve No
    • Tank Orientation Horizontal
    • Overview Weight 189 Pounds
    • Consumer Warranty 1 Year
    • Commercial Warranty 1 Year
    • Product Length 46 Inches
    • Product Width 17 Inches
    • Product Height 27 Inches
    • Power Type Control and regulates the engine idle speed
    • Reduces operating costs & unnecessary wear
    • Built For Professional Use
    • Sturdy belt guard protects the belt and the user
    • Easy view oil sight gauge
    • Pneumatic tire for easy handling & maneuverability
    • TMI105000



      Item Description Product Code
      1 Compressor w/ Flywheel CC3065
      2 Discharge Tube TU-20-AL
      3 Pressure Gauge PG200-2.5SI1/4
      4 Air Receiver (tank) 10TT41X5-IH
      5 Drain Cock -Assembly 240-B           (2)
      6 V-Belt 4L540
      7 Belt Guard TT-GUARD
      8 Engine BS-1502122119E9
      9 Unloader NRP-A-95-125
      10 Pulley - Engine MA38X3/4
      11 Safety Valve PSV1/4-150
      12 Engine Control w/ Cable TCP-48
      13 Handle Grip TT-GRIP
      14 Vibration Dampner TT-FOOT
      15 Pneumatic Wheel TT-WHEEL-SQ-FF
        Axle WA1001
      16 Ball Valve BV1/4MXF
      Eagle Compressor Oil EAOIL10

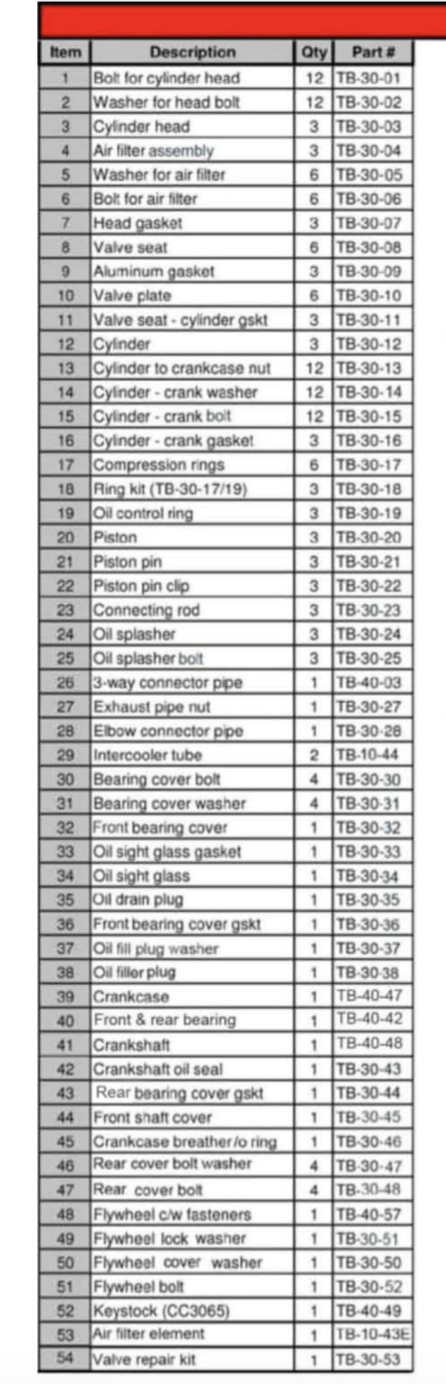

      Item Description Quantity Part Number
      1 Bolt for Cylinder Head 12
      TB-30-01
      2 Washer for Head Bolt 12 TB-30-02
      3 Cylinder Head 3 TB-30-03
      4 Air Filter 3 TB-30-04
      5 Washer for Air Filter 6 TB-30-05
      6 Bolt for Air Filter 6 TB-30-06
      7 Head Gasket 3 TB-30-07
      8 Valve Seat 6 TB-30-08
      9 Aluminum Gasket 3 TB-30-09
      10 Valve Plate Reed 6 TB-30-10
      11 Valve Seat / Cylinder Gasket 3 TB-30-11
      12 Cylinder 3 TB-30-12
      13 Cylinder to Crankcase Nut 12 TB-30-13
      14 Cylinder-Crank Washer 12 TB-30-14
      15 Cylinder-Crank Bolt 12 TB-30-15
      16 Cylinder-Crank Gasket 3 TB-30-16
      17 Compression Rings 6 TB-30-17
      18 Ring Kit 3 TB-30-18
      19 Oil Control Ring 3 TB-30-19
      20 Piston 3 TB-30-20
      21 Piston Pin 3 TB-30-21
      22 Piston Pin Clip 3 TB-30-22
      23 Connecting Rod 3 TB-30-23
      24 Oil Splasher 3 TB-30-24
      25 Oil Splasher Bolt 3 TB-30-25
      26 3-Way Connector Pipe 1 TB-40-03
      27 Exhaust Pipe Nut 1 TB-30-27
      28 Elbow Connector Pipe 1 TB-30-28
      29 Intercooler Tube 2 TB-10-44
      30 Bearing Cover Bolt 4 TB-30-30
      31 Bearing Cover Bolt Washer 4 TB-30-31
      32 Front Bearing Cover 1 TB-30-32
      33 Oil Sight Glass Gasket 1 TB-30-33
      34 Oil Sight Glass 1 TB-30-34
      35 Oil Drain Plug 1 TB-30-35
      36 Front Bearing Cover Gasket 1 TB-30-36
      37 Oil Fill Plug Washer 1 TB-30-37
      38 Oil Fill Plug 1 TB-30-38
      39 Crankcase 1 TB-40-47
      40 Front & Rear Bearing 1 TB-40-42
      41 Crankshaft 1 TB-40-48
      42 Crankshaft Oil Seal
      1 TB-30-43
      43 Rear Bearing Cover Gasket
      1 TB-30-44
      44 Front Shaft Cover
      1 TB-30-45
      45 Crankcase Breather/ O Ring
      1 TB-30-46
      46 Rear Cover Bolt Washer
      4 TB-30-47
      47 Rear Cover Bolt 4 TB-30-48
      48 Flywheel C/W Fasteners
      1 TB-40-57
      49 Flywheel Lock Washer 1 TB-30-51
      50 Flywheel Cover Washer 1 TB-30-50
      51 Flywheel Bolt 1 TB-30-52
      52 Keystock
      1 TB-40-49
      53 Air Filter Element 1 TB-10-43E
      A Valve Repair Kit 1 TB-30-53

      Materials

      Dimensions

      Care information
