Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon
Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon
Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon-iron horse air compressors-Tool Mart Inc.
Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon-iron horse air compressors-Tool Mart Inc.
Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon-iron horse air compressors-Tool Mart Inc.
Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon-iron horse air compressors-Tool Mart Inc.

Iron Horse Air Compressor 13 Horsepower Honda Engine 30 Gallon

IH11G30TRKE

Regular price $4,052.60 $2,705.00 Sale

 A LIFTGATE FEE AND RESIDENTIAL FEE WILL STILL BE REQUIRED!

  • Iron Horse Air Compressor
  • 13 Horse Power Honda Engine Electric Start
  • 30 Gallon
    • Rugged Truck Mounted 2 Stage Unit Produces 22 CFM @ 90 PSI
    • Designed for farm duty, hobbiest, and semi-pro jobs
    • Sturdy and reliable air pressure wherever you need it
    • Dependable 11-HP Honda GX340 Commercial Grade Engine
    • Electric and manual start for ease of operation
    • OHV design for increased efficiency & optimal power transfer
    • Precision engineered components result in lower vibration
    • Rugged 3 Cylinder Cast Iron Pump
    • High efficiency reed valves for maximum performance
    • Built to work hard and last a long time
    • Efficient heat removal from flywheel for cooler running
    • "V" Style Design
    • Minimizes vibration, improves cooling, extends compressor life
    • Large bore pistons give the ability to run at less RPM
    • Individual & Removable Cylinders
    • Provide smoother & cooler operation
    • Allows for easy maintenance
    • Engine Idle Control
    • Control and regulates the engine idle speed
    • Reduces operating costs & excessive wear
    • Large Air Filters With Automotive Drop-In Style Elements
    • Extend compressor life, easy to maintain
    • 30 Gallon ASME Tank
    • Rated to 200 PSI for safety; heavy duty 3/4" ball valve included
    • Convenient oil drain on front of unit
    • Sturdy metal belt guard protects the belt & the user
    • Easy View Oil Sight Gauge
    • Monitor pump oil level at a glance
    • Simplifies maintenance
    • Auto Idle Yes
      Engine Brand Honda GX
      Starting System 12-Volt Key Start w/ Recoil
      Pump CFM 22
      CFM Rated @ 90 PSI
      Pump Material Solid Cast Iron
      Max PSI 200 PSI
      Oil Sight Glass Yes
      Pump Type Two-Stage
      After Cooler Yes
      Pump Drive Belt Drive
      Oil Type Oil Lubricated
      Oil System Splash Lubricated
      Pump Low Oil Shut-off No
      Tank Size 30 Gallons
      Tank Outlet 3/4 Inch
      Electronic Drain Valve No
      Tank Orientation Horizontal
      Weight 328 Pounds
      Certification ASME
      Consumer Warranty 1 Year
      Commercial Warranty 1 Year
      Product Length 44 Inches
      Product Width 19 Inches
      Product Height 37 Inches
      Power Type Gas
      TMI221470

Item Description Product Code
1 Compressor w/ Flywheel CC3090TS-AC
2 Discharge Tube (2.5ft) ASSY TU-3/4-CU
3 Pressure Gauge PG200-2.5R
4 Outlet Valve BV3/4MF
5 Air Receiver (tank) 30H16X38TRK-G
6 Drain Cock -Assembly 240-B
7 V-Belt A73
8 Belt Guard BG30GAL
9 Engine GX-340UTQAE2-B
10 Unloader NG-38-M-120-150
11 Pulley - Engine 2MAL37
12 Safety Valve PSV1/4-200
13 Engine Control w/ Cable TCLP-36-3104
  Bushing LX1
Eagle Compressor Oil EAOIL10

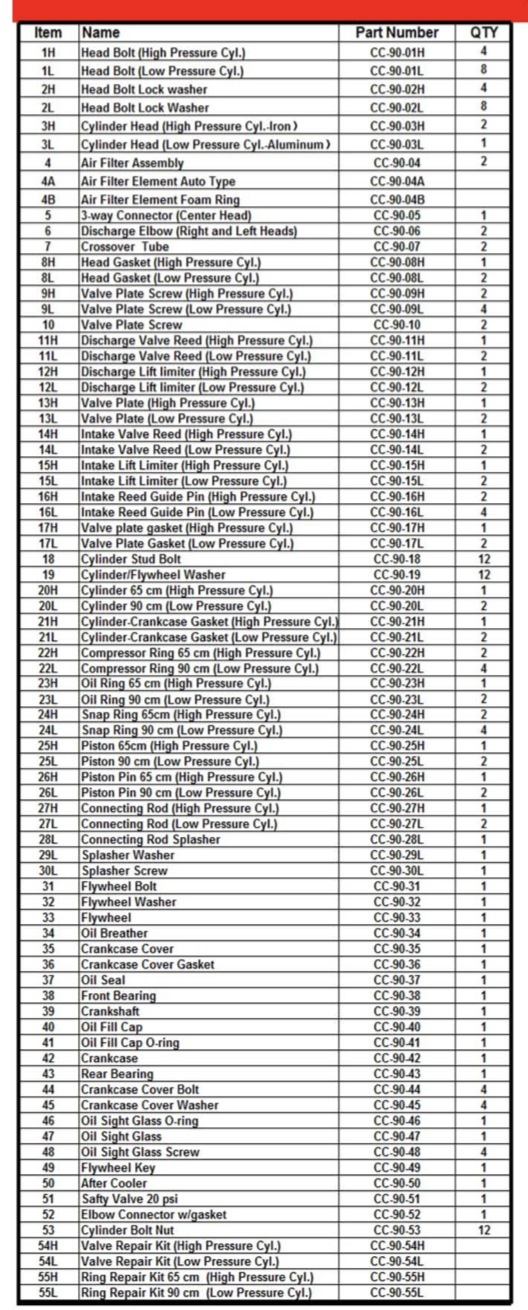

Item Name Part Number Quantity
1H Head Bolt (High Pressure Cyl.) CC-90-01H 4
1L Head Bolt (Low Pressure Cyl.) CC-90-01L 8
2H Head Bolt Lock Washer CC-90-02H 4
2L Head Bolt Lock Washer CC-90-02L 8
3H Cylinder Head (High Pressure Cyl. - Iron) CC-90-03H 2
3L Cylinder Head (Low Pressure Cyl. - Aluminum) CC-90-03L 1
4 Air Filter Assembly CC-90-04 2
4A Air Filter Element Auto Type CC-90-04A
4B Air Filter Element Foam Ring CC-90-04B
5 3-Way Connector (Center Head) CC-90-05 1
6 Discharge Elbow (Right and Left Heads) CC-90-06 2
7 Crossover Tube CC-90-07 2
8H Head Gasket (High Pressure Cyl.) CC-90-08H 1
8L Head Gasket (Low Pressure Cyl.) CC-90-08L 2
9H Valve Plate Screw (High Pressure Cyl.) CC-90-09H 2
9L Valve Plate Screw (Low Pressure Cyl.) CC-90-09L 4
10 Valve Plate Screw CC-90-10 2
11H Discharge Valve Reed (High Pressure Cyl.) CC-90-11H 1
11L Discharge Valve Reed (Low Pressure Cyl.) CC-90-11L 2
12H Discharge Lift Limiter (High Pressure Cyl.) CC-90-12H 1
12L Discharge Lift Limiter (Low Pressure Cyl.) CC-90-12L 2
13H Valve Plate (High Pressure Cyl.) CC-90-13H 1
13L Valve Plate (Low Pressure Cyl.) CC-90-13L 2
14H Intake Valve Reed (High Pressure Cyl.) CC-90-14H 1
14L Intake Valve Reed (Low Pressure Cyl.) CC-90-14L 2
15H Intake Lift Limiter (High Pressure Cyl.) CC-90-15H 1
15L Intake Lift Limiter (Low Pressure Cyl) CC-90-15L 2
16H Intake Reed Guide Pin (High Pressure Cyl.) CC-90-16H 2
16L Intake Reed Guide Pin (Low Pressure Cyl.) CC-90-16L 4
17H Valve Plate Gasket (High Pressure Cyl.) CC-90-17H 1
17L Valve Plate Gasket (Low Pressure Cyl.) CC-90-17L 2
18 Cylinder Stud Bolt CC-90-18 12
19 Cylinder/Flywheel Washer CC-90-19 12
20H Cylinder 65 CM (High Pressure Cyl.) CC-90-20H 1
20L Cylinder 90 CM (Low Pressure Cyl.) CC-90-20L 2
21H Cylinder-Crankcase Gasket (High Pressure Cyl.) CC-90-21H 1
21L Cylinder-Crankcase Gasket (Low Pressure Cyl.) CC-90-21L 2
22H Compressor Ring 65 CM (High Pressure Cyl.) CC-90-22H 2
22L Compressor Ring 90 CM (Low Pressure Cyl.) CC-90-22L 4
23H Oil Ring 65 CM (High Pressure Cyl.) CC-90-23H 1
23L Oil Ring 90 CM (Low Pressure Cyl.) CC-90-23L 2
24H Snap Ring 65 CM (High Pressure Cyl.) CC-90-24H 2
24L Snap Ring 90 CM (Low Pressure Cyl.) CC-90-24L 4
25H Piston 65 CM (High Pressure Cyl.) CC-90-25H 1
25L Piston 90 CM (Low Pressure Cyl.) CC-90-25L 2
26H Piston Pin 65 CM (High Pressure Cyl.)  CC-90-26H 1
26L Piston Pin 90 CM (Low Pressure Cyl.) CC-90-26L 2
27H Connecting Rod (High Pressure Cyl.) CC-90-27H 1
27L Connecting Rod (Low Pressure Cyl.) CC-90-27L 2
28L Connecting Rod Splasher CC-90-28L 1
29L Splasher Washer CC-90-29L 1
30L Splasher Screw CC-90-30L 1
31 Flywheel Bolt CC-90-31 1
32 Flywheel Washer CC-90-32 1
33 Flywheel CC-90-33 1
34 Oil Breather CC-90-34 1
35 Crankcase Cover CC-90-35 1
36 Crankcase Cover Gasket CC-90-36 1
37 Oil Seal CC-90-37 1
38 Front Bearing CC-90-38 1
39 Crankshaft CC-90-39 1
40 Oil Fill Cap CC-90-40 1
41 Oil Fill Cap O-Ring CC-90-41 1
42 Crankcase CC-90-42 1
43 Rear Bearing CC-90-43 1
44 Crankcase Cover Bolt CC-90-44 4
45 Crankcase Cover Washer CC-90-45 4
46 Oil Sight Glass O-Ring CC-90-46 1
47 Oil Sight Glass CC-90-47 1
48 Oil Sight Glass Screw CC-90-48 4
49 Flywheel Key CC-90-49 1
50 After Cooler CC-90-50 1
51 Safety Valve 20 PSI CC-90-51 1
52 Elbow Connector w/ Gasket CC-90-52 1
53 Cylinder Bolt Nut CC-90-53 12
54H Valve Repair Kit (High Pressure Cyl.) CC-90-54H
54L Valve Repair Kit (Low Pressure Cyl.) CC-90-54L
55H Ring Repair Kit 65 CM (High Pressure Cyl.) CC-90-55H
55L Ring Repair Kit 90 CM (Low Pressure Cyl.) CC-90-55L
