Iron Horse Air Compressor 5.5 Horsepower Honda

Iron Horse Air Compressor 5.5 Horsepower Honda

IHP55G25H1

$1,600.50 USD
$3,128.70 USD $1,600.50 USD
Sale Sold out

  • Brand Iron Horse
  • 5.5 Horse Power
  • 1 Phase
  • CFM 11 @ 90 PSI
  • Max Psi 150
  • Pump Drive Belt Drive
  • Pump Material Cast Iron
  • Pump Type Single
  • Oil System Splash Lubricated
  • Oil Type Oil  Lubricated
  • Oil Sight Glass: Yes
  • Low Oil Shut Off: No
  • Tank Size 25 Gallon
  • Tank Orintation: Horizontal
  • Tank Drain Valeve Manual
  • Tank Outlet 1/4"
  • After Cooler No
  • Air Dryer No
  • Air Filter No
  • Engine Brand Honda
  • ENGINE 5.5 Horsepower
  • Starting System Recoil
  • Type Portable
  • Warranty 1 Year
  • Lenght Inches 49
  • Width Inches40
  • Height Inches 53
  • Weight 215 LBS
  • Pre-Filter: No
  • Pressure Due Point: No
  • Fuel Type Gasoline
  • Start Type Recoil
  • Tyle Horizontal
  • Single Stage Gas Compressor
  • TMI120000

Item Description Product Code
1 Compressor w/ Flywheel CC2065
2 Discharge Tube  TU-20-AL
3 Engine GX-160UT1QX2-R
4 Pulley - Engine MA38X3/4
5 V-Belt 4L540
6 Belt Guard TT-GUARD
7 Air Receiver (tank) 25HEPORT-G
8 Pressure Gauge PG200-2.5R
9 Drain Cock  240-B
10 Safety Valve PSV1/4-150
11 Unloader NRP-A-95-125
12 Handle (Long) PT-HANDLE-25L
  Handle (Short) PT-HANDLE-24HS
13 Wheel PT-WHEEL-FF (2)
14 Vibration Dampner TT-FOOT
15 Engine Control w/ Cable TCLP-36
16 Ball Valve
 BV1/2MF
17 Shoulder Bolt
 E5001
Eagle Compressor Oil EAOIL10

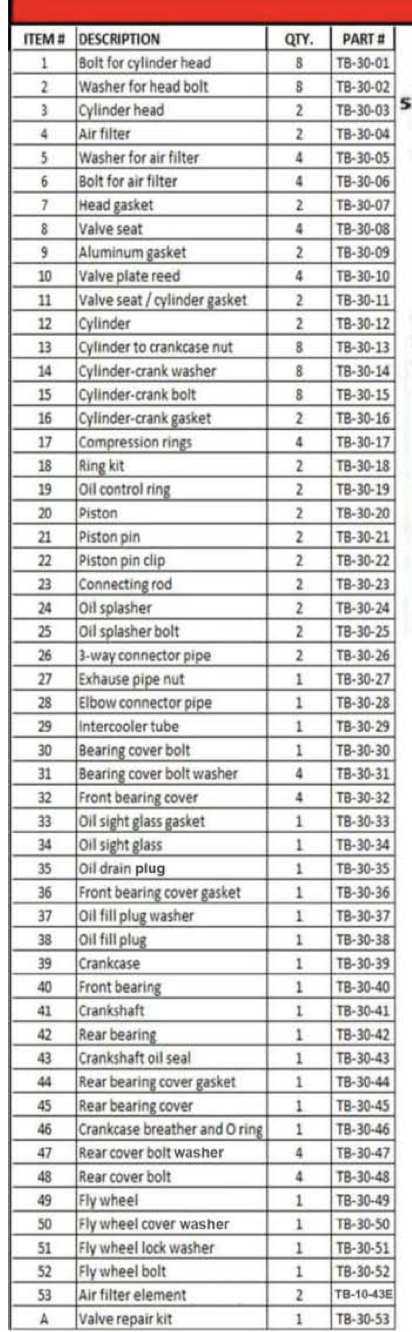

Item Description Quantity Part Number
1 Bolt for Cylinder Head 8 TB-30-01
2 Washer for Head Bolt 8 TB-30-02
3 Cylinder Head 2 TB-30-03
4 Air Filter 2 TB-30-04
5 Washer for Air Filter 4 TB-30-05
6 Bolt for Air Filter 4 TB-30-06
7 Head Gasket 2 TB-30-07
8 Valve Seat 4 TB-30-08
9 Aluminum Gasket 2 TB-30-09
10 Valve Plate Reed 4 TB-30-10
11 Valve Seat / Cylinder Gasket 2 TB-30-11
12 Cylinder 2 TB-30-12
13 Cylinder to Crankcase Nut 8 TB-30-13
14 Cylinder-Crank Washer 8 TB-30-14
15 Cylinder-Crank Bolt 8 TB-30-15
16 Cylinder-Crank Gasket 2 TB-30-16
17 Compression Rings 4 TB-30-17
18 Ring Kit 2 TB-30-18
19 Oil Control Ring 2 TB-30-19
20 Piston 2 TB-30-20
21 Piston Pin 2 TB-30-21
22 Piston Pin Clip 2 TB-30-22
23 Connecting Rod 2 TB-30-23
24 Oil Splasher 2 TB-30-24
25 Oil Splasher Bolt 2 TB-30-25
26 3-Way Connector Pipe 2 TB-30-26
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 1 TB-30-29
30 Bearing Cover Bolt 1 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 4 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-30-39
40 Front Bearing 1 TB-30-40
41 Crankshaft 1 TB-30-41
42 Rear Bearing 1 TB-30-42
43 Crankshaft Oil Seal 1 TB-30-43
44 Rear Bearing Cover Gasket 1 TB-30-44
45 Rear Bearing Cover 1 TB-30-45
46 Crankcase Breather and O Ring 1 TB-30-46
47 Rear Cover Bolt Washer 4 TB-30-47
48 Rear Cover Bolt 4 TB-30-48
49 Flywheel 1 TB-30-49
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Lock Washer 1 TB-30-51
52 Flywheel Bolt 1 TB-30-52
53 Air Filter Element 2 TB-10-43E
A Valve Repair Kit 1 TB-30-53
