Iron Horse Air Compressor 6 Horsepower Kohler Engine 10 Gallon Twin Tank

Iron Horse Air Compressor 6 Horsepower Kohler Engine 10 Gallon Twin Tank

IHTT60G

$1,595.00 USD
$1,995.00 USD $1,595.00 USD
Sale Sold out


  • A lift gate fee and a residential fee may still be charged!

    This Item Has To Ship Truckline

  •

    Dependable 6 HP Kohler Engine
  • Easy to start, works hard, lasts a long time
  • 2 Individual & Removable Cylinders
  • Smoother & cooler operation
  • 10 Gallon Capacity Twin Wheelbarrow Style Tanks
  • Largest in the industry; powers tools up to 11 CFM
  • Stable low profile is easy to move & transport
  • High Efficiency Reed Valves
  • Offer maximum performance
  • Engine Slow-Down Control
  • Reduces operating costs & unnecessary wear
  • Built For Professional Use
  • Sturdy belt guard protects the belt and the user
  • Easy view oil sight gauge
  • Pneumatic tire for easy handling & manuverabilty
  • 6 HP
  • Engine Brand 6 Horse Power Kohler
  • Recoil Start System
  • Engine Low Oil Shut Off:  No
  • CFM 11 @ 90 PSI
  • Pump Material Solid Cast Iron
  • Max PSI 150 PSI
  • Oil Sight Glass Yes
  • Pump Type Single Stage
  • After Cooler No
  • Pump Drive Belt Drive
  • OIl Type Oil Lubricated
  • Oil System Splash Lubricated
  • Pump Low Oil Shut Off No
  • Tank Outlet 1/4 Inch
  • Electronic Drain Valve No
  • Tank Orientation Horizontal
  • Weight 162 Pounds
  • Consumer Warranty
    1 Year
  • Commercial Warranty
    1 Year
  • Product Length 50 Inches
  • Product Width 18 Inches
  • Product Height 24 Inches
  • Power Type Gas
  • TMi105000

Item Description Product Code
1 Compressor w/ Flywheel CC2065
2 Discharge Tube TU-23-AL
3 Pressure Gauge PG200-2.5SI1/4
4 Air Receiver (tank) 10TT41X5-IH
5 Drain Cock -Assembly 240-B       (2)
6 V-Belt A49
7 Belt Guard TT-GUARD
8 Engine KO-PA-SH265-3011
9 Unloader NRP-A-95-125
10 Pulley - Engine MA38X3/4
11 Safety Valve PSV1/4-150
12 Engine Control w/ Cable TCP-48
13 Handle Grip TT-GRIP
14 Vibration Dampner TT-FOOT
15 Pneumatic Wheel TT-WHEEL-SQ-FF
  Axle WA1001
16 Ball Valve BV1/4MXF
Eagle Compressor Oil EAOIL10

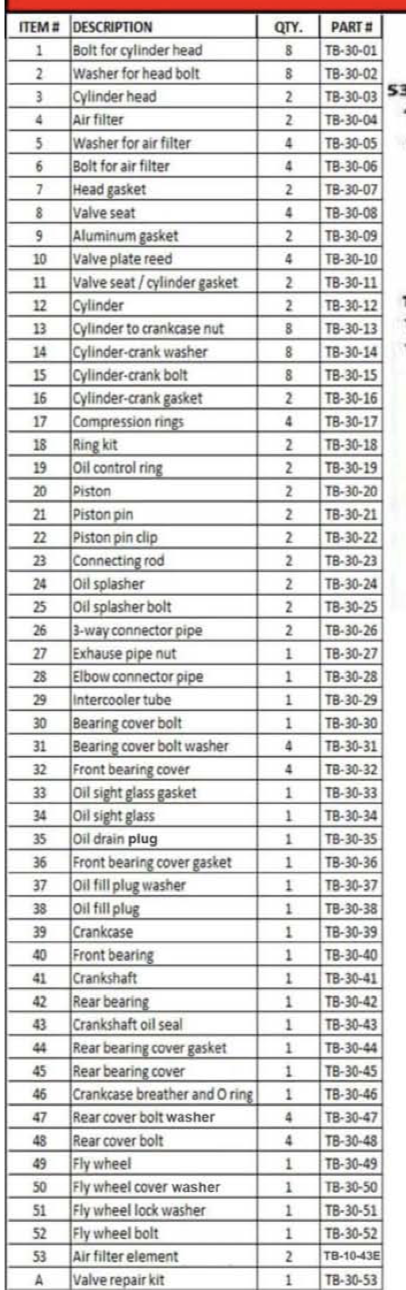

Item Description Quantity Part Number
1 Bolt for Cylinder Head 8 TB-30-01
2 Washer for Head Bolt 8 TB-30-02
3 Cylinder Head 2 TB-30-03
4 Air Filter 2 TB-30-04
5 Washer for Air Filter 4 TB-30-05
6 Bolt for Air Filter 4 TB-30-06
7 Head Gasket 2 TB-30-07
8 Valve Seat 4 TB-30-08
9 Aluminum Gasket 2 TB-30-09
10 Valve Plate Reed 4 TB-30-10
11 Valve Seat / Cylinder Gasket 2 TB-30-11
12 Cylinder 2 TB-30-12
13 Cylinder to Crankcase Nut 8 TB-30-13
14 Cylinder-Crank Washer 8 TB-30-14
15 Cylinder-Crank Bolt 8 TB-30-15
16 Cylinder-Crank Gasket 2 TB-30-16
17 Compression Rings 4 TB-30-17
18 Ring Kit 2 TB-30-18
19 Oil Control Ring 2 TB-30-19
20 Piston 2 TB-30-20
21 Piston Pin 2 TB-30-21
22 Piston Pin Clip 2 TB-30-22
23 Connecting Rod 2 TB-30-23
24 Oil Splasher 2 TB-30-24
25 Oil Splasher Bolt 2 TB-30-25
26 3-Way Connector Pipe 2 TB-30-26
27 Exhaust Pipe Nut 1 TB-30-27
28 Elbow Connector Pipe 1 TB-30-28
29 Intercooler Tube 1 TB-30-29
30 Bearing Cover Bolt 1 TB-30-30
31 Bearing Cover Bolt Washer 4 TB-30-31
32 Front Bearing Cover 4 TB-30-32
33 Oil Sight Glass Gasket 1 TB-30-33
34 Oil Sight Glass 1 TB-30-34
35 Oil Drain Plug 1 TB-30-35
36 Front Bearing Cover Gasket 1 TB-30-36
37 Oil Fill Plug Washer 1 TB-30-37
38 Oil Fill Plug 1 TB-30-38
39 Crankcase 1 TB-30-39
40 Front Bearing 1 TB-30-40
41 Crankshaft 1 TB-30-41
42 Rear Bearing 1 TB-30-42
43 Crankshaft Oil Seal 1 TB-30-43
44 Rear Bearing Cover Gasket 1 TB-30-44
45 Rear Bearing Cover 1 TB-30-45
46 Crankcase Breather and O Ring 1 TB-30-46
47 Rear Cover Bolt Washer 4 TB-30-47
48 Rear Cover Bolt 4 TB-30-48
49 Flywheel 1 TB-30-49
50 Flywheel Cover Washer 1 TB-30-50
51 Flywheel Lock Washer 1 TB-30-51
52 Flywheel Bolt 1 TB-30-52
53 Air Filter Element 2 TB-10-43E
A Valve Repair Kit 1 TB-30-53
