Iron Horse Air Compressor 80 Gallon With Magnetic Starter
Iron Horse Air Compressor 80 Gallon With Magnetic Starter
IHD7580V2-CS
Regular price
$2,400.00 USD
Regular price
$3,043.60 USD
Sale price
$2,400.00 USD
Unit price
per
Couldn't load pickup availability
A lift gate fee and a residential fee may still be charged although this item qualifies for free shipping!
-
This Item Has To Ship Truckline
- Rugged Three Cylinder Case Iron Compressor
- V Stule Design Minimizes Vibration, Improves Coolin And Extends Compressor Life
- Individual And Removalbe Cylinders For Smoothe rcooler Coperation And Easy Maintenance
- No Magnetic Motore Starter Required
- Heavy Duty Pressure Switch With On And Off Control
- Thermally protected 7.5 HP (Peak) 575 Volt Electric Motor
- 80 Gallon ASME Registered Tank, 200 PSI Rating
- Easy View Oil Sigh Gauge
- High Efficiency Reed Valves For Maximum Performance
- Efficient Heat Removal from Fly Wheel For Cooler Running And Longer Life
- Sturdy Metal Belt Gaurd
- Heavy Duty 3/4 Inch Ball Valve Included
- CSA Approved
- 22CFM @ 90 PSI
- Length 24 Inches
- Width 35 Inches
- Height 69 Inches
- TMI202500
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC3090TS-AC |
| 2 | Discharge Tube (2.5ft) ASSY | TU-3/4-CU ASSEMBLY |
| 3 | Pressure Gauge | PG200-2.5R |
| 4 | Outlet Valve | BV3/4MF |
| 5 | Air Receiver (tank) | 80VE24X48-G |
| 6 | Drain Cock -Assembly | 240-B |
| 7 | V-Belt | A66 |
| 8 | Belt Guard | BG80GAL |
| 9 | Motor - 1 Phase, 208/230V | EM07.5-18-50 |
| 10 | Check Valve | P7575ST |
| 11 | Pressure Switch | CS-6.3/10A |
| 12 | Pulley - Motor | 2MAL62 |
| 13 | Hub or Bushing | LX13/8 |
| 14 | Unloader Tube | TU-1/4-CU |
| **Fittings Required for TU-1/4CU | 68-4A | |
| 15 | Safety Valve | PSV1/4-200 |
| Eagle Compressor Oil | EAOIL10 |

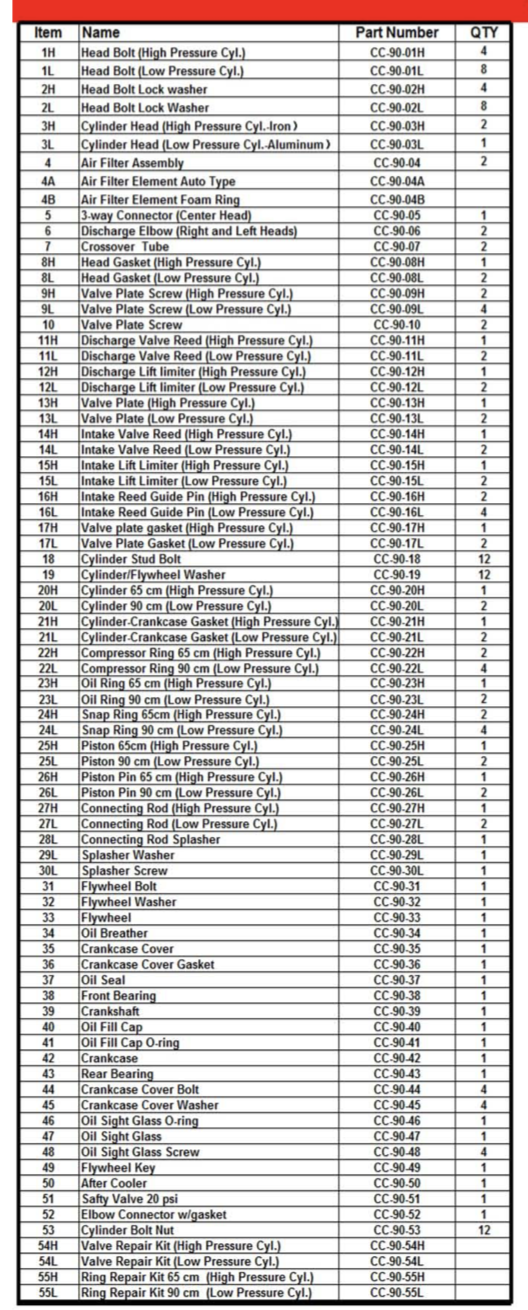

| Item | Name | Part Number | Quantity |
| 1H | Head Bolt (High Pressure Cyl.) | CC-90-01H | 4 |
| 1L | Head Bolt (Low Pressure Cyl.) | CC-90-01L | 8 |
| 2H | Head Bolt Lock Washer | CC-90-02H | 4 |
| 2L | Head Bolt Lock Washer | CC-90-02L | 8 |
| 3H | Cylinder Head (High Pressure Cyl. - Iron) | CC-90-03H | 2 |
| 3L | Cylinder Head (Low Pressure Cyl. - Aluminum) | CC-90-03L | 1 |
| 4 | Air Filter Assembly | CC-90-04 | 2 |
| 4A | Air Filter Element Auto Type | CC-90-04A | |
| 4B | Air Filter Element Foam Ring | CC-90-04B | |
| 5 | 3-Way Connector (Center Head) | CC-90-05 | 1 |
| 6 | Discharge Elbow (Right and Left Heads) | CC-90-06 | 2 |
| 7 | Crossover Tube | CC-90-07 | 2 |
| 8H | Head Gasket (High Pressure Cyl.) | CC-90-08H | 1 |
| 8L | Head Gasket (Low Pressure Cyl.) | CC-90-08L | 2 |
| 9H | Valve Plate Screw (High Pressure Cyl.) | CC-90-09H | 2 |
| 9L | Valve Plate Screw (Low Pressure Cyl.) | CC-90-09L | 4 |
| 10 | Valve Plate Screw | CC-90-10 | 2 |
| 11H | Discharge Valve Reed (High Pressure Cyl.) | CC-90-11H | 1 |
| 11L | Discharge Valve Reed (Low Pressure Cyl.) | CC-90-11L | 2 |
| 12H | Discharge Lift Limiter (High Pressure Cyl.) | CC-90-12H | 1 |
| 12L | Discharge Lift Limiter (Low Pressure Cyl.) | CC-90-12L | 2 |
| 13H | Valve Plate (High Pressure Cyl.) | CC-90-13H | 1 |
| 13L | Valve Plate (Low Pressure Cyl.) | CC-90-13L | 2 |
| 14H | Intake Valve Reed (High Pressure Cyl.) | CC-90-14H | 1 |
| 14L | Intake Valve Reed (Low Pressure Cyl.) | CC-90-14L | 2 |
| 15H | Intake Lift Limiter (High Pressure Cyl.) | CC-90-15H | 1 |
| 15L | Intake Lift Limiter (Low Pressure Cyl) | CC-90-15L | 2 |
| 16H | Intake Reed Guide Pin (High Pressure Cyl.) | CC-90-16H | 2 |
| 16L | Intake Reed Guide Pin (Low Pressure Cyl.) | CC-90-16L | 4 |
| 17H | Valve Plate Gasket (High Pressure Cyl.) | CC-90-17H | 1 |
| 17L | Valve Plate Gasket (Low Pressure Cyl.) | CC-90-17L | 2 |
| 18 | Cylinder Stud Bolt | CC-90-18 | 12 |
| 19 | Cylinder/Flywheel Washer | CC-90-19 | 12 |
| 20H | Cylinder 65 CM (High Pressure Cyl.) | CC-90-20H | 1 |
| 20L | Cylinder 90 CM (Low Pressure Cyl.) | CC-90-20L | 2 |
| 21H | Cylinder-Crankcase Gasket (High Pressure Cyl.) | CC-90-21H | 1 |
| 21L | Cylinder-Crankcase Gasket (Low Pressure Cyl.) | CC-90-21L | 2 |
| 22H | Compressor Ring 65 CM (High Pressure Cyl.) | CC-90-22H | 2 |
| 22L | Compressor Ring 90 CM (Low Pressure Cyl.) | CC-90-22L | 4 |
| 23H | Oil Ring 65 CM (High Pressure Cyl.) | CC-90-23H | 1 |
| 23L | Oil Ring 90 CM (Low Pressure Cyl.) | CC-90-23L | 2 |
| 24H | Snap Ring 65 CM (High Pressure Cyl.) | CC-90-24H | 2 |
| 24L | Snap Ring 90 CM (Low Pressure Cyl.) | CC-90-24L | 4 |
| 25H | Piston 65 CM (High Pressure Cyl.) | CC-90-25H | 1 |
| 25L | Piston 90 CM (Low Pressure Cyl.) | CC-90-25L | 2 |
| 26H | Piston Pin 65 CM (High Pressure Cyl.) | CC-90-26H | 1 |
| 26L | Piston Pin 90 CM (Low Pressure Cyl.) | CC-90-26L | 2 |
| 27H | Connecting Rod (High Pressure Cyl.) | CC-90-27H | 1 |
| 27L | Connecting Rod (Low Pressure Cyl.) | CC-90-27L | 2 |
| 28L | Connecting Rod Splasher | CC-90-28L | 1 |
| 29L | Splasher Washer | CC-90-29L | 1 |
| 30L | Splasher Screw | CC-90-30L | 1 |
| 31 | Flywheel Bolt | CC-90-31 | 1 |
| 32 | Flywheel Washer | CC-90-32 | 1 |
| 33 | Flywheel | CC-90-33 | 1 |
| 34 | Oil Breather | CC-90-34 | 1 |
| 35 | Crankcase Cover | CC-90-35 | 1 |
| 36 | Crankcase Cover Gasket | CC-90-36 | 1 |
| 37 | Oil Seal | CC-90-37 | 1 |
| 38 | Front Bearing | CC-90-38 | 1 |
| 39 | Crankshaft | CC-90-39 | 1 |
| 40 | Oil Fill Cap | CC-90-40 | 1 |
| 41 | Oil Fill Cap O-Ring | CC-90-41 | 1 |
| 42 | Crankcase | CC-90-42 | 1 |
| 43 | Rear Bearing | CC-90-43 | 1 |
| 44 | Crankcase Cover Bolt | CC-90-44 | 4 |
| 45 | Crankcase Cover Washer | CC-90-45 | 4 |
| 46 | Oil Sight Glass O-Ring | CC-90-46 | 1 |
| 47 | Oil Sight Glass | CC-90-47 | 1 |
| 48 | Oil Sight Glass Screw | CC-90-48 | 4 |
| 49 | Flywheel Key | CC-90-49 | 1 |
| 50 | After Cooler | CC-90-50 | 1 |
| 51 | Safety Valve 20 PSI | CC-90-51 | 1 |
| 52 | Elbow Connector w/ Gasket | CC-90-52 | 1 |
| 53 | Cylinder Bolt Nut | CC-90-53 | 12 |
| 54H | Valve Repair Kit (High Pressure Cyl.) | CC-90-54H | |
| 54L | Valve Repair Kit (Low Pressure Cyl.) | CC-90-54L | |
| 55H | Ring Repair Kit 65 CM (High Pressure Cyl.) | CC-90-55H | |
| 55L | Ring Repair Kit 90 CM (Low Pressure Cyl.) | CC-90-55L |
