Iron Horse Air Compressor With Electric Start 6 Horse Power Briggs And Stratton Engine

Iron Horse Air Compressor With Electric Start 6 Horse Power Briggs And Stratton Engine

IHP60GE25H1-BS

$1,622.05 USD
$2,495.00 USD $1,622.05 USD
Sale Sold out

  • CFM / PSI: 11.0 CFM @ 90 PSI
  • HorsePower: 6.0 Briggs And Stratton
  • Electric  Start
  • Pump Material Solid Cast Iron
  • Pump Type Singe Stage
  • Oil Lubricated
  • Tank Outlet 1/4"
  • Max Rated PSI: 150
  • Air Tank Capacity (Gal): 25
  • Reliable 6 HP Briggs And Stratton
  • Starts Easy, Works Hard And Runs Quiet
  • Auto Idel Saves Fuel
  • Cast Iron Twin Cylinder Pump Durable And Dependable Operates Smoothly
  • Tough Enough For Professional Use And Large Tools Up To 11 CFM
  • Sturdy 25 Gallon Horizontal Tank Handles On Each End For Ease Of Transport
  • Pneumatic Wheels Dampen Vibration
  • Top Mounted Pressure Gauge Protected Location Is Still Easy To See
  • Rugged 2 And 3 Cylinder Cast Iron Compressors
  • Individual And Removable Cylinders For Smoother And Cooler Operation
  • High Efficiency Reed Valves For Maximum Performance
  • Efficient Heat Removal From Fly Wheel For Cooler Running And Longer Life
  • Sturdy Belt Guard
  • 1 Year Factory Warranty
  • TMI120000

                                                Item Description Product Code
                                                1 Compressor w/ Flywheel CC2065
                                                2 Discharge Tube  TU-20-AL
                                                3 Engine BS-12T4170118F8-C1040
                                                4 Pulley - Engine MA38X3/4
                                                5 V-Belt 4L540
                                                6 Belt Guard TT-GUARD
                                                7 Air Receiver (tank) 25HEPORT-G
                                                8 Pressure Gauge PG200-2.5R
                                                9 Drain Cock  240-B
                                                10 Safety Valve PSV1/4-150
                                                11 Unloader NRP-A-95-125
                                                12 Handle (Long) PT-HANDLE-25L
                                                  Handle (Short) PT-HANDLE-24HS
                                                13 Wheel PT-WHEEL-FF
                                                14 Vibration Dampner TT-FOOT
                                                15 Engine Control w/ Cable TCLP-36-0817
                                                16 Regulator R202-1/4
                                                17 Pressure Gauge (Regulator) PT0160
                                                18 Coupler CO1/2
                                                  Hose Assembly TT-HOSE
                                                Eagle Compressor Oil EAOIL10

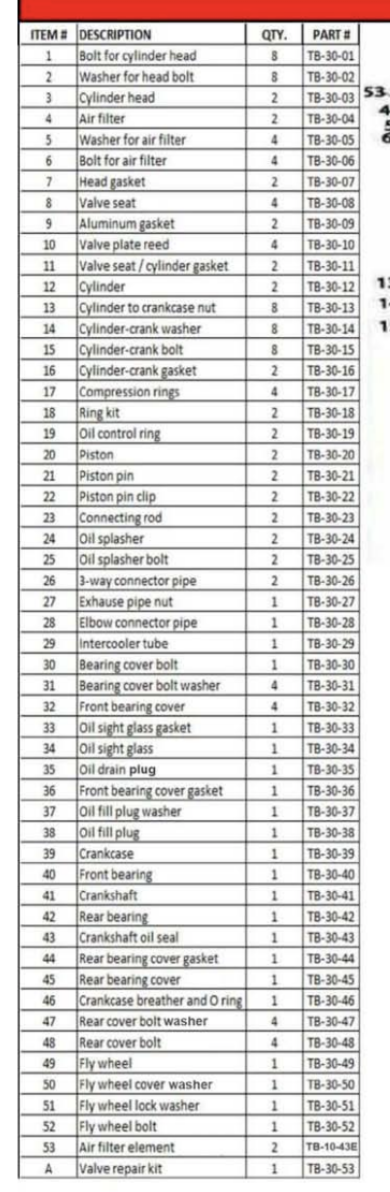

                                                Item Description Quantity Part Number
                                                1 Bolt for Cylinder Head 8 TB-30-01
                                                2 Washer for Head Bolt 8 TB-30-02
                                                3 Cylinder Head 2 TB-30-03
                                                4 Air Filter 2 TB-30-04
                                                5 Washer for Air Filter 4 TB-30-05
                                                6 Bolt for Air Filter 4 TB-30-06
                                                7 Head Gasket 2 TB-30-07
                                                8 Valve Seat 4 TB-30-08
                                                9 Aluminum Gasket 2 TB-30-09
                                                10 Valve Plate Reed 4 TB-30-10
                                                11 Valve Seat / Cylinder Gasket 2 TB-30-11
                                                12 Cylinder 2 TB-30-12
                                                13 Cylinder to Crankcase Nut 8 TB-30-13
                                                14 Cylinder-Crank Washer 8 TB-30-14
                                                15 Cylinder-Crank Bolt 8 TB-30-15
                                                16 Cylinder-Crank Gasket 2 TB-30-16
                                                17 Compression Rings 4 TB-30-17
                                                18 Ring Kit 2 TB-30-18
                                                19 Oil Control Ring 2 TB-30-19
                                                20 Piston 2 TB-30-20
                                                21 Piston Pin 2 TB-30-21
                                                22 Piston Pin Clip 2 TB-30-22
                                                23 Connecting Rod 2 TB-30-23
                                                24 Oil Splasher 2 TB-30-24
                                                25 Oil Splasher Bolt 2 TB-30-25
                                                26 3-Way Connector Pipe 2 TB-30-26
                                                27 Exhaust Pipe Nut 1 TB-30-27
                                                28 Elbow Connector Pipe 1 TB-30-28
                                                29 Intercooler Tube 1 TB-30-29
                                                30 Bearing Cover Bolt 1 TB-30-30
                                                31 Bearing Cover Bolt Washer 4 TB-30-31
                                                32 Front Bearing Cover 4 TB-30-32
                                                33 Oil Sight Glass Gasket 1 TB-30-33
                                                34 Oil Sight Glass 1 TB-30-34
                                                35 Oil Drain Plug 1 TB-30-35
                                                36 Front Bearing Cover Gasket 1 TB-30-36
                                                37 Oil Fill Plug Washer 1 TB-30-37
                                                38 Oil Fill Plug 1 TB-30-38
                                                39 Crankcase 1 TB-30-39
                                                40 Front Bearing 1 TB-30-40
                                                41 Crankshaft 1 TB-30-41
                                                42 Rear Bearing 1 TB-30-42
                                                43 Crankshaft Oil Seal 1 TB-30-43
                                                44 Rear Bearing Cover Gasket 1 TB-30-44
                                                45 Rear Bearing Cover 1 TB-30-45
                                                46 Crankcase Breather and O Ring 1 TB-30-46
                                                47 Rear Cover Bolt Washer 4 TB-30-47
                                                48 Rear Cover Bolt 4 TB-30-48
                                                49 Flywheel 1 TB-30-49
                                                50 Flywheel Cover Washer 1 TB-30-50
                                                51 Flywheel Lock Washer 1 TB-30-51
                                                52 Flywheel Bolt 1 TB-30-52
                                                53 Air Filter Element 2 TB-10-43E
                                                A Valve Repair Kit 1 TB-30-53
