Iron Horse Electric Start Air Compressor
Iron Horse Electric Start Air Compressor
IHTT60GE-BS
Regular price
$1,255.15 USD
Regular price
$1,955.00 USD
Sale price
$1,255.15 USD
Unit price
per
A lift gate fee and a residential fee will still be charged!
This Item Has To Ship Truckline
- Iron Horse Electric Start Air Compressor
- Dependable 6-HP Briggs & Stratton OHV Engine
- Delivers a quiet operation and maximum reliability
- OHV provides more power for easy starting, less fuel-use & lower emissions
- 10-Gallon Capacity Twin Wheelbarrow Style Tanks
- Largest in the industry; powers tools up to 11 CFM
- Stable low profile design is easy to move & transport w/ large pneumatic tire
- Rugged Solid Cast Iron Pump
- Easy viewing oil sight glass
- Sturdy and reliable air pressure wherever you need it
- Good compressor strength and ability to withstand heavy workloads
- 3 Individual & Removable Cylinders
- Allows for easy maintenance
- Delivers smoother & cooler operation
- High-Efficiency Reed Valves
- Offer maximum and reliable performance
- Efficient heat removal from flywheel for cooler running and longer life
- Built For Professional Use
- Easy view oil sight gauge
- Sturdy belt guard protects the belt and the user
- Engine Slow-Down Control
- Control and regulates the engine idle speed
- Reduces operating costs & unnecessary wear
- 6 HP
- Auto Idle Yes
- Engine Brand Briggs & Stratton
- Starting System Recoil Start
- Engine Low Oil Shut-off No
- Pump CFM 11
- CFM Rated @ 90 PSI
- Pump Material Solid Cast Iron
- Max PSI 150 PSI
- Oil Sight Glass Yes
- Pump Type Single-Stage
- After Cooler No
- Pump Drive Belt Drive
- Oil Type Oil Lubricated
- Oil System Splash Lubricated
- Pump Low Oil Shut-off No
- Tank Tank Size 10 Gallons
- Tank IncludedYes
- Tank Outlet 1/4 Inch
- Electronic Drain Valve No
- Tank Orientation Horizontal
- Overview Weight 190 Pounds
- Consumer Warranty 1 Year
- Commercial Warranty 1 Year
- Product Length 50 Inches 6
- Product Width 18 Inches
- Product Height 24 Inches
- Power Type Gas
- SHIPPING DIMENSIONS- 224# 40X48X34
- TMI105000

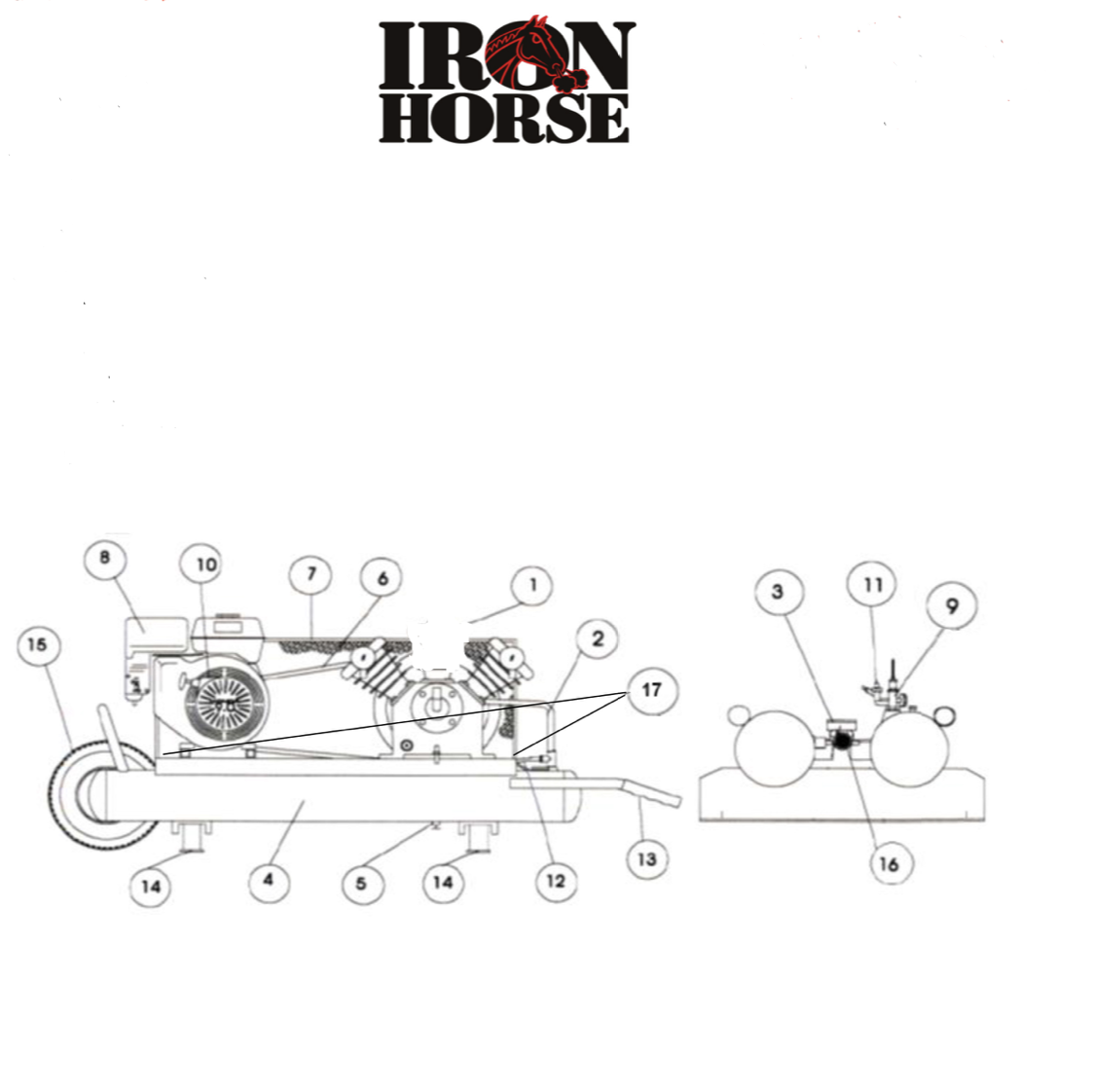

Item | Description | Product Code |
1 | Compressor w/ Flywheel | CC2065 |
2 | Discharge Tube | TU-23-AL |
3 | Pressure Gauge | PG200-2.5SI1/4 |
4 | Air Receiver (tank) | 10TT41X5-IH |
5 | Drain Cock -Assembly | 240-B (2) |
6 | V-Belt | A49 |
7 | Belt Guard | TT-GUARD |
8 | Engine | BS-12T4170118F8-C1040 |
9 | Unloader | NRP-A-95-125 |
10 | Pulley - Engine | MA38X3/4 |
11 | Safety Valve | PSV1/4-150 |
12 | Engine Control w/ Cable | TCP-48 |
13 | Handle Grip | TT-GRIP |
14 | Vibration Dampner | TT-FOOT |
15 | Pneumatic Wheel | TT-WHEEL-SQ-FF |
Axle | WA1001 | |
16 | Ball Valve | BV1/4MXF |
Eagle Compressor Oil | EAOIL10 |
Item | Description | Quantity | Part Number |
1 | Bolt for Cylinder Head | 8 | TB-30-01 |
2 | Washer for Head Bolt | 8 | TB-30-02 |
3 | Cylinder Head | 2 | TB-30-03 |
4 | Air Filter | 2 | TB-30-04 |
5 | Washer for Air Filter | 4 | TB-30-05 |
6 | Bolt for Air Filter | 4 | TB-30-06 |
7 | Head Gasket | 2 | TB-30-07 |
8 | Valve Seat | 4 | TB-30-08 |
9 | Aluminum Gasket | 2 | TB-30-09 |
10 | Valve Plate Reed | 4 | TB-30-10 |
11 | Valve Seat / Cylinder Gasket | 2 | TB-30-11 |
12 | Cylinder | 2 | TB-30-12 |
13 | Cylinder to Crankcase Nut | 8 | TB-30-13 |
14 | Cylinder-Crank Washer | 8 | TB-30-14 |
15 | Cylinder-Crank Bolt | 8 | TB-30-15 |
16 | Cylinder-Crank Gasket | 2 | TB-30-16 |
17 | Compression Rings | 4 | TB-30-17 |
18 | Ring Kit | 2 | TB-30-18 |
19 | Oil Control Ring | 2 | TB-30-19 |
20 | Piston | 2 | TB-30-20 |
21 | Piston Pin | 2 | TB-30-21 |
22 | Piston Pin Clip | 2 | TB-30-22 |
23 | Connecting Rod | 2 | TB-30-23 |
24 | Oil Splasher | 2 | TB-30-24 |
25 | Oil Splasher Bolt | 2 | TB-30-25 |
26 | 3-Way Connector Pipe | 2 | TB-30-26 |
27 | Exhaust Pipe Nut | 1 | TB-30-27 |
28 | Elbow Connector Pipe | 1 | TB-30-28 |
29 | Intercooler Tube | 1 | TB-30-29 |
30 | Bearing Cover Bolt | 1 | TB-30-30 |
31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
32 | Front Bearing Cover | 4 | TB-30-32 |
33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
34 | Oil Sight Glass | 1 | TB-30-34 |
35 | Oil Drain Plug | 1 | TB-30-35 |
36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
37 | Oil Fill Plug Washer | 1 | TB-30-37 |
38 | Oil Fill Plug | 1 | TB-30-38 |
39 | Crankcase | 1 | TB-30-39 |
40 | Front Bearing | 1 | TB-30-40 |
41 | Crankshaft | 1 | TB-30-41 |
42 | Rear Bearing | 1 | TB-30-42 |
43 | Crankshaft Oil Seal | 1 | TB-30-43 |
44 | Rear Bearing Cover Gasket | 1 | TB-30-44 |
45 | Rear Bearing Cover | 1 | TB-30-45 |
46 | Crankcase Breather and O Ring | 1 | TB-30-46 |
47 | Rear Cover Bolt Washer | 4 | TB-30-47 |
48 | Rear Cover Bolt | 4 | TB-30-48 |
49 | Flywheel | 1 | TB-30-49 |
50 | Flywheel Cover Washer | 1 | TB-30-50 |
51 | Flywheel Lock Washer | 1 | TB-30-51 |
52 | Flywheel Bolt | 1 | TB-30-52 |
53 | Air Filter Element | 2 | TB-10-43E |
A | Valve Repair Kit | 1 | TB-30-53 |
