Iron Horse 2 Gallon Hot Dog Air Compressor
Iron Horse 2 Gallon Hot Dog Air Compressor
IHHD1020F-NK2
Regular price
$299.95 USD
Regular price
$335.95 USD
Sale price
$299.95 USD
Unit price
per
Couldn't load pickup availability
-

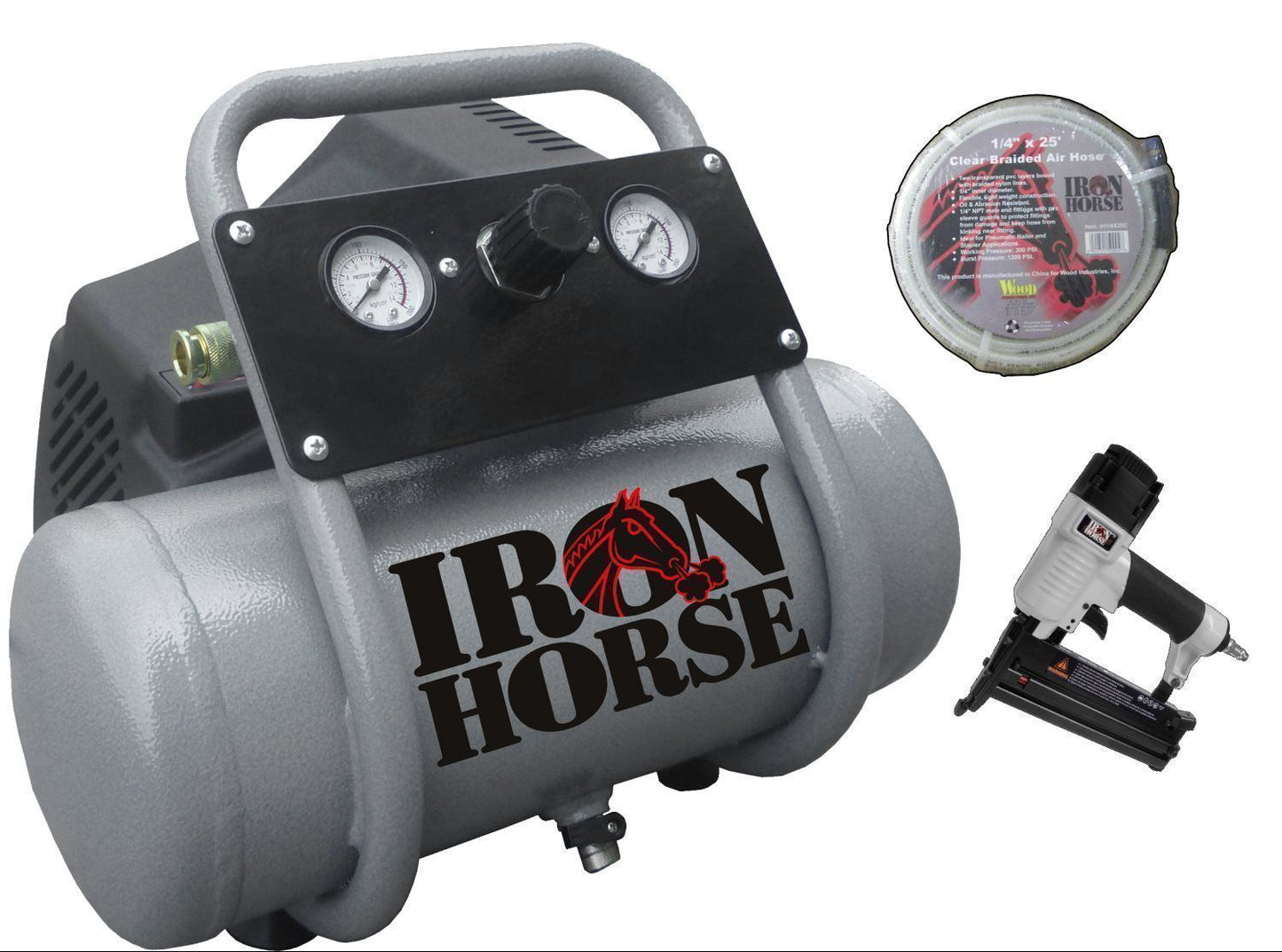

- The 1.5hp, 2 gals Hotdog Tank Combo Kit by Iron Horse is reliable,
- Durable, and powerful to provide all the air power you need,
- When you need it Oil-free operation for no mess
- High flow 2.3 CFM’s at 90 PSI, 3.3 CFM at 40 PSI
- Includes 2″ Stapler/Nailer & 25′
- PVC Braided Air Hose
- IHHD1020F-NK2. 1.5 hp, 2.3 CFM @ 90 psi.
- Max PSI 115
- 1.5HP 120 Volt/ 60 Hertz Universal Motor
- 2 gallon, includes 1/4″ x 25′ air hose and 2″
- combo stapler/nailer. Like new show sample
- .art Number IHHD1020F-NK
- Item Weight 28 pounds
- Product Dimensions 16 x 15 x 14 inches
- Item model number IHHD1020F-NK
- Size 1.5 hp/2 gallon
- Item Package Quantity 1
- Included Components Iron Horse 1.5HP, 2 gal Hotdog Tank
- TMI23595
| Part | Description | Quantity |
| 1 | Ball Valve | 1 |
| 2 | Tank | 1 |
| 3 | Elbow | 1 |
| 4 | Support | 4 |
| 5 | Screw | 4 |
| 6 | Stopper | 2 |
| 7 | Terminal | 2 |
| 8 | Wire | 1 |
| 9 | Terminal Cover | 2 |
| 10 | Wire | 1 |
| 11 | Socket | 1 |
| 12 | Terminal | 2 |
| 13 | Plug | 1 |
| 14 | Screw | 1 |
| 15 | Plain Washer | 1 |
| 16 | Fan | 1 |
| 17 | Connecting Rod | 1 |
| 18 | Crankshaft | 1 |
| 19 | Poly-Rib Belt | 1 |
| 20 | Bearing | 1 |
| 21 | Bearing | 2 |
| 22 | Cushion | 4 |
| 23 | Motor | 1 |
| 24 | Plain Washer | 4 |
| 25 | Screw | 4 |
| 26 | Plain Washer | 1 |
| 27 | Circlip | 1 |
| 28 | Fan Cover | 1 |
| 29 | Nut | 4 |
| 30 | Bolt | 4 |
| 31 | Gasket | 1 |
| 32 | Valve Plate | 2 |
| 33 | Valve Seat | 1 Set |
| 34 | Aluminum Gasket | 1 |
| 35 | Gasket | 1 |
| 36 | air Filter | 1 |
| 37 | Cylinder Head | 1 |
| 38 | Bolt | 4 |
| 39 | Spring Washer | 4 |
| 40 | Plain Washer | 4 |
| 41 | Elbow | 1 |
| 42 | Nut | 2 |
| 43 | Plain Washer | 2 |
| 44 | Aluminum Pipe | 1 |
| 45 | Bolt | 3 |
| 46 | Spring Washer | 3 |
| 47 | Gasket | 3 |
| 48 | Bolt | 1 |
| 49 | Connecting Rod Cover | 1 |
| 50 | Piston Ring | 1 |
| 51 | Cylinder Head | 1 |
| 52 | Ground Connection | 1 |
| 53 | Check Valve | 1 |
| 54 | Pressure Switch | 1 |
| 55 | Bolt | 10 |
| 56 | Plain Washer | 6 |
| 57 | Pipe | 1 |
| 58 | Safety Valve | 1 |
| 59 | Connector | 1 |
| 60 | Three-Way | 1 |
| 61 | Pressure Regulator | 1 |
| 62 | Face Board | 1 |
| 63 | Pressure Gauge | 2 |
| 64 | Bolt | 2 |
| 65 | Quick Coupler | 1 |
| 66 | Cover | 1 |
| 67 | Switch | 1 |
