Iron Horse Gas Air Compressor
Iron Horse Gas Air Compressor
IHTT55G
Regular price
$1,495.00 USD
Regular price
$1,995.00 USD
Sale price
$1,495.00 USD
Unit price
per
Couldn't load pickup availability
Shipping Charges Do Not Include Lift Gate And Residential Fees
Features
- CFM / PSI: 11 CFM @ 90 PSI
- HorsePower: 5.5
- Max Rated PSI: 150
- Air Tank Capacity (Gal): 10
- Honda GX160 Engine
- Motor RPM: 3450
- Bare Comp. RPM: 1250
- Amp Draw: Gas
- Unloader Valve: 95-125
- V Twin Cast Iron Pump
- 10" Pneumatic Tire with Steel Rim Dual Ball Bearings
- Fully Enclosed Metal Belt Guard
- Oil Sight Glass
- Easy Start Valve
- 1 Year Compressor Warranty
- 3 Year Engine Warranty
- TMI113500
DIM: 50" x 18" x 24"
WEIGHT: 242 LBS
* Shipping Dimensions- 4pcs 798# 45x48x76

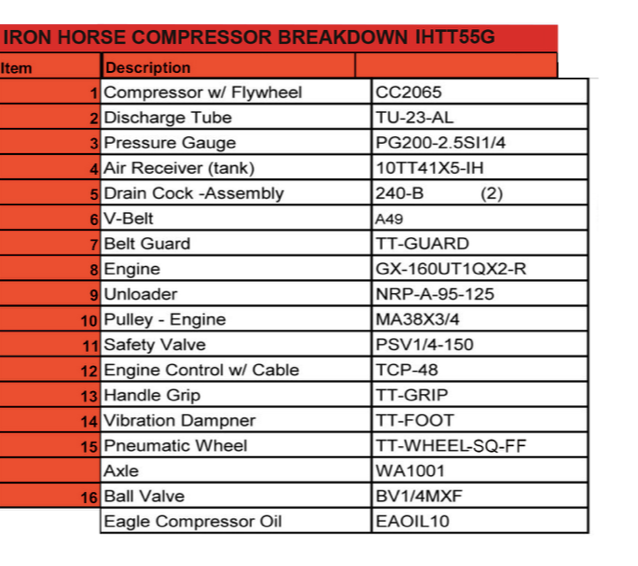

| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | CC2065 |
| 2 | Discharge Tube | TU-23-AL |
| 3 | Pressure Gauge | PG200-2.5SI1/4 |
| 4 | Air Receiver (tank) | 10TT41X5-IH |
| 5 | Drain Cock -Assembly | 240-B (2) |
| 6 | V-Belt | A49 |
| 7 | Belt Guard | TT-GUARD |
| 8 | Engine | GX-160UT1QX2-R |
| 9 | Unloader | NRP-A-95-125 |
| 10 | Pulley - Engine | MA38X3/4 |
| 11 | Safety Valve | PSV1/4-150 |
| 12 | Engine Control w/ Cable | TCP-48 |
| 13 | Handle Grip | TT-GRIP |
| 14 | Vibration Dampner | TT-FOOT |
| 15 | Pneumatic Wheel | TT-WHEEL-SQ-FF |
| Axle | WA1001 | |
| 16 | Ball Valve | BV1/4MXF |
| Eagle Compressor Oil | EAOIL10 |
| Item | Description | Quantity | Part Number |
| 1 | Bolt for Cylinder Head | 8 | TB-30-01 |
| 2 | Washer for Head Bolt | 8 | TB-30-02 |
| 3 | Cylinder Head | 2 | TB-30-03 |
| 4 | Air Filter | 2 | TB-30-04 |
| 5 | Washer for Air Filter | 4 | TB-30-05 |
| 6 | Bolt for Air Filter | 4 | TB-30-06 |
| 7 | Head Gasket | 2 | TB-30-07 |
| 8 | Valve Seat | 4 | TB-30-08 |
| 9 | Aluminum Gasket | 2 | TB-30-09 |
| 10 | Valve Plate Reed | 4 | TB-30-10 |
| 11 | Valve Seat / Cylinder Gasket | 2 | TB-30-11 |
| 12 | Cylinder | 2 | TB-30-12 |
| 13 | Cylinder to Crankcase Nut | 8 | TB-30-13 |
| 14 | Cylinder-Crank Washer | 8 | TB-30-14 |
| 15 | Cylinder-Crank Bolt | 8 | TB-30-15 |
| 16 | Cylinder-Crank Gasket | 2 | TB-30-16 |
| 17 | Compression Rings | 4 | TB-30-17 |
| 18 | Ring Kit | 2 | TB-30-18 |
| 19 | Oil Control Ring | 2 | TB-30-19 |
| 20 | Piston | 2 | TB-30-20 |
| 21 | Piston Pin | 2 | TB-30-21 |
| 22 | Piston Pin Clip | 2 | TB-30-22 |
| 23 | Connecting Rod | 2 | TB-30-23 |
| 24 | Oil Splasher | 2 | TB-30-24 |
| 25 | Oil Splasher Bolt | 2 | TB-30-25 |
| 26 | 3-Way Connector Pipe | 2 | TB-30-26 |
| 27 | Exhaust Pipe Nut | 1 | TB-30-27 |
| 28 | Elbow Connector Pipe | 1 | TB-30-28 |
| 29 | Intercooler Tube | 1 | TB-30-29 |
| 30 | Bearing Cover Bolt | 1 | TB-30-30 |
| 31 | Bearing Cover Bolt Washer | 4 | TB-30-31 |
| 32 | Front Bearing Cover | 4 | TB-30-32 |
| 33 | Oil Sight Glass Gasket | 1 | TB-30-33 |
| 34 | Oil Sight Glass | 1 | TB-30-34 |
| 35 | Oil Drain Plug | 1 | TB-30-35 |
| 36 | Front Bearing Cover Gasket | 1 | TB-30-36 |
| 37 | Oil Fill Plug Washer | 1 | TB-30-37 |
| 38 | Oil Fill Plug | 1 | TB-30-38 |
| 39 | Crankcase | 1 | TB-30-39 |
| 40 | Front Bearing | 1 | TB-30-40 |
| 41 | Crankshaft | 1 | TB-30-41 |
| 42 | Rear Bearing | 1 | TB-30-42 |
| 43 | Crankshaft Oil Seal | 1 | TB-30-43 |
| 44 | Rear Bearing Cover Gasket | 1 | TB-30-44 |
| 45 | Rear Bearing Cover | 1 | TB-30-45 |
| 46 | Crankcase Breather and O Ring | 1 | TB-30-46 |
| 47 | Rear Cover Bolt Washer | 4 | TB-30-47 |
| 48 | Rear Cover Bolt | 4 | TB-30-48 |
| 49 | Flywheel | 1 | TB-30-49 |
| 50 | Flywheel Cover Washer | 1 | TB-30-50 |
| 51 | Flywheel Lock Washer | 1 | TB-30-51 |
| 52 | Flywheel Bolt | 1 | TB-30-52 |
| 53 | Air Filter Element | 2 | TB-10-43E |
| A | Valve Repair Kit | 1 | TB-30-53 |
