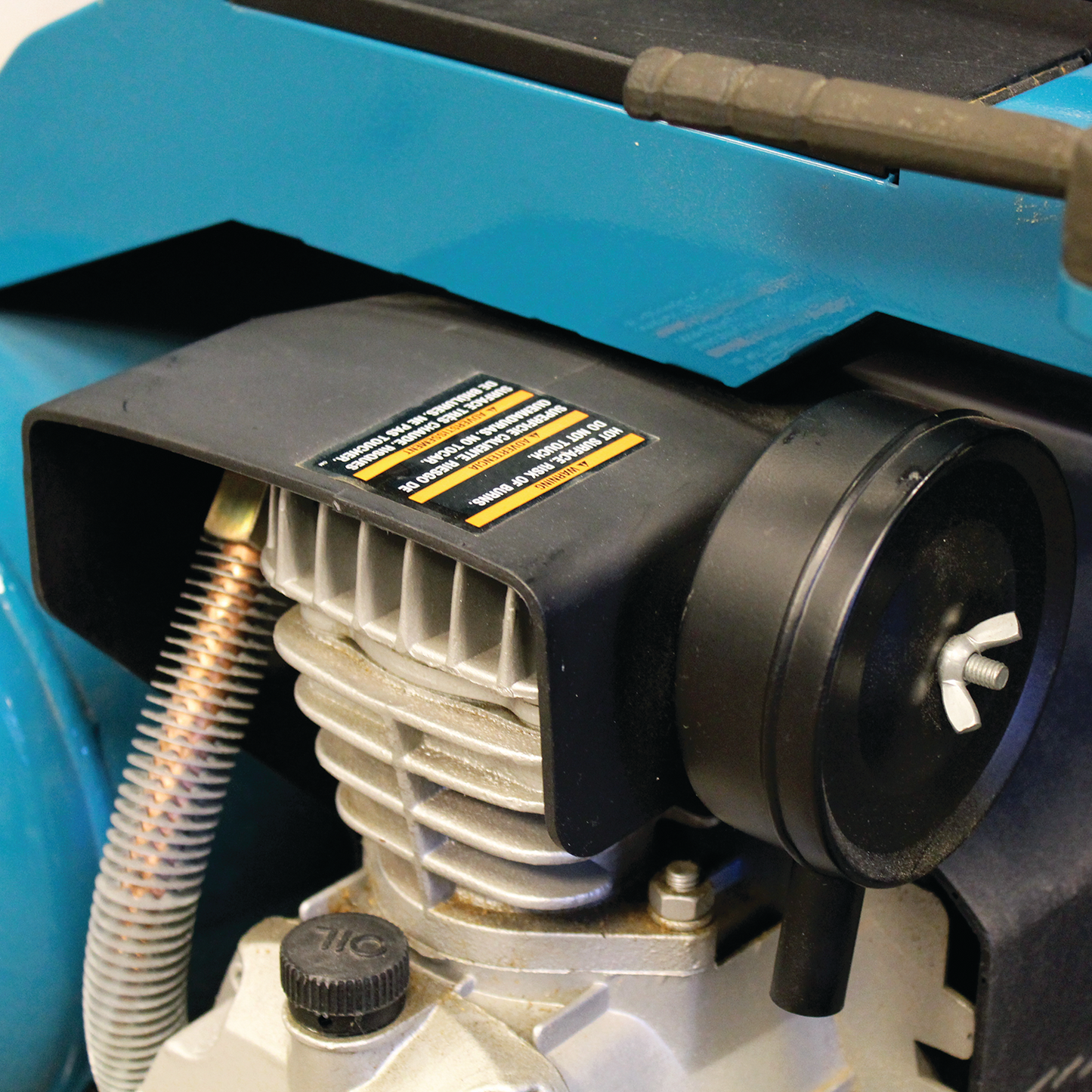

Makita 3.0 HP Air Compressor Reconditioned

Makita 3.0 HP Air Compressor Reconditioned

MAC5200-B/C

$299.99 USD
$499.99 USD $299.99 USD
Sale Sold out
  • Cast iron pump with Big Bore cylinder and piston is engineered to provide faster recovery time for improved performance
  • Powerful 3.0 HP* motor produces 6.5 CFM at 90 PSI for increased productivity
  • Pump is oil-lubricated for cooler running temperatures and reduced wear
  • Durable cast iron cylinder reduces wear and increases pump life; removable for easy maintenance
  • 1 year warranty back to Makita
  • POWER : 6.5 CFM @ 90PSI; Powerful enough to run two framing nailers
  • PERFORMANCE : Cast iron cylinder with greater bore and stroke for maximum performance
  • DURABILITY : Roll cage construction for extra protection to pump and motor assembly
  • CONVENIENCE : Oil drain and oil sight glass conveniently located for easy access and maintenance
  • TMI25000

Item Description Part Number Quantity
1 Cylinder Head 101001-E 1
2 Valve Seat to Head Gasket 211001-E 1
3 Inlet & Exhaust Valve Seat 104005-E 2
4 Inlet & Exhaust Valve Seat Gasket 212006-E 1
5 Inlet & Exhaust Valve Plate 125004-E 2
6 Elbow 151209-E 2
8 Bolt for Console 365003-E 4
9 Cylinder Head Bolt 352087-E 4
10 Spring Washer for Head Bolt 382011-E 4
11 Exhaust Elbow 151404-E 1
12 Discharge Tube Assembly 230092S-E 1
13 Unloading Tube 151001-E 3
14 Nipple 441025-E 1
15 Valve Seat to Cylinder Gasket 213009-E 1
16 Cylinder 201013-E 1
17 Piston 203002-E 1
18 Compression Ring 206002-E 2
19 Oil Control Ring 207002-E 1
20 Piston Pin 204002-E 1
21 Piston Pin Snap Ring 205001-E 2
22 Cylinder to Crankcase Gasket 214001-E 1
23 Set Nut (Cylinder to Crankcase) 371005-E 2
24 Spring Washer (Cylinder to Crankcase) 382005-E 2
25 Double Head Screw 358001-E 2
26 Retainer Cap for Wheel 403003-E 2
27 Crankcase Cover Gasket 215001-E 1
28 Crankshaft 302001-E 1
29 Crankcase Cover Gasket 304014-E 1
30 Connecting Rod 316001-E 1
31 Oil Sight Gauge 321001-E 1
32 Oil Draining Plug 360001-E 1
33 Motor Cover 433011-E 1
34 Motor / Crankcase Cover Bolt 352071-E 9
35 Air Filter Assembly 170013-E 1
36 Oil Filler / Crankcase Breather 324003-E 1
37 Electric Motor / Crankcase 251209-E 1
38 Wheel 402007-E 2
39 Oil Gauge Gasket 217001-E 1
40 Air Tank with Frame 401130-E 1
41 Pressure Gauge 411029-E 2
42 Regulator 410029-E 1
43 Rubber Handle 435016-E 3
44 Tank Foot Assembly 434006-E 2
45 Quick Coupler (1/4") 447013-E 2
46 Safety Valve (1/4") 407001-E 1
47 Drain Cock 413008-E 1
48 Check Valve 409004-E 1
49 Power Cord 452015-E 1
50 Pressure switch 412025-E 1
51 Regulator Nipple 441001-E 1
52 Unloading Tube Assembly (1/4") 228070-E 1
53 Motor Fan 431010-E 1
54 Unloading Elbow 151002-E 1
55 Plug 360002-E 2
56 Manifold Block 421006-E 1
57 Rubber Cup 439008-E 6
58 Tool Box Lock 435015-E 1
59 Folding Handle Lock Set (L&R) 435010-E 1
60 Tool Box 480039-E 1
61 Wiring Harness (Motor Pr. Switch) 453076-E 1
62 Air Filter (Element Only) 171006-E 1
63 Ring Kit (#18 and 19) RK5200-E 1
64 Spring Washer for Motor Cover 382004-E 4
65 Gasket Kit (#2, 4, 15, and 22) GK5200-E 1
66 Strain Relief Clip 457002-E 1
67 Folding Handle 435006-E 1
68 Bolt for Folding Handle Lock 351074-E 2
69 Start Capacitor 460008-E 1
70 Run Capacitor 462009-E 1
71 Overload Switch 458003-E 1
72 Centrifugal Switch 459002-E 1
73 Capacitor Cover 455015-E 2
74 Crankshaft Bolt 352106-E 1
75 Base Plate 488005-E 1
76 Tube 3/8" 247110 1
77 Tube 1/4" 240050 2
78 Bolt 353145-E 2
Compressor Oil (0.3L) 181122-A 1
Carton 471151-E 1
