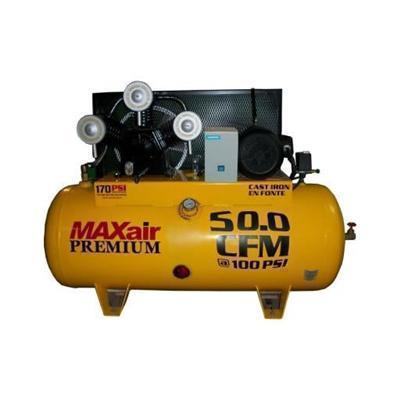

MaxAir 10 HP 120 Gallon Air Compressor
MaxAir 10 HP 120 Gallon Air Compressor
C101120H1-MS208-MAP
Regular price
$5,515.00 USD
Regular price
$6,750.00 USD
Sale price
$5,515.00 USD
Unit price
per
Couldn't load pickup availability
THIS ITEM SHIPS TRUCKLINE
Features
- CFM / PSI: 50.0 CFM @ 100 PSI
- HorsePower: 10 with Mag Starter
- Max Rated PSI: 170
- Amperage: 30
- Single Phase
- Air Tank Capacity (Gal): 120
- Electric Motor: 208/230V
- V Style Cast Iron Single Stage Pump
- Cast Aluminum Pump
- Steel Tank
- CSA Listed
- Tank Pressure Gauge
- 2 Year Limited Warranty
- TMI511500
DIM: 72" x 26" x 52"
WEIGHT: 770 LBS
Shipping Dimensions: 838# 75x36x57
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | PT10AHP |
| 2 | Discharge Tube (2.5ft) ASSY | TU-1-23/90/90 |
| Discharge Elbow | BHC T26 1 | |
| 3 | Pressure Gauge | PGLF200-2.5BM1/4 |
| 4 | Outlet Valve | BV1MF |
| 5 | Air Receiver (tank) | 120HE24X68-Y |
| 6 | Drain Cock -Assembly | OSB WO DC ASSEMBLY |
| 7 | V-Belt | B89 |
| 8 | Belt Guard | BG120GAL |
| 9 | Motor - 1 Phase, 208/230V | EM10.0-18-10 |
| Mag Starter 7.5 HP 208/240V | 1068MS | |
| 10 | Check Valve | P1010S-T |
| 11 | Pressure Switch | 21UCBDB-170 |
| 12 | Pulley - Motor | 2B-80 |
| 13 | Hub or Bushing | SK13/8 |
| 14 | Unloader Tube | TU-1/4-CU |
| **Fittings Required for TU-1/4CU | 68-4A | |
| 15 | Safety Valve | PSV1/4-200 |
| Eagle Compressor Oil | EAOIL10 |
| Item | Description | Quantity Req. | Part Number |
| 1 | Intake Filter Assembly | 3 | 51124-5600 |
| 2 | Cylinder Head | 3 | 52133-0101 |
| 3 | Lift Limiter - Discharge Valve Plate | 12 | 51121-3102 |
| 4 | Valve Seat | 3 | 52133-2101 |
| 5 | Valve Seat to Head Gasket | 3 | 52133-2105 |
| 6 | Discharge Valve Plate | 12 | 51121-2103 |
| 7 | Intake Valve Plate | 3 | 52133-2103 |
| 8 | Valve Seat to Cylinder Gasket | 3 | 52133-2104 |
| 9 | Piston | 3 | 52133-5101 |
| 10 | Piston Pin C/W Snap Rings | 3 | 52133-5112 |
| 11 | Piston Pin Bushing | N/A | N/A |
| 12 | Connecting Rod C/W Dipper | 3 | 52133-5120 |
| 13 | Connecting Rod Bearing (Pair) | 2 | 51133-5109 |
| 14 | Cylinder | 3 | 52133-4101 |
| 15 | Oil Filler Cap | 1 | 51124-4719 |
| 16 | Cylinder to Crankcase Gasket | 3 | 52133-4103 |
| 17 | Oil Sight Class C/W Gasket | 1 | 51124-4770 |
| 18 | Crankcase | 1 | 52174-4701 |
| 19 | Crankshaft | 1 | 52174-4601 |
| 20 | Front Bearing | 1 | 83501-6309 |
| 21 | Rear Bearing | 1 | 83501-6308 |
| 22 | Crankcase to Rear Bearing Housing Gasket | 1 | 52174-4704 |
| 23 | Rear Bearing Housing | 1 | 52174-4703 |
| 24 | Oil Seal | 1 | 52174-4708 |
| 25 | Crankcase breather | 1 | 51111-4761 |
| 26 | Flywheel C/W Fasteners | 1 | 52174-6601 |
| 27 | Front Bearing Housing | N/A | N/A |
| 28 | Crankcase to Front Bearing Housing Gasket | N/A | N/A |
| 29 | Connecting (Interstage) Tubing | 2 | 52134-7710 |
| MISC | 1/4" Street Elbow (Oil Drain) | 1 | STREL1/4 |
| MISC | Rear Bearing Cover Gasket | 1 | 51134-4707 |
| MISC | Rear Bearing Cover | 1 | 51134-4706 |
| Eagle Oil (2900ml or 100oz) | 1 | EAOIL10 |
| A | Intake Filter Element Kit Includes: | 3 | 101000-310 |
| 1x Intake Filter Element | |||
| B | Valve Repair Kit Includes: | 3 | 101000-195 |
| Valve Seat to Head Gasket (Item 5) | |||
| 2x Outlet Valve Plates (Item 6) | |||
| Intake Valve Plate (Item 7) | |||
| 6x Valve Plate Screws | |||
| Valve Seat to Cylinder Gasket (Item 8) | |||
| C | Ring Repair Kit Includes: | 3 | 101000-295 |
| Valve Seat to Head Gasket (Item 5) | |||
| Valve Seat to Cylinder Gasket (Item 8) | |||
| 2x Compression Rings | |||
| 1x Oil Control Ring | |||
| Cylinder to Crankcase Gasket (Item 16) | |||
| D | Valve Plate Assembly (Not Shown) | 3 | 52133-2100 |
