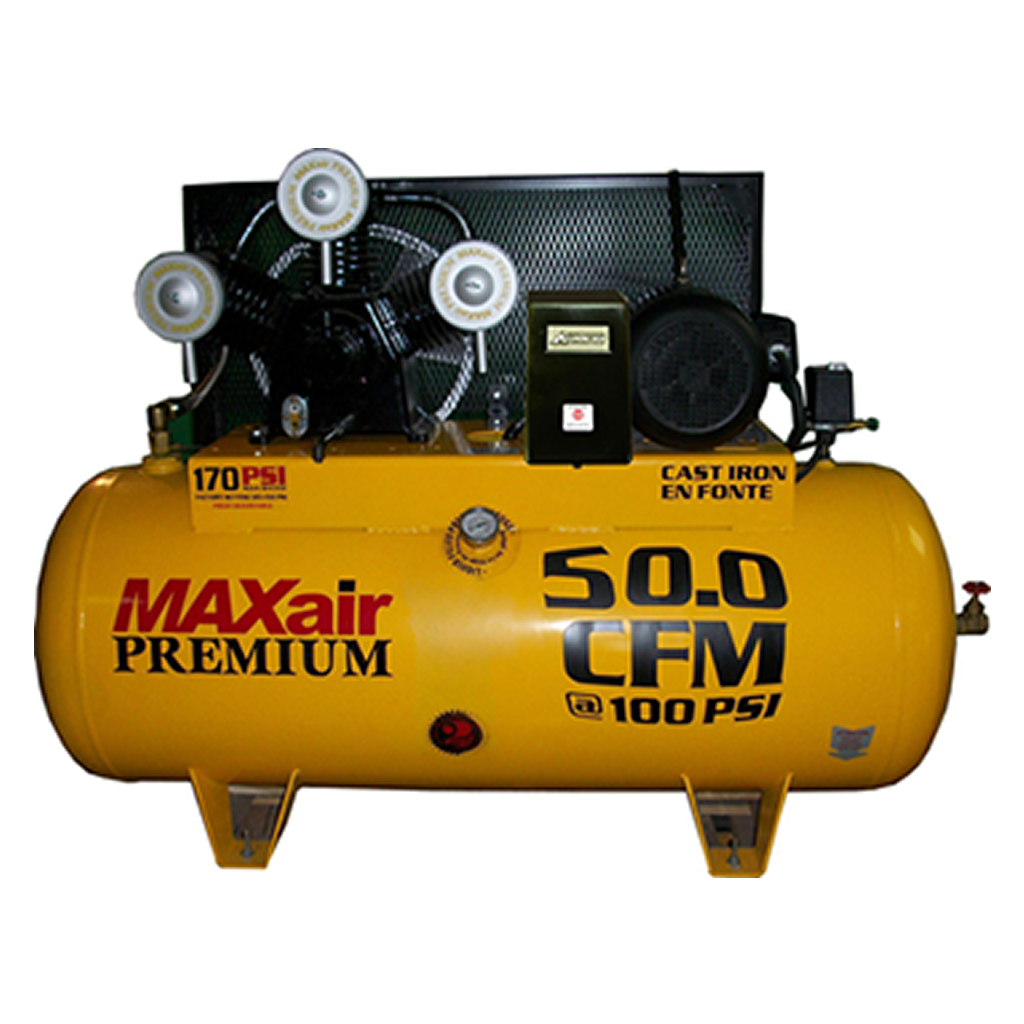

MaxAir 10 HP 120 Gallon Air Compressor

MaxAir 10 HP 120 Gallon Air Compressor

C103120H1-MS230-MAP

$4,835.00 USD
$7,995.95 USD $4,835.00 USD
Sale Sold out

THIS ITEM SHIPS TRUCKLINE

A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!

Features:

  • Rugged compressor with cast iron cylinders
  • “V” style design minimizes vibration, improves cooling, and extends compressor life
  • Individual and removable cylinders for smoother, cooler operation and easy maintenance
  • Heavy duty pressure switch with On/Off control
  • Magnetic Starter Included
  • Industrial 184 Frame, 1750 RPM, Thermally protected, 10 HP, 230 Volt Electric Motor, 3 Phase
  • 120 Gallon ASME registered tank with 200 PSI rating
  • Premium air filters with “auto drop” replacement feature
  • Convenient extended oil drain, and conveniently located ball valve drain on front of tank for draining moisture from tank
  • Easy view oil sight gauge
  • High efficiency reed valves for maximum performance
  • Efficient heat removal from fly wheel for cooler running and longer life
  • Sturdy metal belt guard
  • Heavy duty 3/4” ball valve included
  • CSA approved
  • 50 CFM @ 100 PSI
  • 170 Max Rated PSI
  • TMI3735000
  • 73 x 27 x 50
  • 741 LBS

Item Description Product Code
1 Compressor w/ Flywheel PT10AHP
2 Discharge Tube (2.5ft) ASSY TU-1-23/45/00
3 Pressure Gauge PGLF200-2.5BM1/4
4 Outlet Valve BV1MF
5 Air Receiver (tank) 120HE24X68-Y
6 Drain Cock -Assembly OSB WO DC ASSEMBLY
7 V-Belt B89
8 Belt Guard BG120GAL
9 Motor - 1 Phase, 208/230V EM10.0-18-30
  Mag Starter 7.5 HP 208/240V 1066MS
10 Check Valve P1010S-T
11 Pressure Switch 21UCBDB-170
12 Pulley - Motor 2B9.0PD
13 Hub or Bushing SK13/8
14 Unloader Tube  TU-1/4-CU
  **Fittings Required for TU-1/4CU 68-4A
15 Safety Valve PSV1/4-200
Eagle Compressor Oil EAOIL10

Item Description Quantity Req. Part Number
1 Intake Filter Assembly 3 51124-5600
2 Cylinder Head 3 52133-0101
3 Lift Limiter - Discharge Valve Plate 12 51121-3102
4 Valve Seat 3 52133-2101
5 Valve Seat to Head Gasket 3 52133-2105
6 Discharge Valve Plate 12 51121-2103
7 Intake Valve Plate 3 52133-2103
8 Valve Seat to Cylinder Gasket 3 52133-2104
9 Piston 3 52133-5101
10 Piston Pin C/W Snap Rings 3 52133-5112
11 Piston Pin Bushing N/A N/A
12 Connecting Rod C/W Dipper 3 52133-5120
13 Connecting Rod Bearing (Pair) 2 51133-5109
14 Cylinder 3 52133-4101
15 Oil Filler Cap 1 51124-4719
16 Cylinder to Crankcase Gasket 3 52133-4103
17 Oil Sight Class C/W Gasket 1 51124-4770
18 Crankcase 1 52174-4701
19 Crankshaft 1 52174-4601
20 Front Bearing 1 83501-6309
21 Rear Bearing 1 83501-6308
22 Crankcase to Rear Bearing Housing Gasket 1 52174-4704
23 Rear Bearing Housing 1 52174-4703
24 Oil Seal 1 52174-4708
25 Crankcase breather 1 51111-4761
26 Flywheel C/W Fasteners 1 52174-6601
27 Front Bearing Housing N/A N/A
28 Crankcase to Front Bearing Housing Gasket N/A N/A
29 Connecting (Interstage) Tubing 2 52134-7710
MISC 1/4" Street Elbow (Oil Drain) 1 STREL1/4
MISC Rear Bearing Cover Gasket 1 51134-4707
MISC Rear Bearing Cover 1 51134-4706
Eagle Oil (2900ml or 100oz) 1 EAOIL10
A Intake Filter Element Kit Includes: 3 101000-310
1x Intake Filter Element
B Valve Repair Kit Includes: 3 101000-195
Valve Seat to Head Gasket (Item 5)
2x Outlet Valve Plates (Item 6)
Intake Valve Plate (Item 7)
6x Valve Plate Screws
Valve Seat to Cylinder Gasket (Item 8)
C Ring Repair Kit Includes: 3 101000-295
Valve Seat to Head Gasket (Item 5)
Valve Seat to Cylinder Gasket (Item 8)
2x Compression Rings
1x Oil Control Ring
Cylinder to Crankcase Gasket (Item 16)
D Valve Plate Assembly (Not Shown) 3 52133-2100
