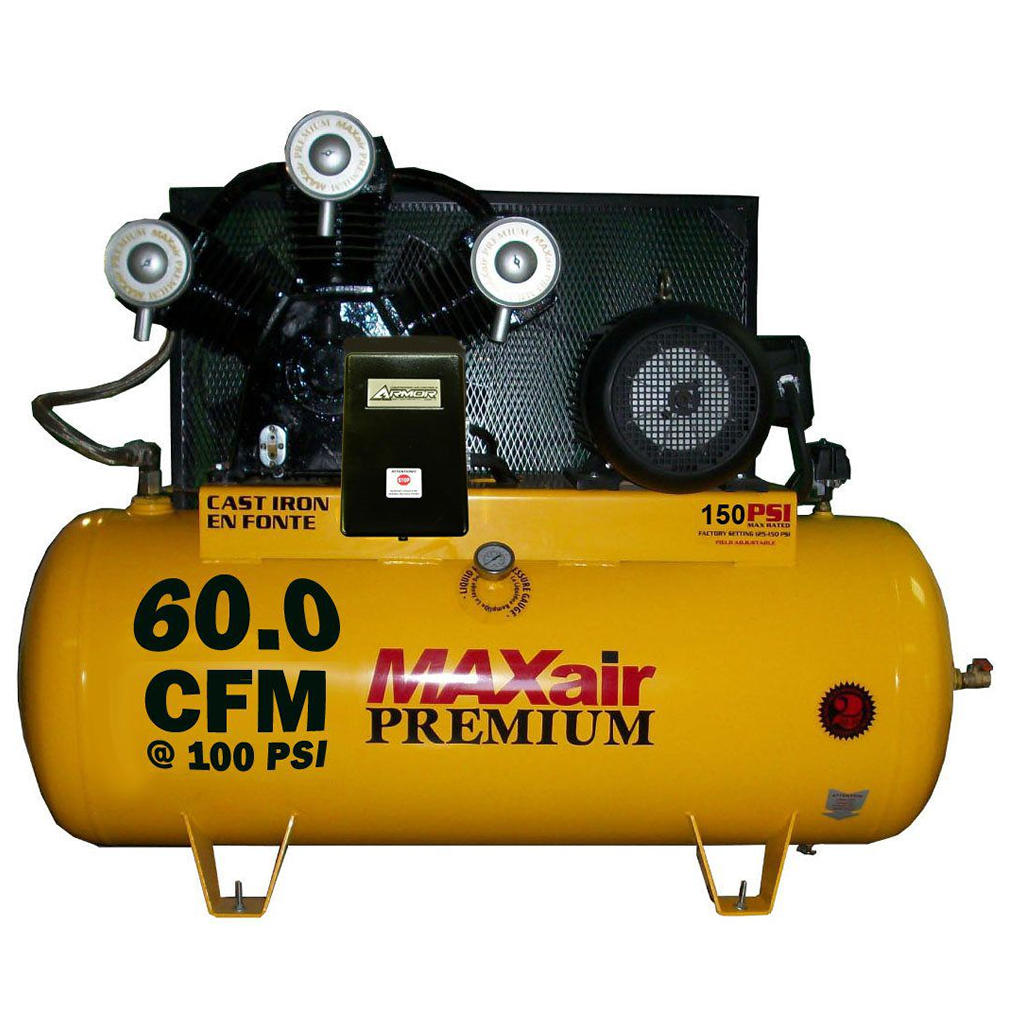

MaxAir 15 HP 120 Gallon Air Compressor
MaxAir 15 HP 120 Gallon Air Compressor
C153120H1-MS208-MAP
Regular price
$5,827.20 USD
Regular price
$11,000.00 USD
Sale price
$5,827.20 USD
Unit price
per
Couldn't load pickup availability
THIS ITEM SHIPS TRUCKLINE
A LIFTGATE & RESIDENTIAL FEE MAY STILL BE CHARGED IN ADDITION TO SHIPPING COST!
Features:
- Rugged compressor with cast iron cylinders
- “V” style design minimizes vibration, improves cooling, and extends compressor life
- Individual and removable cylinders for smoother, cooler operation and easy maintenance
- Heavy duty pressure switch with On/Off control
- Magnetic Starter Included
- Industrial 184 Frame, 1750 RPM, Thermally protected, 15 HP, 208 Volt Electric Motor, 3 Phase
- 120 Gallon ASME registered tank with 200 PSI rating
- Premium air filters with “auto drop” replacement feature
- Convenient extended oil drain, and conveniently located ball valve drain on front of tank for draining moisture from tank
- Easy view oil sight gauge
- High efficiency reed valves for maximum performance
- Efficient heat removal from fly wheel for cooler running and longer life
- Sturdy metal belt guard
- Heavy duty 3/4” ball valve included
- CSA approved
- 60 CFM @ 100 PSI
- 150 Max Rated PSI
- 73 x 27 x 56.5
- 1,150 LBS
- 2 Year Limited Warranty
- TMI480000
| Item | Description | Product Code |
| 1 | Compressor w/ Flywheel | PT15 |
| 2 | Discharge Tube (2.5ft) ASSY | TU-1-23/45/00 |
| Discharge Elbow | BHC T25 1 | |
| 3 | Pressure Gauge | PGLF200-2.5BM1/4 |
| 4 | Outlet Valve | BV1/4MXF |
| 5 | Air Receiver (tank) | 120HE24X68-Y |
| 6 | Drain Cock -Assembly | OSB WO DC ASSEMBLY |
| 7 | V-Belt | B72 |
| 8 | Belt Guard | BG120GAL |
| 9 | Motor - 1 Phase, 208/230V | EM15.0-18-3O |
| Mag Starter 7.5 HP 208/240V | 1064MS | |
| 10 | Check Valve | P1010S-T |
| 11 | Pressure Switch | 21UCBDB-170 |
| 12 | Pulley - Motor | 4B5.0 |
| 13 | Hub or Bushing | SD5/8 |
| 14 | Unloader Tube | TU-1/4-CU |
| **Fittings Required for TU-1/4CU | 68-4A | |
| 15 | Safety Valve | PSV1/4-200 |
| Eagle Compressor Oil | EAOIL10 |
| Item # | Part # | Quantity Req. | Description |
| 1 | 51135-0100 | 3 | Cylinder Head Assembly |
| 2 | 51135-0101 | 3 | Cylinder Head |
| 3 | 81508-031042 | 24 | Stud |
| 4 | 82502-030010 | 24 | Nut |
| 5 | 51135-0102 | 2 | Cylinder Head Packing |
| 6 | 81501-031030 | 24 | In & Out Push Cover Lock Bolt |
| 7 | 51135-0111 | 6 | In & Outlet Valve Seat Gasket |
| 8 | 51135-0115 | 3 | Inlet Valve Push Cover |
| 9 | 51135-0122 | 3 | Unloading Piston |
| 10 | 83602-710065 | 3 | O-Ring G#65 (Inlet Using) |
| 11 | 83602-770065 | 3 | O-Ring G#65 (Outlet Using) |
| 12 | 51135-0145 | 3 | Outlet Valve Push Cover |
| 13 | 51135-2100 | 3 | Inlet Valve Assembly |
| 14 | 51135-3100 | 3 | Outlet Valve Assembly |
| 15 | 51135-2103 | 9 | In & Outlet Valve Plate |
| 16 | 51135-2107 | 6 | Inlet Valve Spring |
| 17 | 51135-3107 | 6 | Outlet Valve Spring |
| 18 | 51135-4101 | 3 | Cylinder |
| 19 | 51135-4103 | 3 | Cylinder & Case Packing |
| 20 | 51135-5101 | 3 | Piston |
| 21 | 51135-5112 | 3 | Piston Pin w/ Snap Ring |
| 22 | 51135-5107 | 6 | Piston Snap Ring |
| 23 | 51135-5120 | 3 | Connecting Rod Assembly W/ Dipper |
| 24 | 51135-5108 | 3 | Connecting Rod Piston Bush |
| 25 | 51135-5109 | 6 | Connecting Rod Crankpin Metal |
| 26 | 51135-4601 | 1 | Crankshaft |
| 27 | 51135-5103 | 6 | Compression Ring |
| 28 | 51135-5105 | 6 | Oil Control Ring |
| 29 | 51135-4603 | 2 | Crankshaft Counter Weight |
| 30 | 81501-031690 | 2 | Counter Weight Mounting Bolt |
| 31 | 51135-4683 | 2 | Counter Weight Lock Washer |
| 32 | 51135-5128 | 2 | Oil Splash Dipper (Angle) |
| 33 | 51135-5127 | 1 | Oil Splash Dipper (Straight) |
| 34 | 80112-000404 | 1 | Crankcase Oil Plug |
| 35 | 51135-4701 | 1 | Crankcase |
| 36 | 81508-031243 | 12 | Stud |
| 37 | 82502-030012 | 12 | Nut |
| 38 | 51135-4703 | 1 | Front Bearing Cover |
| 39 | 81501-031030 | 10 | Front & Rear Cover Lock Bolt |
| 40 | 51135-4704 | 1 | Front Bearing Cover Packing |
| 41 | 51134-4706 | 1 | Rear Bearing Cover |
| 42 | 51134-4707 | 1 | Rear Bearing Cover Packing |
| 43 | 51134-4708 | 1 | Front Oil Seal |
| 44 | 83502-30310 | 1 | Front Bearing |
| 45 | 83502-32210 | 1 | Rear Bearing |
| 46 | 51175-7710 | 1 | Comp. Body Discharge Piping Assembly #A |
| 47 | 51124-7701 | 1 | Outlet Pipe Joint #A |
| 48 | 51134-7702 | 1 | Outlet Pipe Joint #B |
| 49 | 51134-7703 | 1 | Outlet Pipe Joint #C |
| 50 | 69922-030808 | 1 | Outlet Pipe Joint Nut |
| 51 | 51124-4760 | 1 | Breather Cap |
| 52 | 51124-4770 | 1 | Oil Level Gauge Assembly w/ Gasket |
| 53 | 51124-4774 | 1 | Oil Level Gauge Protect Shell |
| 54 | 51124-5600 | 3 | Air Strainer Assembly |
| 55 | 51124-5614 | 3 | Air Strainer Filter |
| 56 | 51124-4719 | 1 | Crankcase Oil Cap |
| 57 | 51135-6601 | 1 | Compressor Pulley |
| 58 | 51135-6601-1 | 1 | Pulley Fan |
| 59 | 81501-030825 | 6 | Pulley Fan Lock Bolt |
| 60 | 83703-001045 | 1 | V-Pulley Key |
| 61 | 51124-6621 | 1 | Comp. Pulley Thrust Washer |
| 62 | 81501-031245 | 1 | Comp. Pulley Thrust Bolt |
